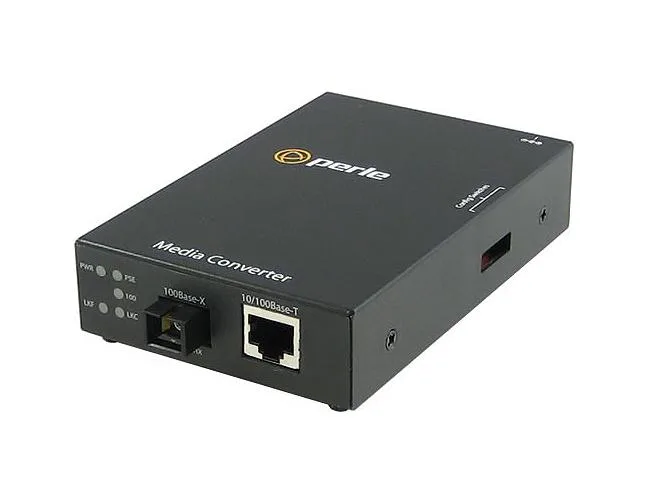

Compact metal media converter with RJ-45 and SC fiber ports

Perle

Perle 05090240 S-110P-S1Sc20Uxt Media Converter

SKU CH-X3N8-9Q6FS

Converts 10/100Base-TX to 100Base-BX single-strand fiber up to 20 km with PoE power sourcing and extended temperature range

  • TypeData & Communication
  • SizeMaximum frame size of 2048 bytes
  • Converts copper to single-strand fiber up to 20 km
  • Powers remote devices through PoE on RJ-45 port
  • Operates in extended temperature range for harsh sites
  • Single-mode SC connector uses 1310 nm TX and 1550 nm RX
  • Handles frames up to 2048 bytes for jumbo traffic

Industrial media converter for extended

The Perle S-110P-S1Sc20Uxt converts 10/100Base-TX copper signals to 100Base-BX single-strand fibre over distances up to 20 km. It operates across an extended temperature range and accepts power through a terminal block connector for external sources. The unit supports PoE power sourcing on the RJ-45 port for connected devices. Maximum frame size is 2048 bytes.

Passive cooling suits quiet industrial cabinets

No fans or moving parts are present so the converter runs silently in enclosures or control panels. Power draw is limited to the PoE sourcing budget and the external supply connected to the terminal block. Heat dissipation relies on the metal housing and ambient airflow within the cabinet. Extended temperature rating allows operation where active cooling would fail.

Terminal block and single SC simplify field wiring

The terminal block connector lets installers use standard multi-core cable without specialised plugs or adapters. Single-strand SC fibre uses one 1310 nm TX and 1550 nm RX wavelength pair, halving the fibre count compared to duplex links. PoE sourcing on the copper port removes the need for separate power injectors at remote endpoints. No management software or configuration utility is bundled.

Highlights

  • Converts copper to single-strand fiber up to 20 km
  • Powers remote devices through PoE on RJ-45 port
  • Operates in extended temperature range for harsh sites
  • Single-mode SC connector uses 1310 nm TX and 1550 nm RX
  • Handles frames up to 2048 bytes for jumbo traffic

Specifications

BrandPERLE SYSTEMS
TypeData & Communication
SizeMaximum frame size of 2048 bytes

Questions about this item

How do I install the Perle 05090240 S-110P-S1Sc20Uxt Media Converter and what step is commonly missed?

Connect the RJ-45 copper link up to 100 m or 328 ft and the SC single-mode fibre up to 20 km or 12.4 miles, then power the unit via the terminal block; the step often missed is providing an external power source for the terminal block.

What maintenance or replacement will the Perle 05090240 S-110P-S1Sc20Uxt Media Converter need later?

The converter has no moving parts or user-serviceable modules; plan only to verify fibre end-face cleanliness and terminal-block connections during scheduled network audits.

What limit appears first on the Perle 05090240 S-110P-S1Sc20Uxt Media Converter under sustained load?

The maximum frame size of 2048 bytes caps packet throughput before bandwidth or temperature limits are reached.
