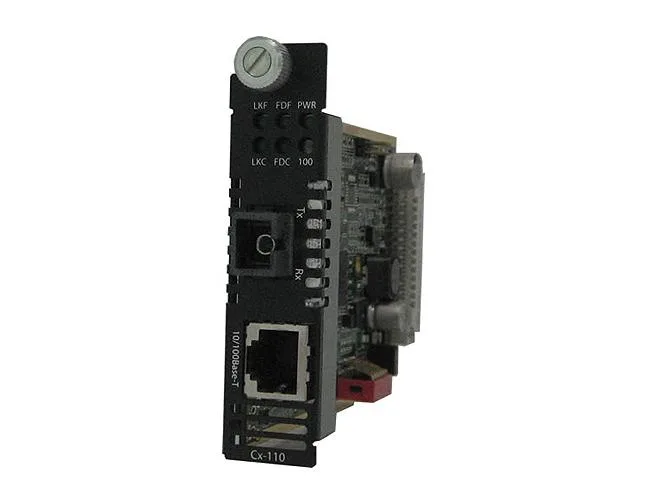

Perle C-110-S1Sc20U media converter module with RJ-45 and SC fiber ports

Perle

Perle 05051470 C-110-S1Sc20U Media Converter

SKU CH-Q0C2-DY6BX

Converts 10/100Base-TX copper to 100Base-BX single-strand fibre at 1310 nm TX and 1550 nm RX over 20 km with a 2048-byte maximum frame

  • TypeData & Communication
  • SizeMaximum frame size of 2048 bytes
  • Converts copper to single-strand fiber up to 20 km
  • Extends network reach 12.4 miles over single-mode SC fiber
  • Supports 10/100 Mbps speeds on both copper and fiber links
  • Maximum frame size 2048 bytes handles standard Ethernet traffic
  • Uses 1310 nm TX and 1550 nm RX wavelengths for bi-directional single-fiber operation

Media converter for single-strand fibre

The Perle 05051470 C-110-S1Sc20U converts 10/100Base-TX copper links to 100Base-BX single-mode fibre over one SC connector. It extends a network up to 20 km or 12.4 miles using 1310 nm transmit and 1550 nm receive wavelengths. The module handles frames up to 2048 bytes and is built for data and communication installations.

Passive thermal design and low power draw

No fan or active cooling is fitted so the unit runs silently in a rack or wall-mount bracket. Power consumption stays modest because the circuitry only drives 100 Mbps optics and a single RJ-45 port. The converter operates across the standard commercial temperature range without additional airflow planning.

SC single-mode pigtail simplifies patching

The factory-fitted SC connector on a single strand of fibre removes the need for a separate duplex patch cord and polarity management. Technicians terminate one cable run instead of two, reducing splice trays and cleaning steps. The 1310/1550 nm wavelength pair is fixed, so no software configuration or wavelength tuning is required.

Highlights

  • Converts copper to single-strand fiber up to 20 km
  • Extends network reach 12.4 miles over single-mode SC fiber
  • Supports 10/100 Mbps speeds on both copper and fiber links
  • Maximum frame size 2048 bytes handles standard Ethernet traffic
  • Uses 1310 nm TX and 1550 nm RX wavelengths for bi-directional single-fiber operation

Specifications

BrandPERLE SYSTEMS
TypeData & Communication
SizeMaximum frame size of 2048 bytes

Questions about this item

How do I connect the RJ-45 and SC fiber cables to the C-110-S1Sc20U?

Plug the twisted-pair cable into the RJ-45 port for 10/100Base-TX up to 100 m or 328 ft. Insert the single-strand single-mode fiber into the SC connector; the module transmits at 1310 nm and receives at 1550 nm over 20 km or 12.4 miles.

What ongoing maintenance does the C-110-S1Sc20U require?

No moving parts or filters exist. Periodically inspect the SC connector end-face for dust and clean with a lint-free wipe if needed; verify the RJ-45 latch remains secure. The unit handles frames up to 2048 bytes without configuration.

What is the distance limit for the fiber link on the C-110-S1Sc20U?

The single-mode single-strand fiber interface is rated for 20 km or 12.4 miles; this range is the first bound reached under sustained traffic.
