Handheld black battery tester with red and black clamps and a small screen

Peak 12V 24V Car Battery Tester 100-2000 CCA Analyzer

SKU CH-ZDPX-F031X

Tests 12V and 24V batteries from 100 to 2000 CCA, checking health, cranking and charging systems for cars, trucks and boats

  • Features1x Battery Tester, 1x User Manual, Cca, Jis, En, Din, Sae, I
  • Height6.34 L x 3.5 W x 1.2 H inches
  • Width6.34 L x 3.5 W x 1.2 H inches
  • Length6.34 L x 3.5 W x 1.2 H inches
  • Weight0.65 pounds
  • Sports Team1 Piece
  • Complete battery health check in seconds
  • Cranking test reveals hard-start causes
  • Charging system scan spots alternator faults
  • Works with 12V and 24V AGM, EFB, GEL, Flooded batteries
  • Self-powered, reverse-polarity protected, .65 lb handheld unit

12V 24V Battery Analyzer 100-2000 CCA

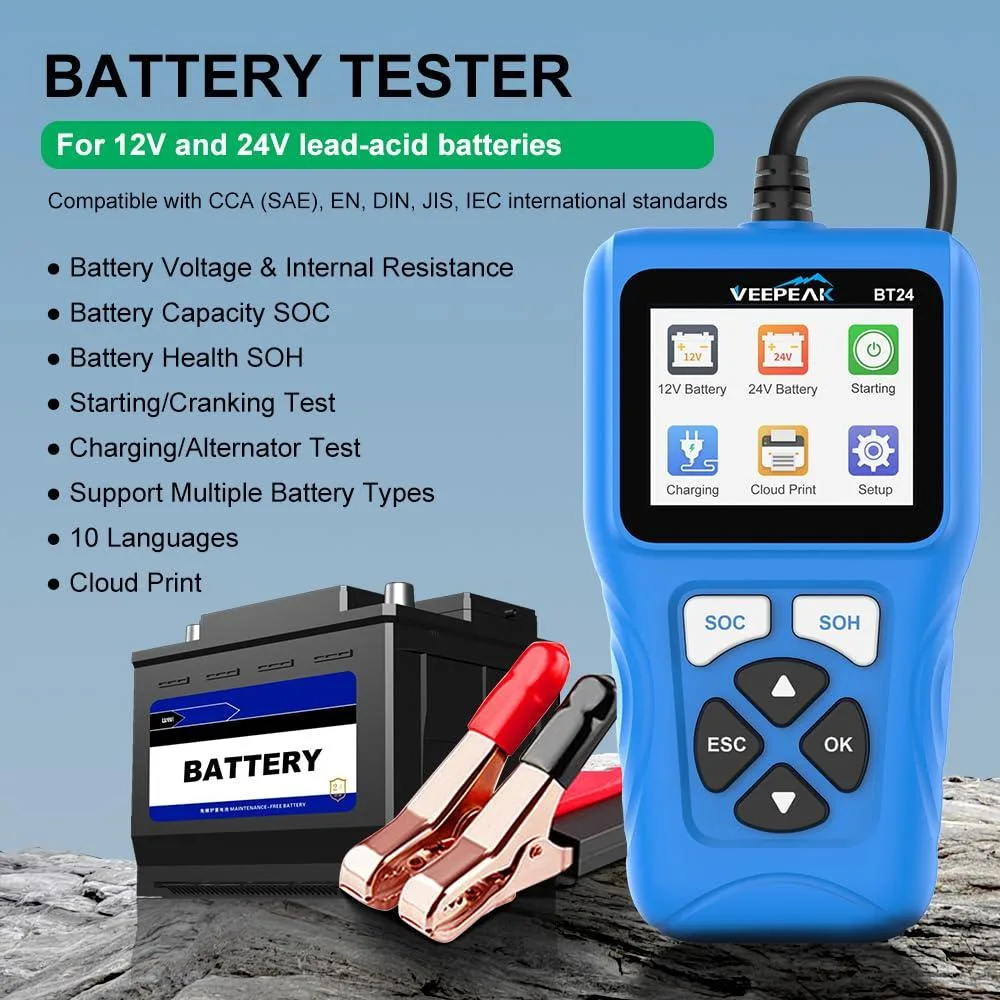

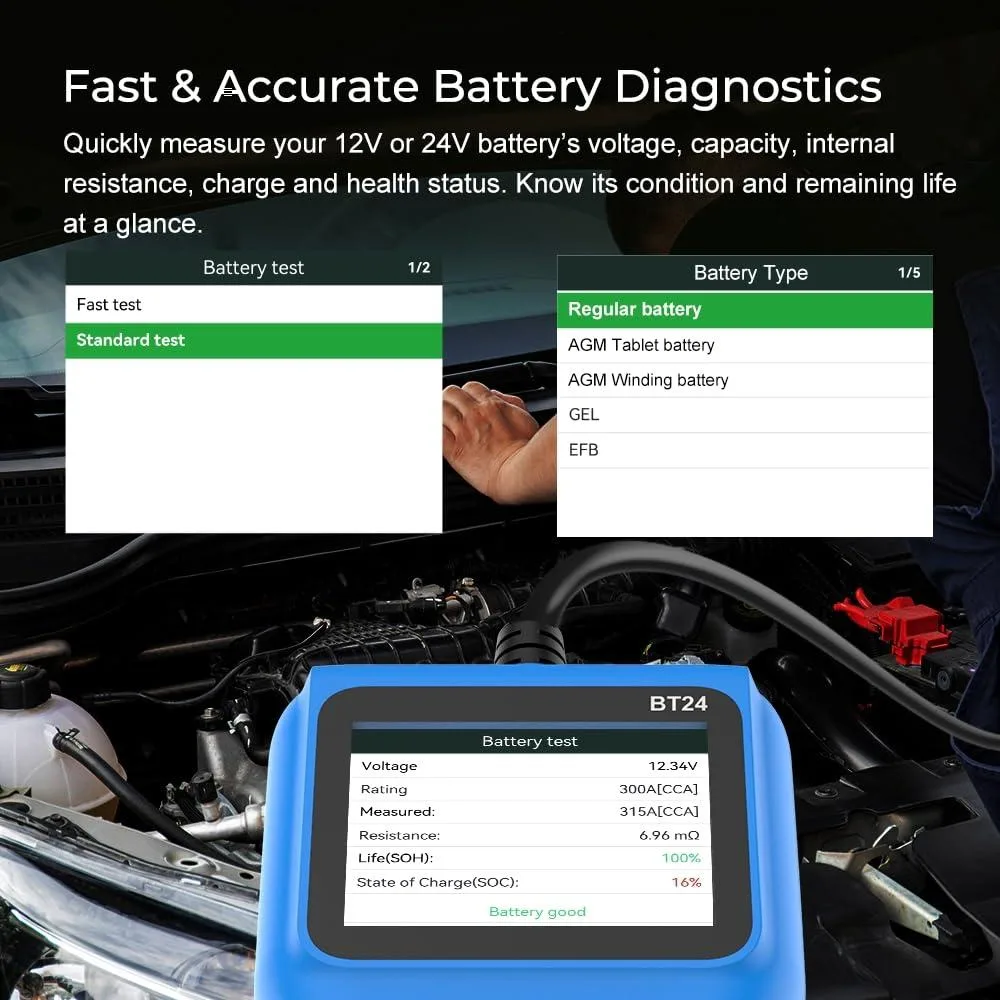

The Peak tester evaluates 12V and 24V lead-acid batteries across CCA, JIS, EN, DIN, SAE and IEC standards. It measures voltage, capacity, internal resistance, state of health and state of charge. Technicians and owners use it to confirm battery condition before replacement.

Replaces Guesswork and Basic Voltmeters

A simple voltmeter only shows resting voltage, while this unit performs cranking and charging system tests to reveal hidden faults. The jump is worth it when a vehicle suffers intermittent hard starts or when a battery passes a voltage check but fails under load. It works in-vehicle or on the bench.

Handles AGM EFB GEL Flooded Up to 2000 CCA

The analyzer covers common automotive, motorcycle, RV and marine batteries rated between 100 and 2000 CCA. It runs directly from the tested battery, so no external power is needed. It stops short of testing lithium chemistries or systems above 24V, and it does not diagnose alternator internal faults beyond voltage regulation.

Highlights

  • Complete battery health check in seconds
  • Cranking test reveals hard-start causes
  • Charging system scan spots alternator faults
  • Works with 12V and 24V AGM, EFB, GEL, Flooded batteries
  • Self-powered, reverse-polarity protected, .65 lb handheld unit

Specifications

BrandPeak
Features1x Battery Tester, 1x User Manual, Cca, Jis, En, Din, Sae, Iec, Battery Powered, false
Height6.34 L x 3.5 W x 1.2 H inches
Width6.34 L x 3.5 W x 1.2 H inches
Length6.34 L x 3.5 W x 1.2 H inches
Weight0.65 pounds
Sports Team1 Piece

Questions about this item

What are the dimensions of the Peak battery tester?

The unit measures 6.34 inches long, 3.5 inches wide and 1.2 inches high, weighing .65 pounds.

How do I connect the tester to the battery terminals?

Clamp the red lead to the positive post and the black lead to the negative post; the tester powers itself from the battery and reverse-polarity protection prevents damage if leads are swapped.

Does the tester need calibration or consumable parts over time?

No calibration schedule or replaceable components are specified; the clamps and circuitry are built for repeated use without scheduled maintenance.
