PCE-DC2 digital current clamp with 18 mm jaws and backlit LCD

PCE Instruments

PCE Instruments PCE-DC2 Digital Current Clamp 200 A 600 V 18 mm clamp measurement tool

SKU CH-0W21-1QFM0 MPN PCE-DC2

Measures AC/DC current to 200 A, AC voltage to 600 V and resistance with an 18 mm clamp, backlit display and non-contact voltage detection

  • AC Voltage200 A, 600V
  • DC Voltage600 V
  • TypeClamp-On Meters
  • FeaturesMeasures AC/DC current, AC voltage and ohms
  • Measures AC/DC current up to 200 A TRMS with 0.1 A resolution
  • Backlit LCD with 3 2/3 positions ensures readability in dark cabinets
  • Built-in white LEDs illuminate the measurement point for precise clamp placement
  • Non-contact voltage detection identifies live wires up to 600 V without metal contact
  • Auto-ranging and auto shut-off simplify operation and extend battery life

Digital Current Clamp 200 A 600 V

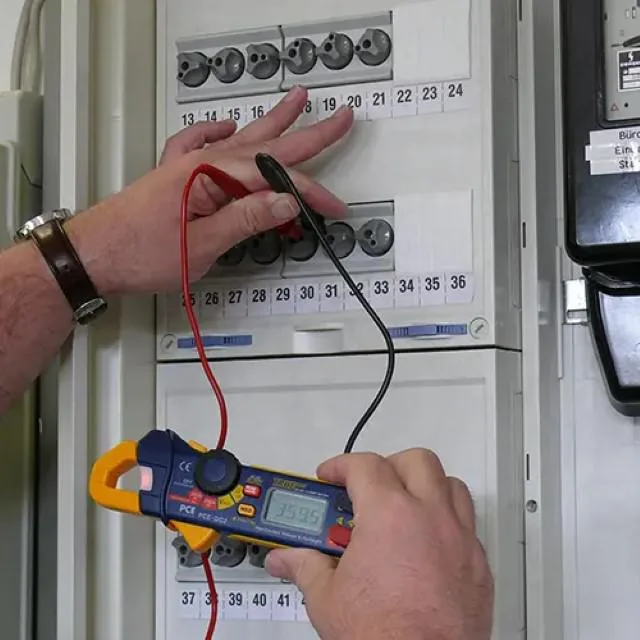

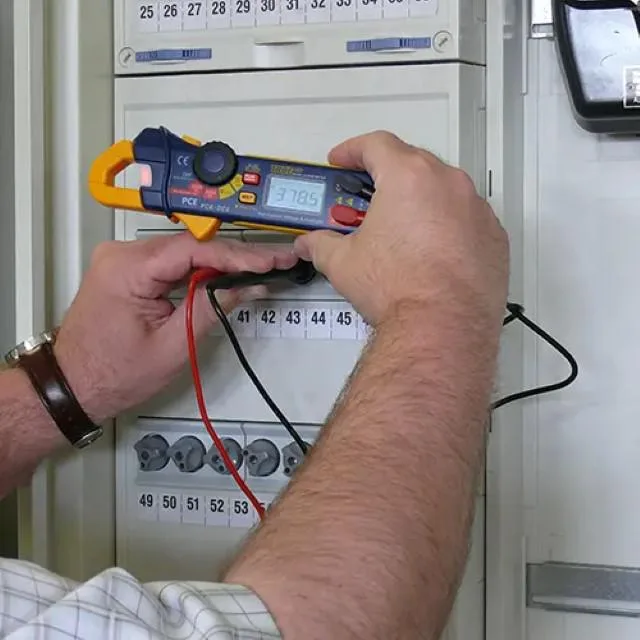

The PCE-DC2 is a handheld clamp meter for electricians and technicians who need to measure AC and DC current up to 200.0 A without breaking the circuit. It also reads AC voltage to 600 V and resistance, with a backlit LCD and automatic range selection for quick checks in cabinets or ducts. White LEDs illuminate the contact point in low light.

Upgrades from basic testers

Replacing a simple multimeter or non-contact pen, this tool adds true-rms AC current at 50/60 Hz with ±(2.5 % + 8 digits) accuracy and a zero-reset function for DC readings. The 18 mm jaw opens wide enough for standard conductors, and the memory button holds values while you move to a safer spot to record them.

Suits field service and panel work

It suits professionals who need one-handed current, voltage and continuity checks in tight or dim enclosures. Users who require higher amperage ranges, DC voltage measurement beyond the stated limit, or advanced logging functions should look at other instruments.

Highlights

  • Measures AC/DC current up to 200 A TRMS with 0.1 A resolution
  • Backlit LCD with 3 2/3 positions ensures readability in dark cabinets
  • Built-in white LEDs illuminate the measurement point for precise clamp placement
  • Non-contact voltage detection identifies live wires up to 600 V without metal contact
  • Auto-ranging and auto shut-off simplify operation and extend battery life

Specifications

BrandPCE Instruments
ModelPCE-DC2
AC Voltage200 A, 600V
DC Voltage600 V
TypeClamp-On Meters
FeaturesMeasures AC/DC current, AC voltage and ohms

Questions about this item

How wide is the clamp aperture for fitting around a conductor?

The clamp opens to 18 mm, so any cable or busbar must fit inside that diameter.

What is the key step when measuring DC current to avoid a zero-offset error?

Press the zero-reset button with the jaws closed and no conductor inside before clamping on the live wire.

Which user-replaceable power source runs the backlit LCD and LED illumination?

A standard 9 V battery powers the display backlight and the integrated white LEDs; replace it when the low-battery symbol appears.
