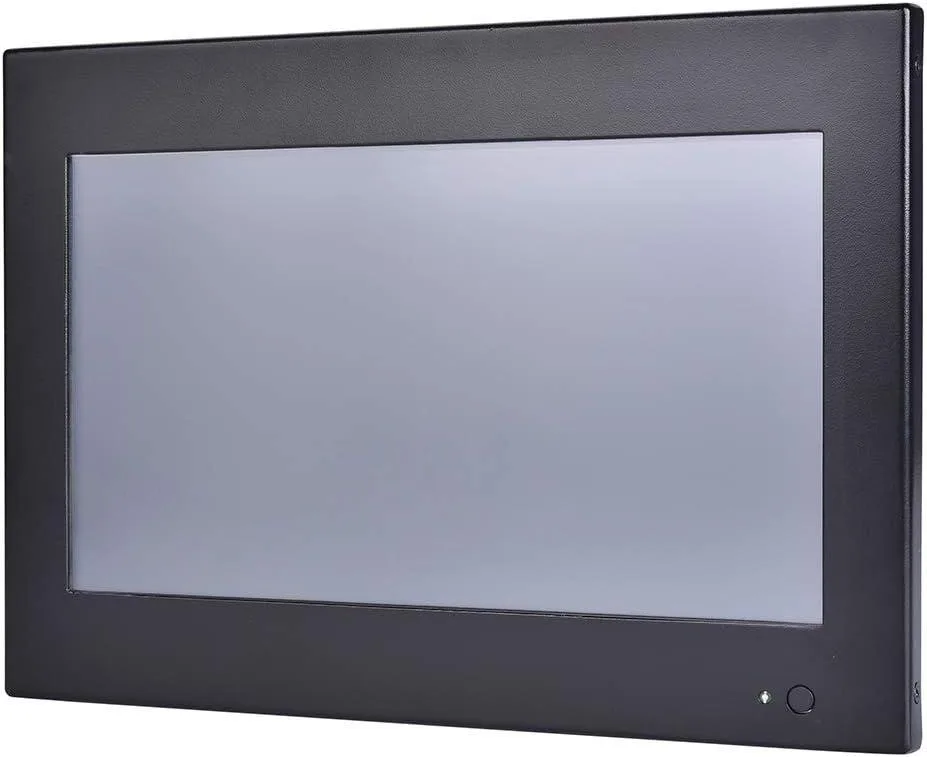

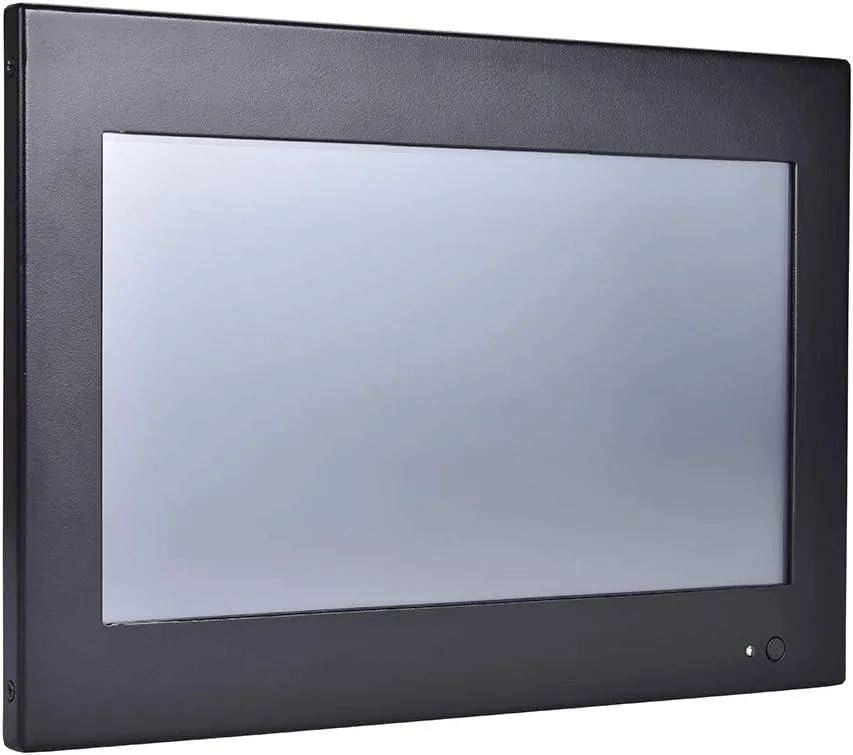

Black 10.1 inch industrial panel PC with resistive touchscreen, fanless aluminum alloy body

partaker

Partaker Z6-I5 3317U-N-4G128G 10.1" Resistive Touch Panel PC

SKU CH-1MAV-RTQ4V

A 10.1" industrial panel PC with resistive touchscreen, Intel Core i5-3317U, 4GB DDR3, 128GB SSD, Windows 11 Pro, HDMI, VGA, 4×USB2.0, 2×COM, fanless aluminium cooling, 0-50°C operation

  • Form FactorAll-in-One
  • ColorBlack
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • CPU NameIntel Core i5-3317U
  • GPU/VGA TypeIntel HD Graphics 4000

CPU Type Intel Core i5 3rd Gen

CPU Name Intel Core i5-3317U

GPU Intel HD Graphics 4000

Memory 4GB DDR3

SSD 128GB

  • 128GB
  • 256GB
  • 512GB

Struck-through versions exist but are not stocked here.

  • Fanless aluminium cooling enables silent 0–50 °C operation
  • Resistive touchscreen rated for 5 million touches in harsh environments
  • 1" 1024×600 TFT LED panel with 200 cd/m² brightness
  • Intel Core i5-3317U with 4 GB DDR3 and 128 GB SSD runs Windows 11 Pro
  • HDMI, VGA, 4×USB 2.0, 2×COM, LAN and Mini PCIe for flexible integration

Industrial Panel PC for Embedded Installations

The Partaker Z6 is a 10.1 inch all-in-one unit built around an Intel Core i5-3317U processor with 4 GB of DDR3 memory and a 128 GB mSATA SSD. It ships with Windows 11 Pro and features a resistive touchscreen rated for five million touches. The fanless aluminium chassis is designed for wall, desktop or embedded mounting in industrial environments.

Fanless Thermals and Power Consumption

Passive cooling keeps the system silent while maintaining an operating range of 0 to 50 °C with the fitted SSD. The 12 V DC input accepts 100 to 240 V AC through the supplied adapter. Typical draw stays low thanks to the low-power CPU and the 200 cd/m² backlit TFT LED panel running at 1024 x 600 resolution.

Connectivity and Mounting Extras Included

The box provides a power supply, power cord and embedded buckle kits for quick installation. I/O covers HDMI, VGA, four USB 2.0 ports, two COM ports, LAN, audio in and out plus a Mini PCIe slot with SIM holder for optional 4G or Wi-Fi expansion. Memory can be upgraded to 8 GB DDR3L via the single SODIMM slot.

Highlights

  • Fanless aluminium cooling enables silent 0–50 °C operation
  • Resistive touchscreen rated for 5 million touches in harsh environments
  • 1" 1024×600 TFT LED panel with 200 cd/m² brightness
  • Intel Core i5-3317U with 4 GB DDR3 and 128 GB SSD runs Windows 11 Pro
  • HDMI, VGA, 4×USB 2.0, 2×COM, LAN and Mini PCIe for flexible integration

Specifications

ModelZ6-I5 3317U-N-4G128G
Form FactorAll-in-One
ColorBlack
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 3rd Gen
CPU NameIntel Core i5-3317U
GPU/VGA TypeIntel HD Graphics 4000
Memory Capacity4GB DDR3
SSD128GB
HDDNo
Screen Size10.1"
TouchscreenYes

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How is the Partaker Z6 panel PC mounted and what step is often missed?

Cut an opening of 227 x 183 mm, insert the unit, and secure it with the supplied embedded buckle kits; the step often missed is fitting all four buckles before tightening any of them.

What maintenance will the resistive touchscreen need over time?

The resistive layer is rated for 5 million touches; after that the screen will need replacement, and the backlight is rated for a minimum of 10,000 hours before dimming.

What limit appears first during continuous operation at full load?

The operating ceiling is 50 °C with the installed SSD; sustained loads that push the fanless aluminum chassis above that temperature will trigger thermal throttling.
