Silver 1U rackmount firewall appliance with six LAN ports and mounting ears

partaker

Partaker R9 firewall appliance Intel Core i7-3770 8GB 256GB

SKU CH-0CY4-VXR1J

1U rackmount firewall appliance with Intel Core i7-3770, 8GB DDR3, 256GB SSD, six Gigabit LAN ports and AES-NI acceleration

  • Firewall TypeCabinet Type
  • TypeWired
  • Throughput1000 Mbps
  • LAN Ports6 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • Intel Core i7-3770 processor handles demanding firewall workloads
  • Six Intel Gigabit LAN ports provide high-speed wired connectivity
  • 8 GB DDR3 RAM and 256 GB SSD deliver responsive operation
  • 1U 19-inch rackmount chassis fits standard server cabinets
  • AES-NI acceleration strengthens VPN encryption performance

Purpose-built firewall appliance

The Partaker R9 is a 1U rackmount network appliance powered by an Intel Core i7-3770 processor with AES-NI support. It ships with 8GB of DDR3 memory and a 256GB mSATA SSD, ready for immediate deployment. The system targets administrators who need a dedicated platform for pfSense, OPNsense, Untangle or other FreeBSD and Linux-based router distributions. It is not suited for buyers who require 10GbE interfaces or more than six LAN ports.

Industrial 1U chassis with six Intel Gigabit ports

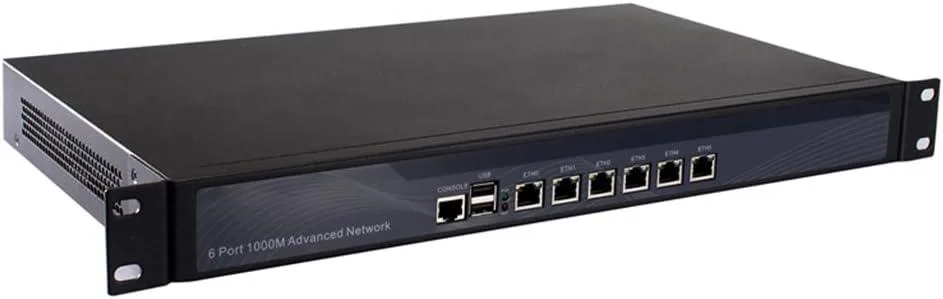

A 19-inch cabinet measuring 430 x 270 x 50mm includes rack ears, wall-mount brackets and rubber feet for flexible installation. The front panel provides six RJ-45 ports driven by Intel 82574L, 82583V or I211 controllers, plus a console port, two USB ports and VGA output. One hardware bypass set is fitted for high-availability configurations. An internal 2.5/3.5-inch drive bay allows additional storage, while the B75 chipset supports up to 32GB of DDR3 across two SO-DIMM slots.

Low-power cooling and 150W universal supply

The CPU is cooled by a ball-bearing silent fan designed for continuous operation in the compact 1U form factor. A 150W power supply accepts 100-240V at 50/60Hz, delivering enough headroom for the processor, memory, SSD and six network controllers. Throughput testing shows LAN-to-WAN forwarding at 1000 Mbps across the Gigabit interfaces. The unit weighs 6.5 kgs and operates without requiring external cooling infrastructure.

Highlights

  • Intel Core i7-3770 processor handles demanding firewall workloads
  • Six Intel Gigabit LAN ports provide high-speed wired connectivity
  • 8 GB DDR3 RAM and 256 GB SSD deliver responsive operation
  • 1U 19-inch rackmount chassis fits standard server cabinets
  • AES-NI acceleration strengthens VPN encryption performance

Specifications

ModelR9-B75-I7 3770-New-8G256G
Firewall TypeCabinet Type
TypeWired
Throughput1000 Mbps
LAN Ports6 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

What real-world throughput does the 6-port Intel Gigabit LAN deliver?

The six Intel 82574L/82583V/I211 controllers push actual traffic above 1000 Mbps, so LAN-to-WAN forwarding saturates a full gigabit link.

What rack depth and mounting hardware does the 1U chassis require?

The unit measures 430 x 270 x 50 mm and ships with 19-inch rack ears, wall-hanging brackets and foot pads for shelf or wall mounting.

How do I add the OS to the mSATA SSD and what BIOS step is often missed?

Connect a console cable or VGA/USB keyboard, enter BIOS, enable AES-NI and set the mSATA SSD as first boot device before installing pfSense, OPNsense or Untangle.
