partaker R9 firewall appliance Intel Core i3 3220 4GB RAM 64GB SSD 6 Gigabit LAN

SKU CH-2BFB-3VN9X

A 1U rackmount firewall appliance with an Intel Core i3 3220 processor, 4 GB DDR3 RAM, 64 GB storage and six Gigabit LAN ports for RouterOS deployments

  • Firewall TypeCabinet Type
  • TypeWired
  • Throughput1000 Mbps
  • LAN Ports6 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • Intel Core i3 3220 CPU powers multi-OS firewall deployments
  • Six Intel Gigabit LAN ports deliver 1000 Mbps throughput
  • 1U 19-inch rackmount chassis fits standard cabinets
  • 4 GB DDR3 RAM and 64 GB mSATA SSD included
  • Ball-bearing cooling fan ensures quiet long-term operation

1U rack firewall with six Intel Gigabit ports

The Partaker R9 is a 19‑inch 1U network appliance built around an Intel Core i3 3220 processor, 4 GB of DDR3 memory and a 64 GB mSATA SSD. It ships with RouterOS and supports pfSense, Untangle, OPNsense and other FreeBSD or Linux based firewall distributions. Six Intel 82574L/82583V/I211 controllers deliver wire‑speed throughput of 1000 Mbps. The compact 430 x 270 x 50 mm chassis fits standard racks and includes mounting ears.

Industrial chassis with bypass and console access

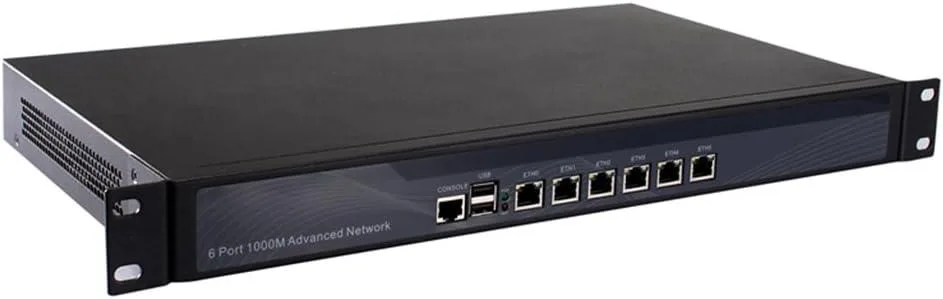

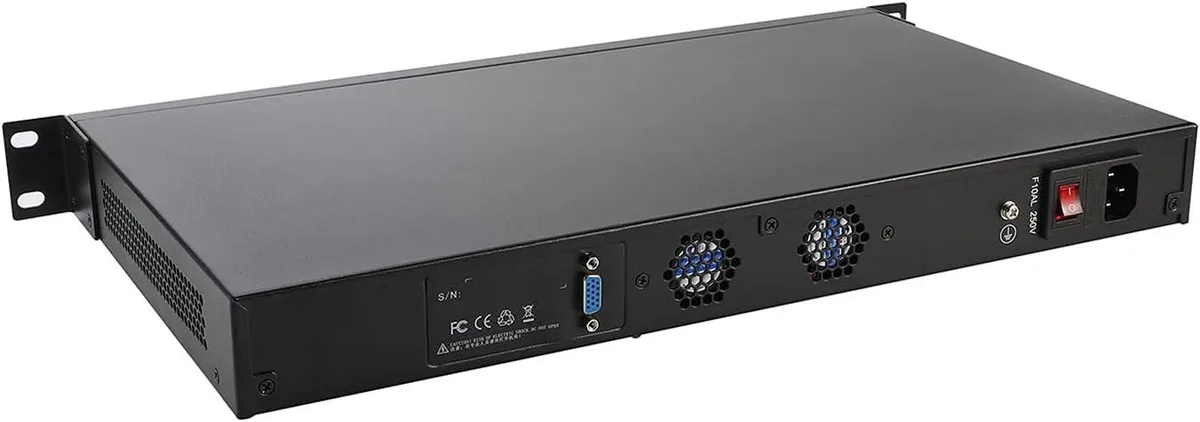

A steel 1U cabinet houses a 150 W 100‑240 V power supply and a ball‑bearing silent fan for continuous cooling. The front panel provides six RJ‑45 LAN ports, a VGA output, two USB ports and a serial console; a single LAN bypass set maintains connectivity during power loss or software failure. An internal 2.5/3.5 inch drive bay and a second SODIMM slot allow storage and memory expansion up to 32 GB.

Verify rack depth and OS requirements before

The unit is 270 mm deep, so confirm your rack or shelf provides adequate clearance with cables attached. AES‑NI acceleration is not supported on the i3 3220, which may limit VPN throughput on some firewall platforms. Ensure your chosen operating system can run on a dual‑core Ivy Bridge CPU without AES‑NI and that the 64 GB mSATA SSD meets your logging and package storage needs.

Highlights

  • Intel Core i3 3220 CPU powers multi-OS firewall deployments
  • Six Intel Gigabit LAN ports deliver 1000 Mbps throughput
  • 1U 19-inch rackmount chassis fits standard cabinets
  • 4 GB DDR3 RAM and 64 GB mSATA SSD included
  • Ball-bearing cooling fan ensures quiet long-term operation

Specifications

ModelR9-B75-I3 3220-New-4G64G
Firewall TypeCabinet Type
TypeWired
Throughput1000 Mbps
LAN Ports6 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

What throughput does the 1000 Mbps Gigabit LAN interface actually cap at in practice?

The 6 Intel Gigabit LAN ports deliver a tested forwarding speed of 1 Gbps from LAN to WAN, matching the rated 1000 Mbps throughput.

What rack depth and mounting hardware does the 19-inch 1U chassis require?

The unit measures 430 x 270 x 50 mm and includes rackmount ears for 19-inch cabinets, plus wall-hanging brackets and foot pads for desktop use.

How is the mSATA SSD installed and which step is often missed?

Insert the mSATA module into the onboard slot, secure it with the retaining screw, then initialise the drive in the chosen OS — skipping the initialisation leaves the 64 GB SSD invisible to the installer.
