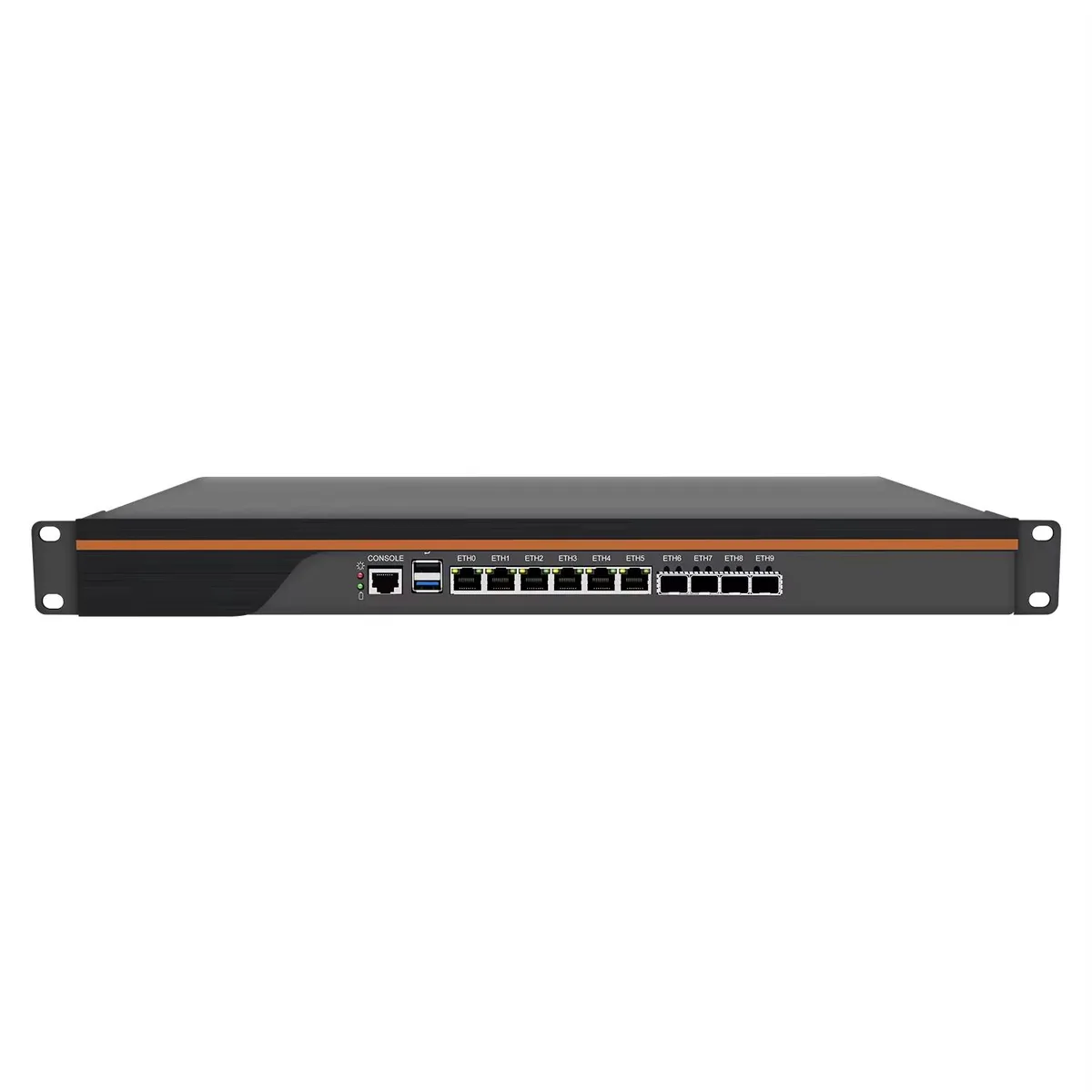

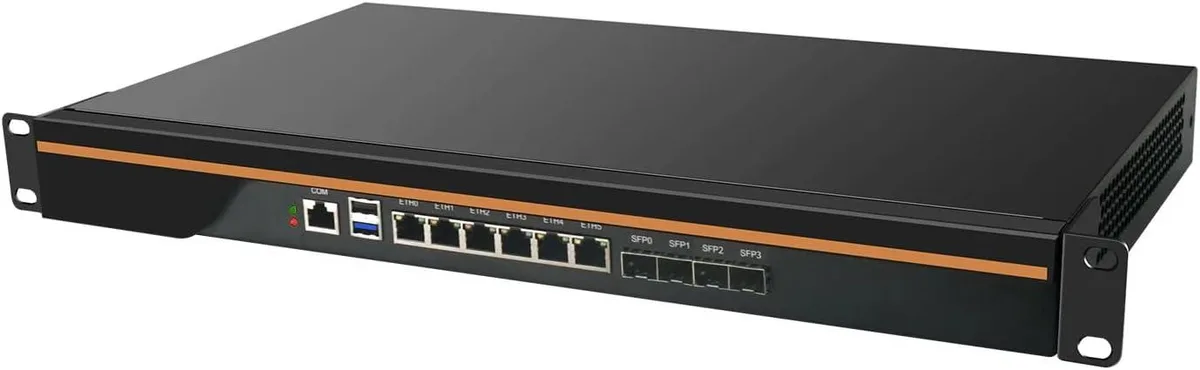

Silver 1U rackmount firewall appliance with six RJ-45 ports and four SFP+ cages on the front face

partaker

Partaker R6-C3808-32G-1TB firewall appliance

SKU CH-2M15-8EYVS

1U rack-mount firewall appliance with Intel Atom C3808, 32GB DDR4, 1TB NVME SSD, six 1GbE LAN and four 10G SFP+ ports

  • Firewall TypeCabinet Type
  • TypeWired
  • LAN Ports6 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • Atom C3808 with AES-NI accelerates encrypted firewall throughput
  • 6 × 1GbE RJ-45 plus 4 × 10G SFP+ X553 for mixed copper and fiber links
  • 32G DDR4 2400 MT/s and 1TB SSD provide ample state tables and log storage
  • 1U 484 × 252 × 48mm rack chassis fits standard 19-inch cabinets
  • 25W TDP and ball-bearing silent fan enable 24/7 operation in quiet racks

1U rack firewall with Atom C3808 and 32 GB RAM

The Partaker R6-C3808-32G-1TB is a 1U rack-mountable firewall appliance built around an Intel Atom C3808 processor with AES-NI acceleration. It ships with 32 GB of DDR4 memory and a 1 TB SSD, ready for immediate deployment with platforms such as OPNsense or pfSense. The compact 484 x 252 x 48 mm chassis fits standard 19 inch cabinets and includes an ATX power supply.

Six 1GbE RJ-45 and four 10G SFP+ ports

Network connectivity consists of six copper ports running at 10/100/1000 Mbps and four SFP+ optical ports based on the Intel X553 controller. Copper links are limited to 1 Gbps per port, while the SFP+ interfaces support 10 Gbps fibre uplinks. Expansion options include a PCIe x8 slot, a Mini PCIe slot, and an M.2 3052 slot with a SIM card holder for wireless modules.

Upgrade from software routers or older 1U boxes

This appliance replaces a general-purpose server or an older 1U firewall that lacks 10G uplinks or hardware AES-NI. The jump is worthwhile when traffic volumes demand line-rate encryption on multiple gigabit links or when a dedicated, fan-cooled chassis with 25 W TDP reduces rack power and noise. Buyers who need more than four 10G ports or higher single-thread CPU performance should look elsewhere.

Highlights

  • Atom C3808 with AES-NI accelerates encrypted firewall throughput
  • 6 × 1GbE RJ-45 plus 4 × 10G SFP+ X553 for mixed copper and fiber links
  • 32G DDR4 2400 MT/s and 1TB SSD provide ample state tables and log storage
  • 1U 484 × 252 × 48mm rack chassis fits standard 19-inch cabinets
  • 25W TDP and ball-bearing silent fan enable 24/7 operation in quiet racks

Specifications

ModelR6-C3808-32G-1TB
Firewall TypeCabinet Type
TypeWired
LAN Ports6 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

Should I pick the 32 GB DDR4 2400 MT/s configuration or plan to expand to 64 GB later?

The unit ships with 32 GB in two SODIMM slots and supports up to 64 GB total, so you can start with the factory fit and add matched DDR4 2400 modules if traffic grows.

What does the Atom C3808 2.0 GHz rating mean for sustained firewall throughput?

Eight Denverton cores with AES-NI handle encryption offload at line rate, letting the 10 GbE SFP+ links and six 1 GbE ports push multi-gigabit stateful inspection without CPU bottleneck.

How do the four X553 SFP+ ports and six RJ-45 ports share bandwidth inside the box?

The X553 controller drives all four 10G SFP+ lanes over a single PCIe 3.0 x8 link, while two I211 and four I350 controllers feed the six 1G RJ-45 ports, so 10G and 1G paths remain independent.
