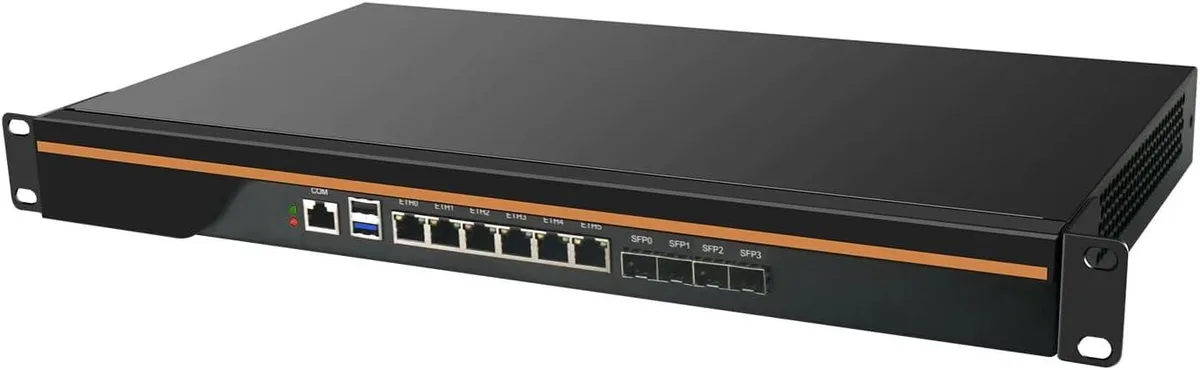

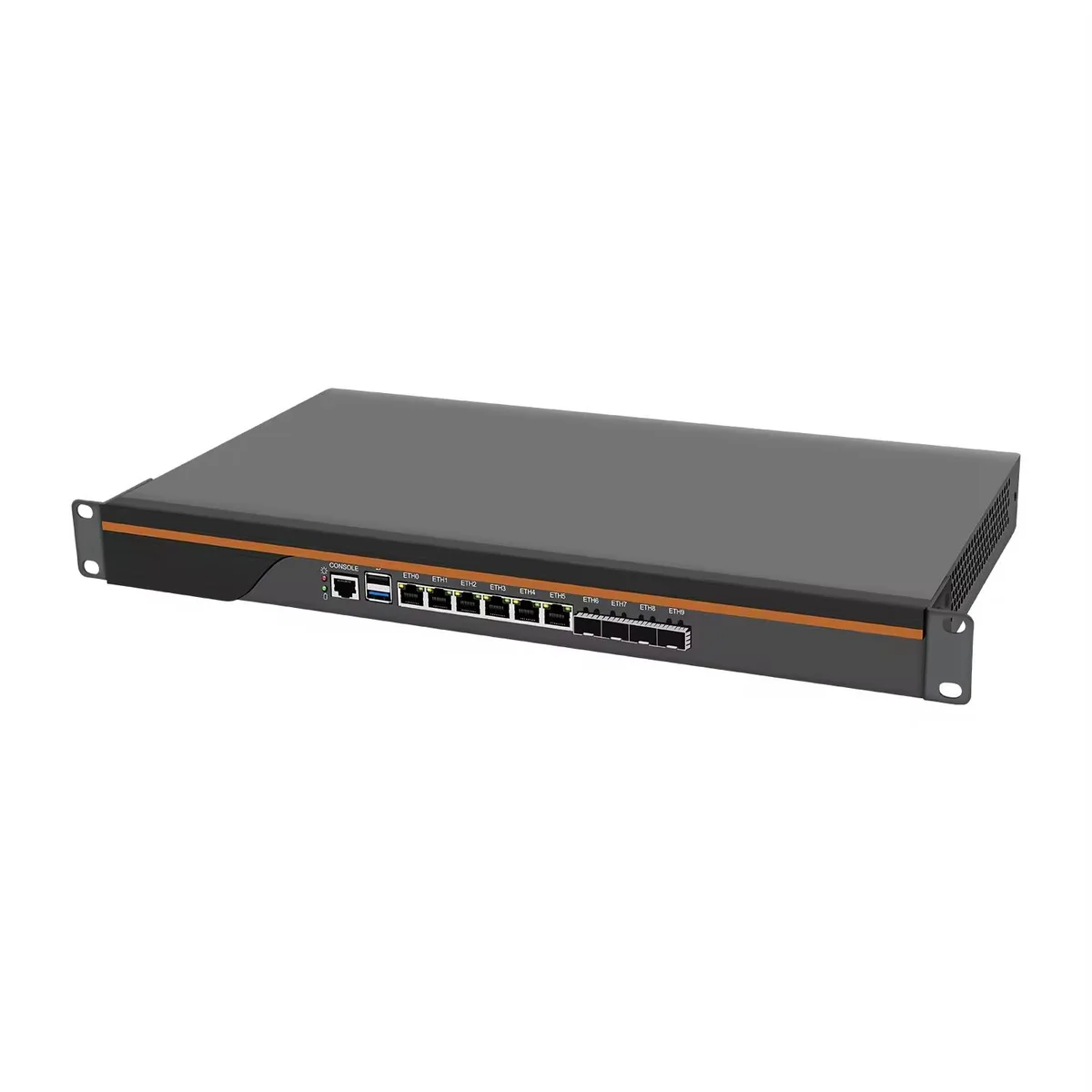

Silver 1U rack-mount firewall appliance with six RJ-45 ports and four SFP+ cages

partaker

Partaker R6-C3758-16G-512G firewall appliance

SKU CH-2W91-43GD6

1U rack appliance with Intel Atom C3758, 16 GB DDR4, 512 GB NVME SSD, six 1 GbE RJ-45 ports and four 10 GbE SFP+ ports

  • Firewall TypeCabinet Type
  • TypeWired
  • LAN Ports6 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • Intel Atom C3758 with AES-NI accelerates encrypted firewall throughput
  • 16 GB DDR4 and 512 GB NVME storage ready for log-heavy workloads
  • 6 x 1 GbE plus 4 x 10 GbE SFP+ ports handle mixed copper and fibre links
  • 1U 19-inch rackmount chassis with silent ball-bearing fan for 24/7 operation
  • Mini-PCIe, M.2 3052 and PCIe x8 slots allow Wi-Fi, 4G or extra NIC expansion

1U Firewall Appliance with 10G SFP+

The Partaker R6-C3758-16G-512G is a 1U rack-mountable network security appliance powered by an Intel Atom C3758 processor with AES-NI hardware encryption. It ships with 16GB of DDR4 RAM and a 512GB SSD, and includes an ATX power supply. The platform is compatible with open-source firewall distributions such as OPNsense and pfSense, and supports UEFI boot for straightforward deployment.

Suited for Multi-Gigabit Edge Deployments

This unit fits environments that need both copper and fiber connectivity at the network edge, offering six 1GbE RJ-45 ports and four 10G SFP+ ports based on the Intel X553 controller. It is not intended for buyers who require higher port density or 25GbE and faster fiber interfaces, nor for workloads that demand more than the provided 16GB of memory or the C3758's eight-core performance ceiling.

Six 1GbE RJ-45 and Four 10G SFP+ Ports

The decisive specification is the combination of six Gigabit copper ports and four 10G SFP+ fiber ports, enabling mixed-media uplink and downlink configurations in a single 1U chassis. This port layout determines whether the appliance matches the physical topology and throughput requirements of the target network segment.

Highlights

  • Intel Atom C3758 with AES-NI accelerates encrypted firewall throughput
  • 16 GB DDR4 and 512 GB NVME storage ready for log-heavy workloads
  • 6 x 1 GbE plus 4 x 10 GbE SFP+ ports handle mixed copper and fibre links
  • 1U 19-inch rackmount chassis with silent ball-bearing fan for 24/7 operation
  • Mini-PCIe, M.2 3052 and PCIe x8 slots allow Wi-Fi, 4G or extra NIC expansion

Specifications

ModelR6-C3758-16G-512G
Firewall TypeCabinet Type
TypeWired
LAN Ports6 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

How do I mount the 1U chassis in a 19 inch rack and which step is often missed?

Attach the supplied rack ears to the side holes, slide the unit into the rack, and secure it with cage nuts; the step often missed is fastening the rear brackets so the appliance cannot shift under vibration.

Which storage drive will need replacement first under heavy logging?

The 512G M.2 2280 NVME SSD handles OS and log writes; its endurance rating determines replacement timing, while the 2.5 inch SATA bay remains available for a secondary drive.

What thermal limit appears first when the Atom C3758 runs sustained firewall loads?

The 25W TDP and ball-bearing fan keep the CPU within its 50°C operating ceiling; sustained throughput is limited by the 2.20 GHz turbo ceiling before thermal throttling activates.
