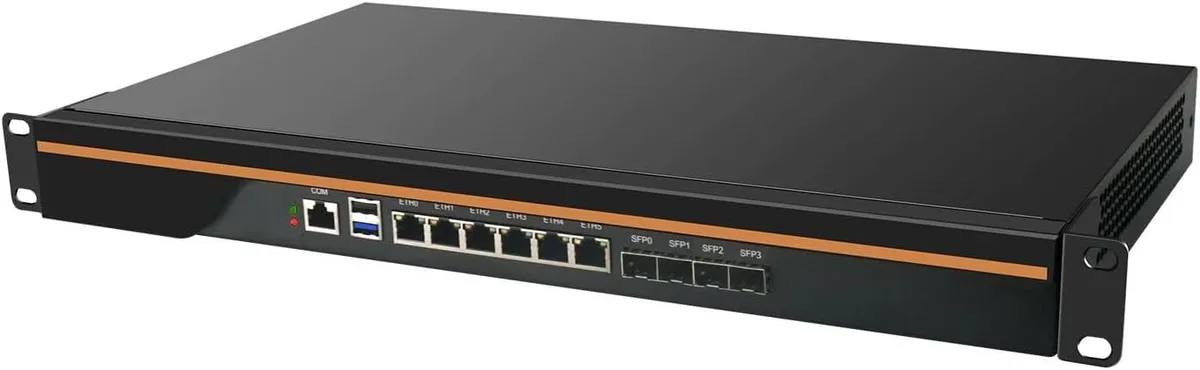

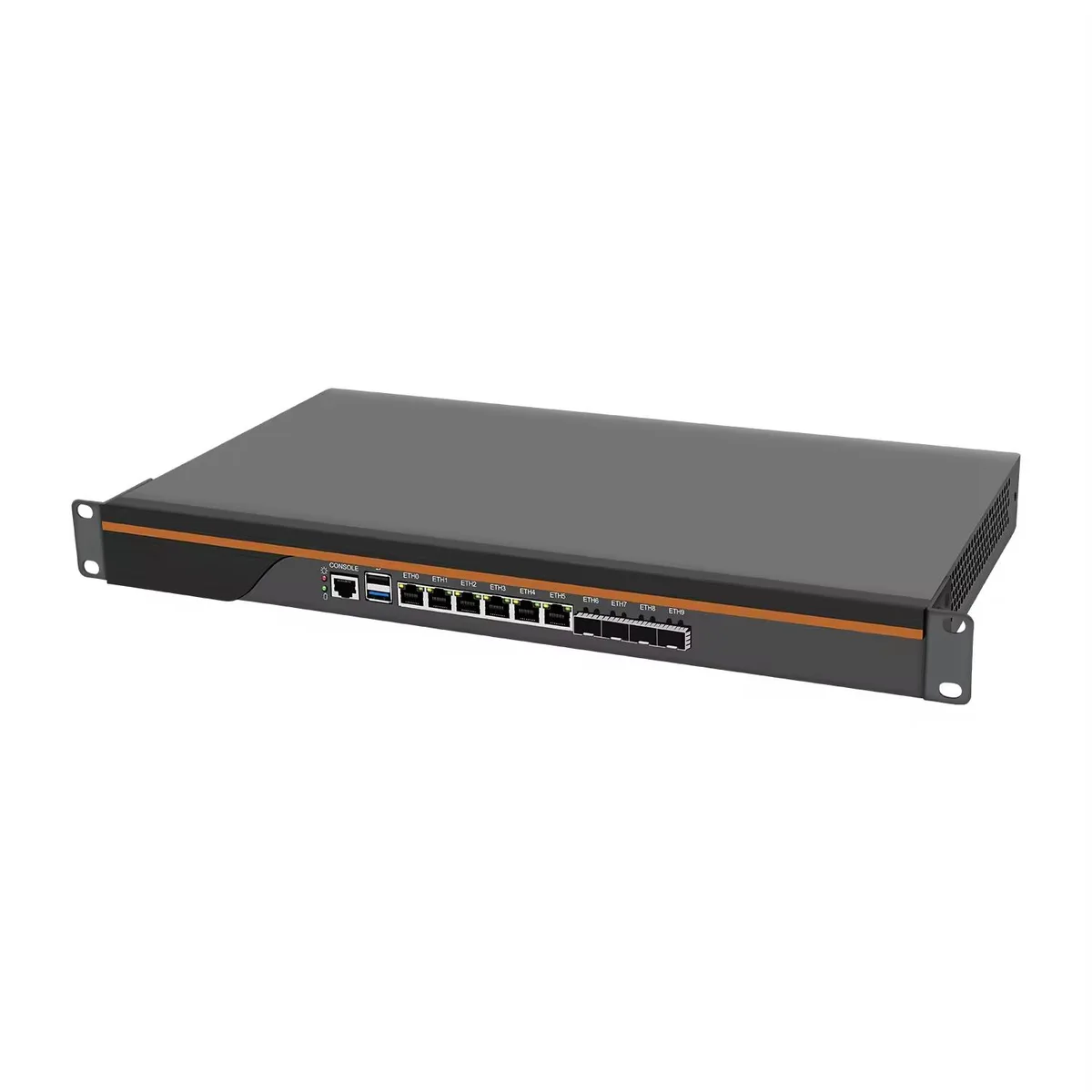

Silver 1U rackmount firewall appliance with six RJ45 ports and four SFP+ cages

partaker

Partaker R6-C3758-16G-256G firewall appliance

SKU CH-GRX1-X9YMB

1U rack firewall appliance with Intel Atom C3758, six Gigabit LAN ports, four 10G SFP+ ports, 16 GB DDR4 RAM and 256 GB SSD storage

  • Firewall TypeCabinet Type
  • TypeWired
  • LAN Ports6 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • Hardware AES-NI encryption accelerates VPN throughput
  • 16 GB DDR4 memory handles concurrent connections
  • 256 GB NVME storage boots firewall OS rapidly
  • Six 1 GbE and four 10 GbE SFP+ ports connect diverse networks
  • 1U rackmount chassis fits standard 19 inch cabinets

Purpose-built 1U firewall appliance

The Partaker R6-C3758-16G-256G is a 1U rack-mountable firewall appliance built around an Intel Atom C3758 processor with AES-NI hardware encryption. It targets network administrators and security teams who need a dedicated platform for open-source firewall distributions such as OPNsense or pfSense. The system ships with 16 GB of DDR4 RAM and a 256 GB NVME SSD, providing a ready-to-deploy foundation for high-throughput packet inspection and VPN termination. UEFI boot support simplifies installation across FreeBSD, Linux and Windows environments.

Integration into a rack build

The chassis measures 484 x 252 x 48 mm and includes mounting ears for 19-inch rack installation as well as wall-mount brackets and foot pads for desktop use. A pre-installed ATX power supply operates on 100-240 V input and draws 1.0 A, while a ball-bearing silent fan maintains a 25 W TDP within a 0-50 °C operating range. Connectivity comprises six RJ-45 ports driven by two I211 and four I350 controllers plus four SFP+ optical ports based on the X553 controller. Management access is available through console, USB 2.0, USB 3.0 and VGA interfaces.

Upgrade path and fit

This appliance replaces older software-based routers or underpowered white-box firewalls that lack hardware AES acceleration and 10 GbE uplink capability. The jump is worthwhile when traffic volumes demand line-rate encryption on multiple gigabit links or when SFP+ fiber uplifts are required for backbone connectivity. It is not suited for deployments needing more than 64 GB of RAM, additional PCIe expansion beyond a single x8 slot, or integrated wireless and cellular modules without using the Mini PCIe and M.2 3052 slots with a SIM card.

Highlights

  • Hardware AES-NI encryption accelerates VPN throughput
  • 16 GB DDR4 memory handles concurrent connections
  • 256 GB NVME storage boots firewall OS rapidly
  • Six 1 GbE and four 10 GbE SFP+ ports connect diverse networks
  • 1U rackmount chassis fits standard 19 inch cabinets

Specifications

ModelR6-C3758-16G-256G
Firewall TypeCabinet Type
TypeWired
LAN Ports6 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

How does the 25 W TDP limit sustained throughput under continuous load?

The 25 W TDP caps total platform power, so prolonged maximum packet processing will throttle the Atom C3758 once the thermal budget is reached, limiting sustained 10 GbE line-rate performance.

What noise and heat levels should I expect when the appliance runs 24/7 in a rack?

A ball-bearing silent fan cools the 25 W system; at full load the chassis surface stays within the 0–50 °C commercial range and acoustic output remains low enough for data-center aisles.

Which SFP+ modules must I already own to use the four 10 GbE fiber ports?

The X553 controller drives four SFP+ cages; you need compatible 10 GbE SFP+ transceivers and matching fiber patch cables for each active link.
