Silver 1U rackmount appliance with front panel ports and bracket ears

partaker

Partaker R13 firewall appliance C3758 32G 1TB

SKU CH-6QP0-GWKWR

1U rack appliance with Intel Atom C3758, 32 GB DDR4, 1 TB NVME storage, ten 1 GbE and four 2.5 GbE RJ-45 ports plus four SFP+ links, ready for OPNsense or pfSense

  • Firewall TypeCabinet Type
  • TypeWired
  • LAN Ports10 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • Atom C3758 CPU with AES-NI accelerates encrypted VPN traffic
  • 10 RJ-45 LAN ports plus 4 SFP+ uplinks for flexible WAN and LAN design
  • 32 GB DDR4 memory and 1 TB SSD provide ample headroom for logs and packages
  • 1U rackmount chassis with silent fan suits quiet server rooms or office racks
  • Mini PCIe and M.2 slots with SIM holder allow 4G or Wi-Fi failover expansion

1U firewall appliance with Atom C3758

This 1U rack-mount firewall appliance ships with an Intel Atom C3758 processor, 32 GB of DDR4 memory and a 1 TB NVME SSD. It provides ten RJ-45 LAN ports and four SFP+ optical interfaces for high-density wired connectivity. The platform supports open-source solutions such as OPNsense and pfSense out of the box.

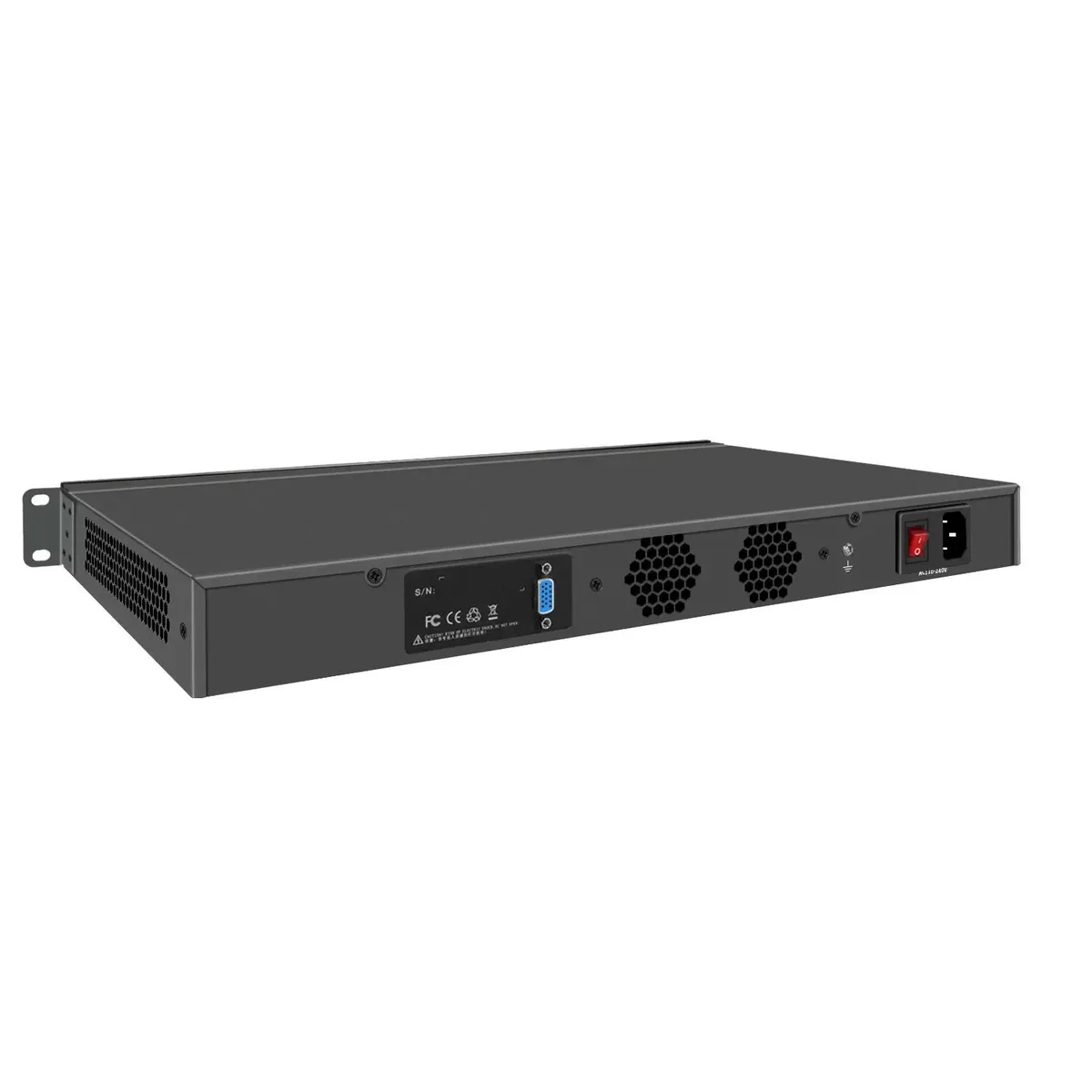

Silent ball-bearing fan and 25 W TDP

A dedicated ball-bearing cooling fan keeps the processor stable while remaining quiet during continuous operation. The unit draws up to 25 W thermal design power from a 100-240 V AC supply, producing minimal heat in a standard rack environment. Operating temperature ranges from 0 °C to 50 °C with commercial storage.

32 GB DDR4 memory installed

The system arrives with 32 GB of DDR4 2400 MT/s RAM fitted in two SODIMM slots, leaving headroom up to 64 GB for future expansion. Buyers who need more memory capacity will have to add modules themselves. The single specification that decides fit is the installed memory amount.

Highlights

  • Atom C3758 CPU with AES-NI accelerates encrypted VPN traffic
  • 10 RJ-45 LAN ports plus 4 SFP+ uplinks for flexible WAN and LAN design
  • 32 GB DDR4 memory and 1 TB SSD provide ample headroom for logs and packages
  • 1U rackmount chassis with silent fan suits quiet server rooms or office racks
  • Mini PCIe and M.2 slots with SIM holder allow 4G or Wi-Fi failover expansion

Specifications

ModelR13-C3758-32G-1TB
Firewall TypeCabinet Type
TypeWired
LAN Ports10 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

How do I mount the 1U 19 inch cabinet in a rack, and which step is often missed?

Attach the included rackable ears to the chassis sides using the provided screws, then secure the ears to the rack posts. The step often missed is tightening the rear support brackets to prevent the 484 mm deep unit from sagging over time.

Which storage drives may need replacement first, and what are the supported form factors?

The appliance has one M.2 2280 NVME PCIe 3.0 x2 slot and one 2.5 inch SATA bay. Either drive can be swapped later; the M.2 slot accepts NVME SSDs up to 64 GB/s throughput while the SATA bay takes standard 2.5 inch SSDs or HDDs.

At what sustained load does the 25 W TDP cooling limit appear first?

The dedicated ball silent fan is rated for the 25 W TDP of the Atom C3758. Under continuous full CPU utilisation the processor will hit its thermal ceiling before the fan reaches maximum speed, so sustained throughput is limited by the 25 W power envelope.
