Partaker R13-C3958-8G-128G firewall appliance

1U rackable firewall appliance

The Partaker R13-C3958-8G-128G is a 1U cabinet-type network security device built around an Intel Atom C3958 processor with AES-NI support. It ships with 8 GB of DDR4 memory and a 128 GB NVME SSD, running RouterOS or compatible open-source platforms such as OPNsense and pfSense. The 25 W TDP and ball-bearing silent fan suit continuous operation in commercial environments.

Ten RJ-45 ports plus four SFP+ interfaces

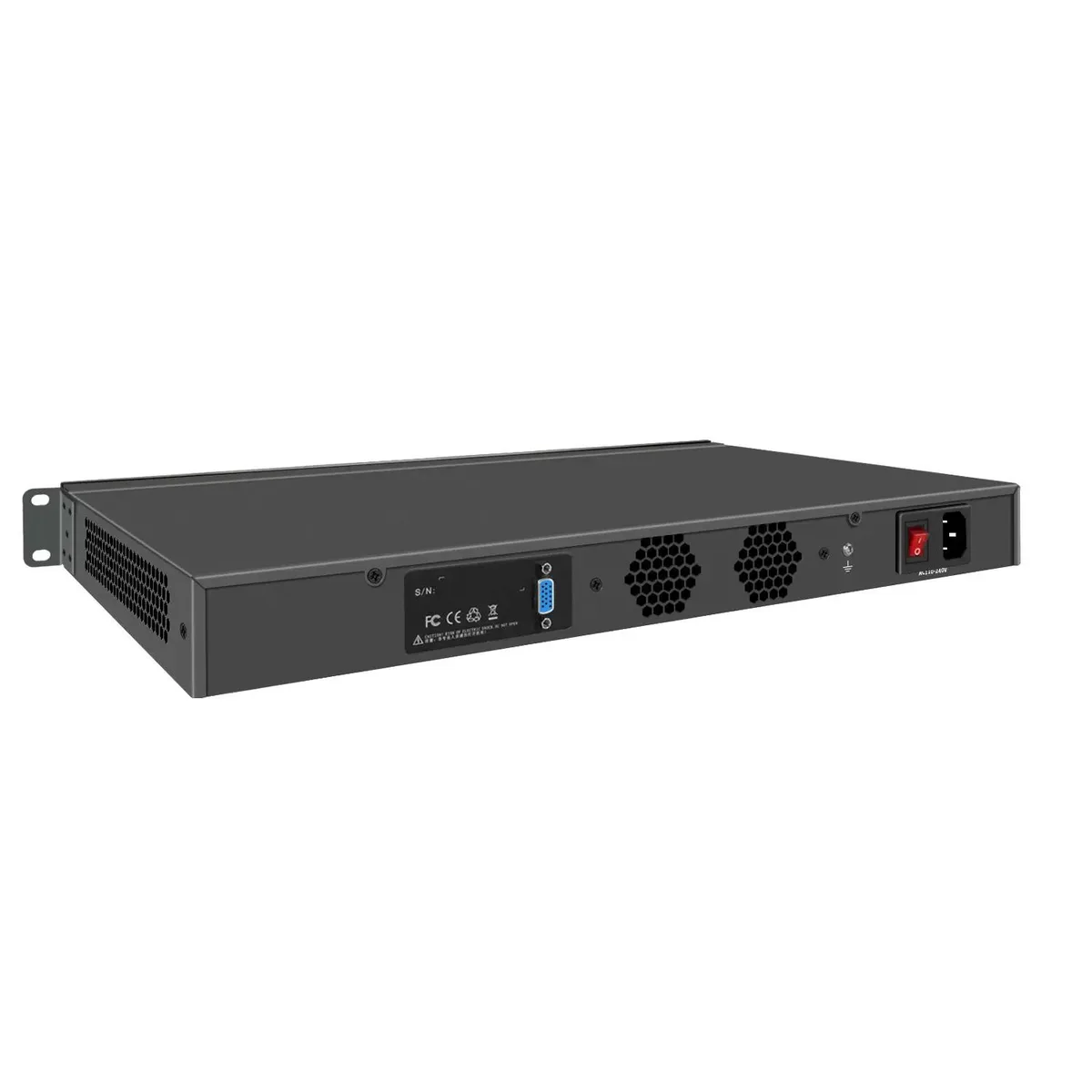

The chassis provides 10 Gigabit Ethernet ports via Intel I211 and I350 controllers, four 2.5GbE ports using I225-V, and four SFP+ optical ports driven by an X553 controller. Front-panel I/O includes console, USB 2.0, USB 3.0, VGA, power switch and AC inlet. Rack ears, wall-mount brackets and rubber feet are included for flexible mounting in a 19-inch rack or on a desk.

Verify rack depth, power input and expansion needs

The unit measures 484 mm wide by 252 mm deep, so confirm your rack or shelf accommodates that depth. Power requires a 100-240 V AC supply rated at 1.0 A, delivering 12 V at 6.25 A internally. Expansion options include a Mini PCIE slot, an M.2 3052 slot with SIM holder and a PCIe x8 slot; check whether your add-in cards fit the available slots and signal types.
