Silver 1U rack-mount firewall appliance with front-panel ports and mounting ears

partaker

Partaker R13-C3958-32G-512G firewall appliance

SKU CH-K6NK-R7MFQ

1U rack-mount firewall appliance with Atom C3958, 32 GB DDR4, 512 GB NVME, ten RJ-45 ports and four SFP+ uplinks

  • Firewall TypeCabinet Type
  • TypeWired
  • LAN Ports10 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • 16-core Atom C3958 with AES-NI accelerates encrypted VPN traffic
  • 32 GB DDR4 and 512 GB NVME SSD provide ample headroom for logs and packages
  • Ten RJ-45 ports plus four SFP+ uplinks deliver flexible 1 GbE and 2.5 GbE connectivity
  • 1U rackmount chassis with silent ball-bearing fan runs at 25 W TDP for quiet 24/7 operation
  • Dual M.2 and PCIe x8 slots allow future Wi-Fi, 4G or storage expansion

1U Firewall Appliance for Rack Deployment

The Partaker R13-C3958-32G-512G is a 1U cabinet-type firewall appliance built for rack or wall mounting. It targets network administrators who need a dedicated gateway with high port density and open-source OS flexibility. The system arrives new with 32 GB of DDR4 memory and a 512 GB NVME SSD pre-installed. It runs RouterOS and supports FreeBSD, Linux and Windows platforms.

10GbE and 2.5GbE LAN with Four SFP+ Ports

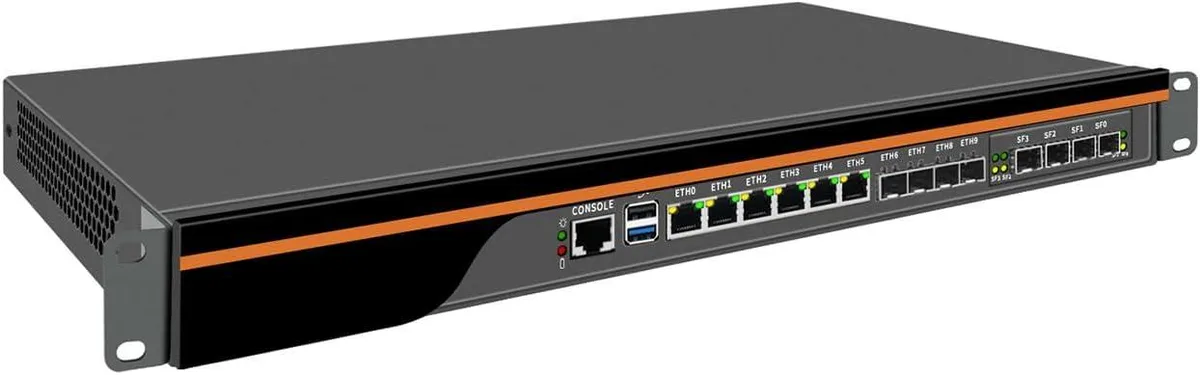

Ten RJ-45 ports provide six 1GbE and four 2.5GbE connections, while four SFP+ optical interfaces use the X553 controller for fibre uplinks. The Atom C3958 processor with 16 MB cache and AES-NI acceleration handles encryption workloads for VPN and firewall rules. Memory can be expanded to 64 GB across two SODIMM slots, and a second 2.5-inch SATA drive bay adds storage headroom. The 25 W TDP keeps heat low under sustained load.

Rackmount Chassis with Expansion Slots

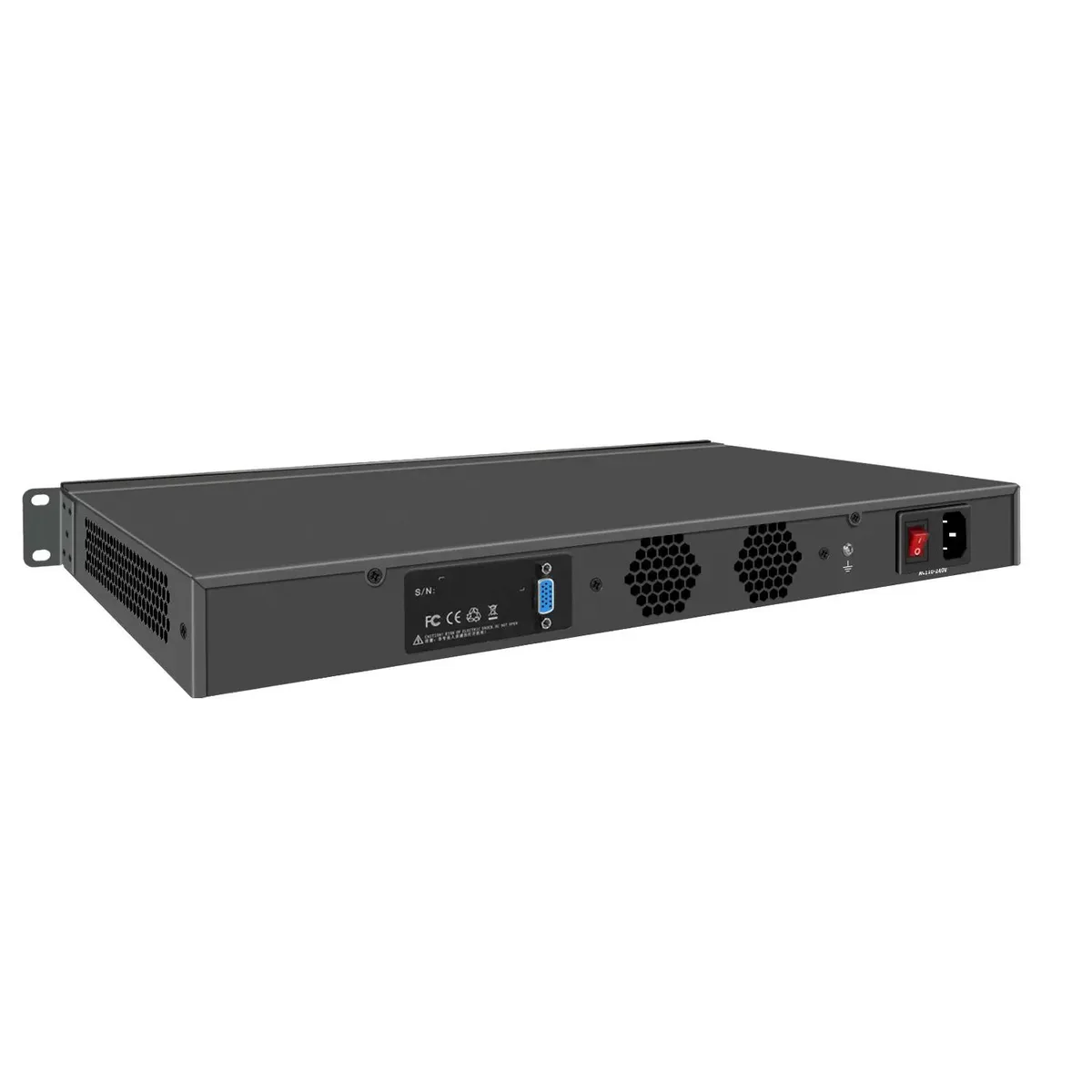

The 19-inch chassis measures 484 x 252 x 48 mm and includes mounting ears, wall brackets and foot pads for versatile placement. A single silent ball-bearing fan cools the CPU within a 0-50 °C operating range. Expansion options include a Mini PCIe slot, an M.2 3052 slot with SIM holder for 4G or Wi-Fi modules, and a PCIe x8 slot for additional cards. Dual USB 2.0 and 3.0 ports, VGA output and a console port complete the I/O. Power is supplied via a 100-240 V AC inlet with a 12 V 6.25 A internal rail.

Highlights

  • 16-core Atom C3958 with AES-NI accelerates encrypted VPN traffic
  • 32 GB DDR4 and 512 GB NVME SSD provide ample headroom for logs and packages
  • Ten RJ-45 ports plus four SFP+ uplinks deliver flexible 1 GbE and 2.5 GbE connectivity
  • 1U rackmount chassis with silent ball-bearing fan runs at 25 W TDP for quiet 24/7 operation
  • Dual M.2 and PCIe x8 slots allow future Wi-Fi, 4G or storage expansion

Specifications

ModelR13-C3958-32G-512G
Firewall TypeCabinet Type
TypeWired
LAN Ports10 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

Will the 10 RJ-45 ports and 4 SFP+ X553 interfaces connect directly to my existing 1 GbE and 10 GbE switches?

Yes, the 2 Intel I211 and 4 I350 ports provide 6 x 1 GbE links, the 4 I225-V ports provide 4 x 2.5 GbE links, and the 4 SFP+ X553 cages accept 10 GbE transceivers for uplinks.

Which front-panel LEDs or console messages confirm the Atom C3958, 32 G DDR4 and 512 G NVME are all detected at boot?

Connect a screen to the VGA port or a serial cable to the console port; the UEFI firmware will list the C3958 CPU, both DDR4 SODIMM modules totalling 32 G, and the M.2 2280 NVME drive before loading OPNsense or RouterOS.

Does the package include rack ears, a power cord and any drive caddies for the spare 2.5 inch SATA bay?

The box contains the R13 appliance, a pair of 19 inch rack-mount ears, an AC power cord and a warranty card; the internal 2.5 inch SATA bay is empty and uses a standard caddy not supplied.
