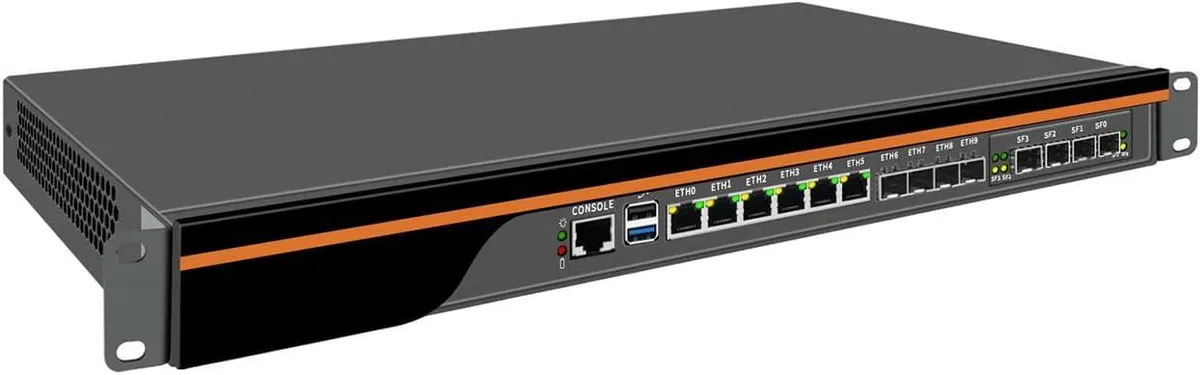

Silver 1U rack-mount firewall appliance with front-panel ports and mounting ears

partaker

Partaker R13-C3808-16G-256G firewall appliance

SKU CH-JHJN-FK41D

1U rack firewall appliance with Intel Atom C3808, 16 GB DDR4, 256 GB NVME, ten 1 GbE ports, four 2.5 GbE ports and four SFP+ X553 links

  • Firewall TypeCabinet Type
  • TypeWired
  • LAN Ports10 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • Atom C3808 CPU with AES-NI accelerates VPN and encryption workloads
  • 10 Gigabit RJ-45 ports plus 4 SFP+ uplinks handle high-throughput routing
  • 16 GB DDR4 memory and 256 GB NVME SSD deliver responsive firewall performance
  • 1U rack-mount chassis with silent ball-bearing fan ensures quiet long-term operation
  • 25 W TDP and 100-240 V power supply keep energy costs low

Dedicated Firewall Appliance

The Partaker R13-C3808-16G-256G is a 1U rackmount network security device built around an Intel Atom C3808 processor with AES-NI support. It ships with 16 GB of DDR4 memory and a 256 GB NVME SSD, ready for immediate deployment. The platform targets administrators who need a purpose-built gateway for routing, VPN, and intrusion prevention tasks. It runs open-source firewall distributions such as OPNsense and pfSense on FreeBSD or Linux.

Ten Copper Ports Four SFP+ Uplinks

The chassis provides ten RJ-45 interfaces split between 1 GbE and 2.5 GbE controllers, plus four SFP+ cages using the X553 controller for fibre uplinks. A single PCIe x8 slot, a Mini PCIe slot, and an M.2 3052 slot with a SIM tray allow wireless or cellular failover modules to be added. Dual USB ports and a VGA console give local management access without consuming network ports. The 19-inch rack ears and wall-mount brackets let the unit fit standard cabinets or shelf positions.

Passive Cooling Twenty-Five Watt TDP

The Atom C3808 operates at a 25 W thermal design point, cooled by a single ball-bearing fan that keeps noise low in rack environments. UEFI-only boot and hardware auto-power-on enable unattended recovery after power loss. The operating range extends from zero to fifty degrees Celsius with commercial storage, or minus twenty to fifty degrees with industrial SSD media. This thermal envelope supports continuous line-rate inspection without throttling.

Highlights

  • Atom C3808 CPU with AES-NI accelerates VPN and encryption workloads
  • 10 Gigabit RJ-45 ports plus 4 SFP+ uplinks handle high-throughput routing
  • 16 GB DDR4 memory and 256 GB NVME SSD deliver responsive firewall performance
  • 1U rack-mount chassis with silent ball-bearing fan ensures quiet long-term operation
  • 25 W TDP and 100-240 V power supply keep energy costs low

Specifications

ModelR13-C3808-16G-256G
Firewall TypeCabinet Type
TypeWired
LAN Ports10 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

How much RAM can the Atom C3808 system address before the memory controller becomes the bottleneck?

The board accepts two DDR4 SODIMM modules running at 2400 MT/s and the memory controller supports a maximum of 64 GB.

What is the thermal design power of the C3808 processor and how is it cooled in this 1U chassis?

The processor has a 25 W TDP and is cooled by a dedicated ball-bearing silent fan designed for continuous operation.

Which expansion slots are already populated on the motherboard and which remain free for additional cards?

The system provides one PCIe x8 slot, one Mini PCIe slot and one M.2 3052 slot with SIM holder, all unoccupied and available for Wi-Fi, 4G or other add-in cards.
