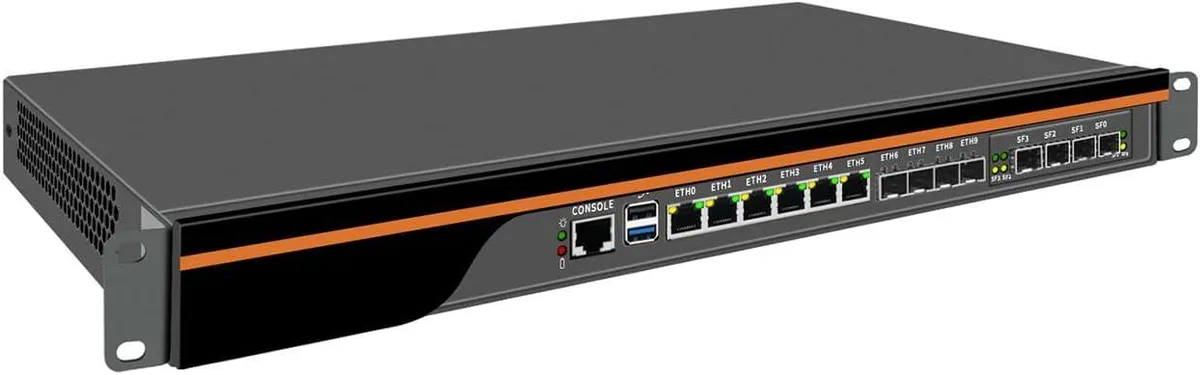

Silver 1U rackmount firewall appliance with front-panel ports and mounting ears

partaker

partaker R13-C3758-16G-512G firewall appliance

SKU CH-8EGY-YYBCC

1U rack-mount firewall appliance with Intel Atom C3758, 16 GB DDR4, 512 GB NVME SSD, ten RJ-45 ports up to 2.5 GbE and four SFP+ links

  • Firewall TypeCabinet Type
  • TypeWired
  • LAN Ports10 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • 8-core Denverton Atom C3758 with AES-NI accelerates encrypted throughput
  • 16 GB DDR4 and 512 GB NVME SSD deliver responsive firewall operation
  • 6 x 1GbE plus 4 x 2.5GbE RJ-45 ports handle diverse WAN/LAN links
  • 4 x SFP+ X553 cages add 10 GbE fibre uplinks for backbone speed
  • 1U 19-inch rackmount chassis with silent ball-bearing fan ensures quiet 25 W deployment

1U Firewall Appliance with Atom C3758

This 1U rack-mountable firewall appliance runs on an Intel Atom C3758 processor with AES-NI support. It ships with 16 GB of DDR4 memory and a 512 GB NVME SSD. The unit supports FreeBSD, Linux and Windows operating systems and is compatible with OPNsense and pfSense.

Ten RJ-45 ports and four SFP+ cages

The chassis provides ten RJ-45 LAN ports: two Intel I211, four I350 and four I225-V 2.5GbE interfaces, plus four SFP+ optical cages using the X553 controller. Front I/O includes console, USB 2.0, USB 3.0 and VGA. Internal expansion offers a Mini PCIe slot, an M.2 3052 slot with SIM and a PCIe x8 slot.

Suited for multi-gateway routing and VPN

Buyers needing a compact, low-power box with abundant Ethernet and SFP+ connectivity will fit this into a 19-inch rack or wall mount. It is not for deployments that require more than 64 GB of RAM, additional NVME bays beyond the single M.2 2280 slot, or 10 GbE RJ-45 ports.

Highlights

  • 8-core Denverton Atom C3758 with AES-NI accelerates encrypted throughput
  • 16 GB DDR4 and 512 GB NVME SSD deliver responsive firewall operation
  • 6 x 1GbE plus 4 x 2.5GbE RJ-45 ports handle diverse WAN/LAN links
  • 4 x SFP+ X553 cages add 10 GbE fibre uplinks for backbone speed
  • 1U 19-inch rackmount chassis with silent ball-bearing fan ensures quiet 25 W deployment

Specifications

ModelR13-C3758-16G-512G
Firewall TypeCabinet Type
TypeWired
LAN Ports10 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

How many 2.5 GbE LAN ports does the C3758 appliance provide for sustained throughput?

The unit includes four I225-V 2.5 GbE LAN ports alongside six 1 GbE ports and four SFP+ interfaces.

What is the TDP and cooling method for continuous all-day operation?

The processor has a 25 W TDP and uses a ball-bearing silent fan for stable long-term cooling.

Which pre-installed memory and storage modules ship with the appliance?

It comes with 16 GB of DDR4 SODIMM RAM and a 512 GB M.2 2280 NVME SSD.
