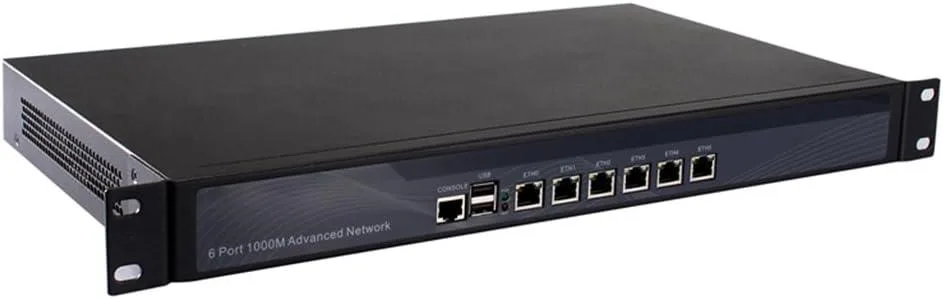

Silver 19 inch 1U rackmount firewall appliance with six LAN ports

partaker

Partaker R11-I7 3520M-New-8G256G firewall appliance

SKU CH-9F7B-0AQ54

1U rack-mount firewall appliance with Intel Core i7-3520M, six Gigabit LAN ports, 8 GB DDR3 RAM and 256 GB mSATA SSD

  • Firewall TypeCabinet Type
  • TypeWired
  • Throughput1000 Mbps
  • LAN Ports6 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • Intel Core i7-3520M up to 3.60 GHz drives high-throughput security workloads
  • Six Intel Gigabit LAN ports enable flexible WAN/LAN segmentation
  • AES-NI hardware acceleration boosts VPN encryption performance
  • 1U 19-inch rackmount chassis fits standard cabinets
  • 8 GB DDR3 RAM and 256 GB mSATA SSD pre-installed for immediate deployment

1U Rackmount Firewall Appliance

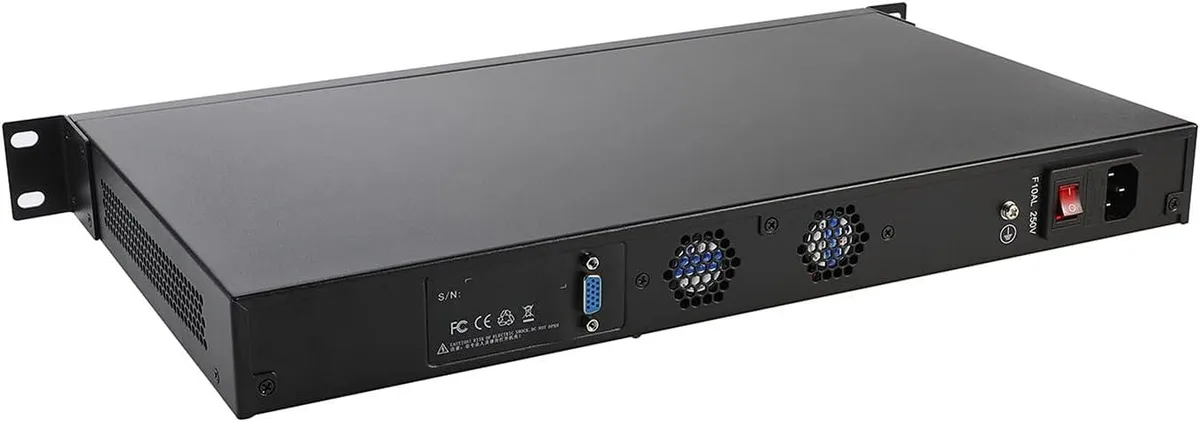

The Partaker R11 is a 19-inch 1U cabinet-type network security device built around an Intel Core i7-3520M processor with AES-NI support. It ships with 8 GB of DDR3 memory and a 256 GB mSATA SSD, plus a second bay for a 2.5 or 3.5 inch drive. Six Intel Gigabit LAN ports, two USB ports, a COM console and VGA output provide the I/O needed for gateway duties. The unit includes a 100 W universal power supply and a ball-bearing silent cooling fan.

Verify Rack Space and OS Choice

Confirm you have 1U of clearance in a standard 19-inch rack or a suitable wall-mount location; the chassis measures 430 x 250 x 50 mm and weighs 6.5 kg. The platform runs any FreeBSD-based router distribution, Linux or Windows, so decide whether you will install pfSense, OPNsense, Untangle or another open-source firewall before deployment. Ensure your network design can use six RJ-45 ports operating at 10/100/1000 Mbps with a tested forwarding throughput of 1 Gbps.

Integrates as a Standalone Gateway

The appliance slots directly into a rack or mounts on a wall using the included bracket ears and foot pads, drawing 100–240 V AC from the supplied cord. Its low-power motherboard and dedicated turbo fan keep heat output minimal for continuous operation. The six Intel 82583V/82574L controllers free the CPU for encryption and packet inspection, while the spare drive bay allows local logging or cache expansion without additional external storage.

Highlights

  • Intel Core i7-3520M up to 3.60 GHz drives high-throughput security workloads
  • Six Intel Gigabit LAN ports enable flexible WAN/LAN segmentation
  • AES-NI hardware acceleration boosts VPN encryption performance
  • 1U 19-inch rackmount chassis fits standard cabinets
  • 8 GB DDR3 RAM and 256 GB mSATA SSD pre-installed for immediate deployment

Specifications

ModelR11-I7 3520M-New-8G256G
Firewall TypeCabinet Type
TypeWired
Throughput1000 Mbps
LAN Ports6 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

Does the R11-I7 3520M arrive with rack-mount ears and a power cord, or must they be ordered separately?

The packing list includes the firewall appliance, rack-mount ears and a power cord, so the unit is ready to install in a 19-inch rack without extra purchases.

Is the installed 8 GB DDR3 SODIMM the maximum the motherboard accepts, or can it be upgraded further?

The memory slot supports DDR3/L at 1333/1600 MT/s with a maximum of 8 GB, so the fitted module already reaches the board limit.

What real-world throughput can I expect from the six Intel Gigabit LAN ports when the box runs pfSense or OPNsense?

The manufacturer states WAN-to-LAN forwarding through one gigabit NIC reaches 1 Gbps, and the six Intel 82583V/82574L controllers are tested to exceed that rate.
