Silver 19 inch 1U rackmount firewall appliance with six LAN ports

partaker

partaker R11-I7 3520M-New-4G128G firewall appliance

SKU CH-F1HC-MS5F4

1U rackmount firewall appliance with six Intel Gigabit LAN ports, Intel Core i7-3520M processor, 4 GB DDR3 RAM and 128 GB mSATA SSD

  • Firewall TypeCabinet Type
  • TypeWired
  • Throughput1000 Mbps
  • LAN Ports6 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • Intel Core i7-3520M up to 3.60 GHz powers demanding firewall workloads
  • 6 Intel Gigabit LAN ports deliver 1000 Mbps throughput for high-speed routing
  • AES-NI support accelerates encryption for pfsense, opnsense, untangle deployments
  • 19-inch 1U rackmount chassis with silent cooling fan fits standard cabinets
  • 4 GB DDR3 RAM and 128 GB mSATA SSD provide instant boot and log storage

Compact 1U firewall appliance

The Partaker R11-I7 3520M-New-4G128G is a 19 inch rackmount network security device built around an Intel Core i7-3520M processor with AES-NI support. It ships with 4 GB DDR3 memory and a 128 GB mSATA SSD, ready for immediate deployment. Six Intel Gigabit LAN ports provide wired throughput up to 1000 Mbps for LAN-to-WAN forwarding. The unit supports RouterOS, pfSense, OPNsense, Untangle and other FreeBSD or Linux based firewall distributions.

Low-heat 100 W cooling

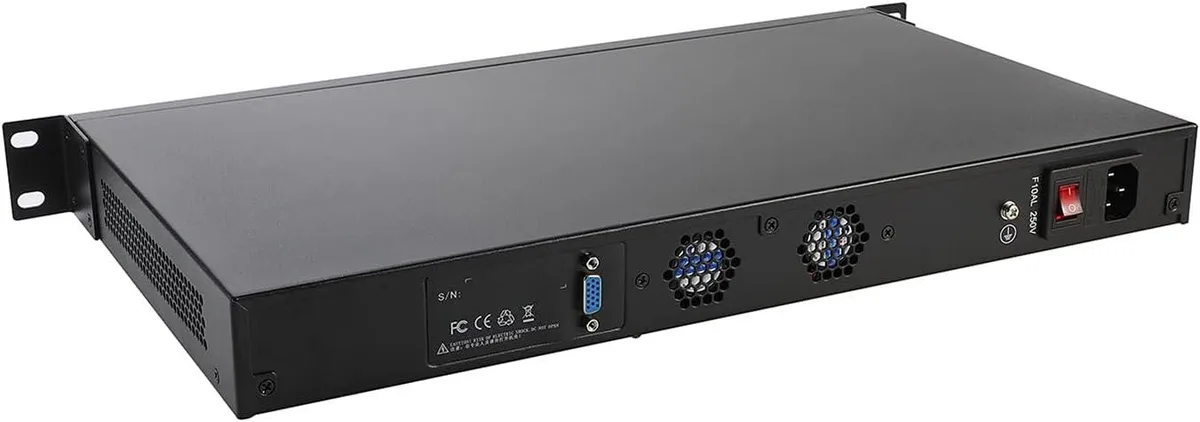

A dedicated ball-bearing silent fan keeps the processor stable during continuous operation while the original industry motherboard minimises power draw and heat output. The 100 W internal supply accepts 100-240 V at 50/60 Hz, so the appliance runs cool and quiet in a standard rack or wall-mount position. Measured LAN-to-WAN forwarding reaches 1 Gbps across the six 82583V/82574L controllers without thermal throttling.

Flexible mounting and expansion

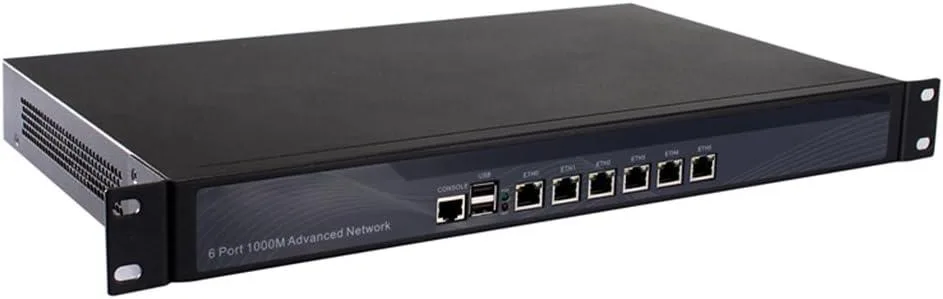

The 1U chassis measures 430 x 250 x 50 mm and includes rack ears, wall-hanging brackets and rubber foot pads for shelf, wall or cabinet installation. One 2.5/3.5 inch drive bay and one mSATA slot allow storage upgrades up to 8 GB total RAM via a single SODIMM slot. Console, VGA, two USB ports and a power switch are accessible on the front panel, while optional Wi-Fi can be added on request.

Highlights

  • Intel Core i7-3520M up to 3.60 GHz powers demanding firewall workloads
  • 6 Intel Gigabit LAN ports deliver 1000 Mbps throughput for high-speed routing
  • AES-NI support accelerates encryption for pfsense, opnsense, untangle deployments
  • 19-inch 1U rackmount chassis with silent cooling fan fits standard cabinets
  • 4 GB DDR3 RAM and 128 GB mSATA SSD provide instant boot and log storage

Specifications

ModelR11-I7 3520M-New-4G128G
Firewall TypeCabinet Type
TypeWired
Throughput1000 Mbps
LAN Ports6 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

How do I rack-mount the 19-inch 1U chassis and what step is often missed?

Attach the supplied mounting-bracket ears to the front of the chassis, then secure the ears to the rack rails with screws; the step often missed is tightening the rear cage-nuts so the unit cannot pivot forward under cable strain.

Which memory module and storage drive will need replacement or upgrade first?

The single DDR3 SODIMM slot holds up to 8 GB at 1333 or 1600 MHz, so adding a second 4 GB stick or moving to 8 GB is the first RAM upgrade; the 128 GB mSATA SSD is the primary drive and will need replacement when capacity or write endurance runs out.

What thermal limit appears first during continuous 1 Gbps throughput?

The Intel Core i7-3520M reaches its maximum turbo frequency of 3.60 GHz under sustained load, and the 100 W power supply combined with the single ball-bearing fan defines the cooling ceiling before throttling occurs.
