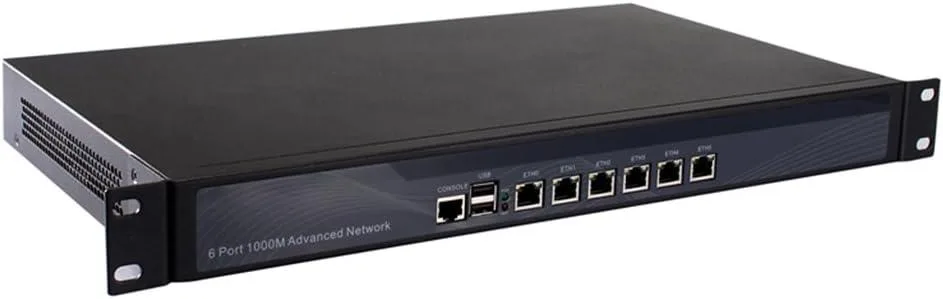

Silver 1U rackmount box with six LAN ports front and rear

partaker

Partaker R11 firewall appliance Intel Core i7-3520M 8GB RAM 64GB SSD 6 Intel Gigabit LAN 1U rackmount

SKU CH-4AHZ-YJE5C

A 1U rackmount firewall appliance with an Intel Core i7-3520M processor, 8 GB DDR3 RAM, 64 GB mSATA SSD and six Intel Gigabit LAN ports

  • Firewall TypeCabinet Type
  • TypeWired
  • Throughput1000 Mbps
  • LAN Ports6 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • Intel Core i7-3520M up to 3.60 GHz powers demanding firewall workloads
  • 6 Intel Gigabit LAN ports deliver 1000 Mbps WAN-to-LAN throughput
  • 8 GB DDR3 RAM and 64 GB mSATA SSD run pfsense, OPNsense or Untangle out of the box
  • 1U 19-inch rackmount chassis with mounting ears fits standard cabinets
  • AES-NI hardware acceleration secures VPN traffic efficiently

Purpose-built network appliance

The Partaker R11 is a 1U rackmount firewall appliance designed for small to medium network deployments. It ships with an Intel Core i7-3520M processor, 8 GB DDR3 memory and a 64 GB mSATA SSD pre-installed. The unit runs RouterOS and supports popular open-source firewall distributions such as pfSense, OPNsense and Untangle.

Six Intel Gigabit LAN ports

The decisive specification is the six onboard Intel 82583V/82574L controllers providing 10/100/1000 Mbps wired throughput. Measured LAN-to-WAN forwarding reaches 1 Gbps, so this appliance suits gateways that must saturate a full gigabit uplink without adding extra NICs.

Rackmount form factor with expansion

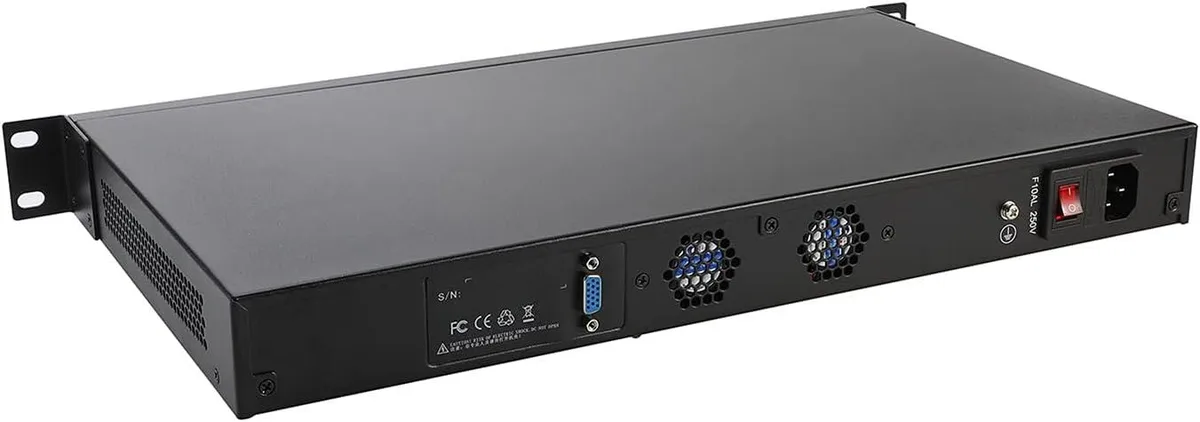

The 19-inch 1U chassis includes mounting ears, wall brackets and a 100 W 100-240 V power supply, leaving a 2.5/3.5-inch drive bay and an mSATA slot free for additional storage. Console, VGA and two USB ports give local management access, while the single SODIMM slot is already populated to its 8 GB maximum.

Highlights

  • Intel Core i7-3520M up to 3.60 GHz powers demanding firewall workloads
  • 6 Intel Gigabit LAN ports deliver 1000 Mbps WAN-to-LAN throughput
  • 8 GB DDR3 RAM and 64 GB mSATA SSD run pfsense, OPNsense or Untangle out of the box
  • 1U 19-inch rackmount chassis with mounting ears fits standard cabinets
  • AES-NI hardware acceleration secures VPN traffic efficiently

Specifications

ModelR11-I7 3520M-New-8G64G
Firewall TypeCabinet Type
TypeWired
Throughput1000 Mbps
LAN Ports6 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

What real-world throughput can I expect from the 1000 Mbps LAN-to-WAN rating?

The supplier tests show forwarding speed reaches 1 Gbps through the Intel 82583V/82574L controllers, so the appliance can saturate a full gigabit link in practice.

Which Ethernet controller standard is used and what speed does it cap at?

Six Intel 82583V/82574L controllers provide 10/100/1000 Mbps wired speed, limiting each port to a maximum of 1 Gbps.

What rack space and mounting hardware does the 1U chassis need?

It fits a standard 19-inch rack at 430 x 250 x 50 mm and ships with mounting bracket ears for rack, wall or desktop installation.
