Silver 1U rackmount appliance, six RJ45 ports front, VGA USB console rear

partaker

Partaker R11 firewall appliance Intel Core i7-3520M 8GB 512GB SSD 6 Intel Gigabit LAN 1U rackmount

SKU CH-TFF1-KW7H6

1U rack-mount firewall appliance with an Intel Core i7-3520M processor, 8 GB DDR3 memory, 512 GB mSATA SSD and six Intel Gigabit LAN ports

  • Firewall TypeCabinet Type
  • TypeWired
  • Throughput1000 Mbps
  • LAN Ports6 x RJ-45
  • Wired Speed10/100/1000 Mbps
  • OS SupportRouterOS
  • High-performance Intel Core i7-3520M processor up to 3.60 GHz for demanding network tasks
  • Six Intel Gigabit LAN ports provide 1000 Mbps throughput for fast wired connectivity
  • 8 GB DDR3 memory and 512 GB mSATA SSD deliver responsive storage and multitasking
  • Compact 1U 19-inch rackmount chassis with mounting ears fits standard cabinets
  • AES-NI hardware acceleration and broad OS compatibility enable secure firewall deployments

Partaker R11 1U firewall appliance

The Partaker R11 is a 19-inch 1U rackmount network appliance built around an Intel Core i7-3520M processor with AES-NI support. It ships with 8 GB of DDR3 memory and a 512 GB mSATA SSD, ready for immediate deployment. Six Intel Gigabit LAN ports provide high-throughput wired connectivity for routing, firewall or VPN duties. The unit supports FreeBSD-based router platforms, Linux distributions and Windows, making it suitable for pfSense, OPNsense, Untangle and similar open-source solutions.

Silent ball-bearing fan with 100 W universal supply

Cooling is handled by a dedicated ball-bearing silent fan that keeps the processor stable during continuous operation. The supplier notes the original industrial motherboard draws low power and produces minimal heat. A 100 W internal power supply accepts 100-240 V at 50/60 Hz, eliminating the need for an external adapter. Measured LAN-to-WAN forwarding throughput reaches 1 Gbps through the Intel 82583V/82574L controllers.

Rack ears wall-mount feet and expansion headroom

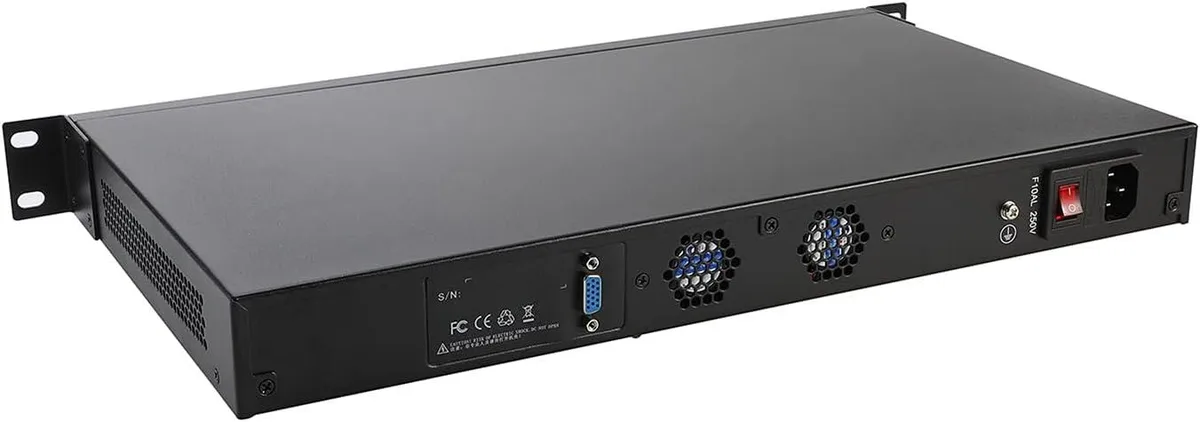

The chassis measures 430 x 250 x 50 mm and weighs 6.5 kg, supplied with rack-mount ears, wall-hanging brackets and rubber feet for flexible placement. Front and rear I/O includes console, VGA, two USB ports, six RJ-45 ports and a power switch. One 2.5/3.5-inch drive bay remains open for additional storage, and a Wi-Fi module can be added on request. No separate keyboard, monitor or switch is included in the pack.

Highlights

  • High-performance Intel Core i7-3520M processor up to 3.60 GHz for demanding network tasks
  • Six Intel Gigabit LAN ports provide 1000 Mbps throughput for fast wired connectivity
  • 8 GB DDR3 memory and 512 GB mSATA SSD deliver responsive storage and multitasking
  • Compact 1U 19-inch rackmount chassis with mounting ears fits standard cabinets
  • AES-NI hardware acceleration and broad OS compatibility enable secure firewall deployments

Specifications

ModelR11-I7 3520M-New-8G512G
Firewall TypeCabinet Type
TypeWired
Throughput1000 Mbps
LAN Ports6 x RJ-45
Wired Speed10/100/1000 Mbps
OS SupportRouterOS

Questions about this item

How do I mount the 1U chassis in a 19-inch rack and which step is often missed?

Attach the supplied rack ears to the 430 mm wide chassis, slide it into the rack and secure both front and rear brackets; the rear supports are the step most installers forget.

Which memory module will need replacement if I want more than 8 GB?

The single SODIMM DDR3/L slot is already populated at the 8 GB maximum, so any upgrade requires removing the existing stick and is limited to 1333 or 1600 MT/s modules.

What throughput ceiling appears first during continuous 1 Gbps forwarding?

The six Intel 82583V/82574L controllers and the 100 W power supply limit sustained LAN-to-WAN throughput to 1000 Mbps.
