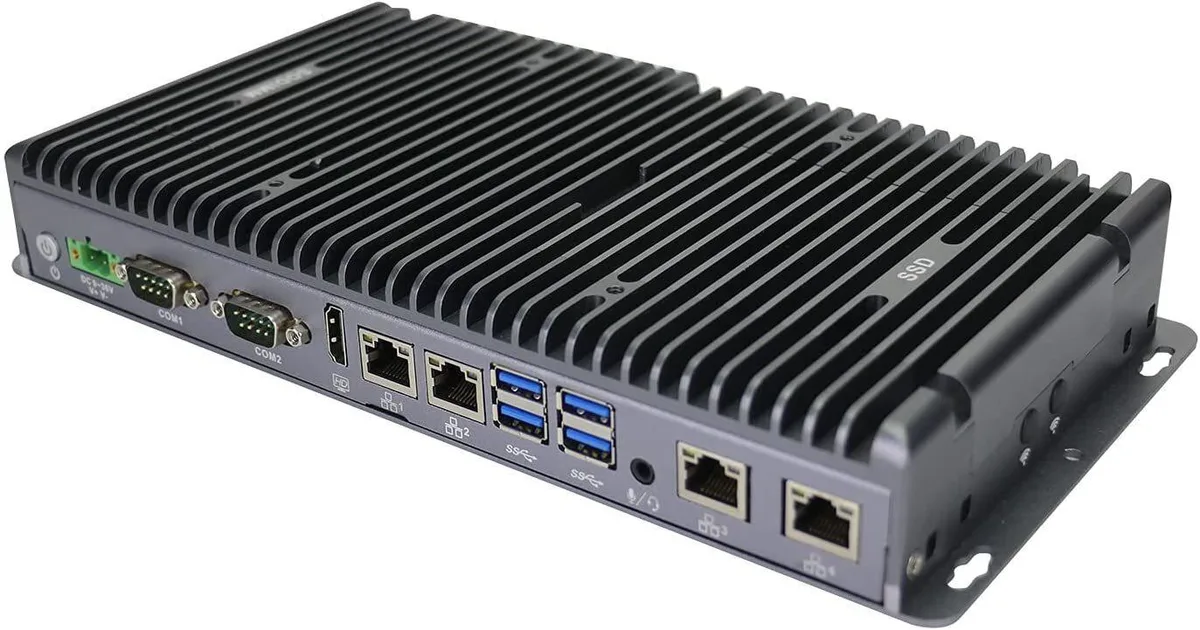

Compact gray aluminum fanless mini PC with mounting ears

partaker

partaker PA-3046 barebone mini PC i5-10310U 8GB 256GB

SKU CH-YMH9-4GRYR

Fanless industrial mini PC with a 10th Gen Core i5, 8 GB DDR4, 256 GB SATA SSD, four Gigabit LAN ports and configurable COM ports for wide-voltage 9–36 V deployment

  • ColorGray
  • CPU TypeIntel Core i5 10th Gen
  • Fanless aluminium chassis enables silent operation in noise-sensitive spaces
  • Intel Core i5-10310U delivers up to 4.40 GHz for responsive multitasking
  • Four Intel Gigabit LAN ports provide redundant wired connectivity for industrial networks

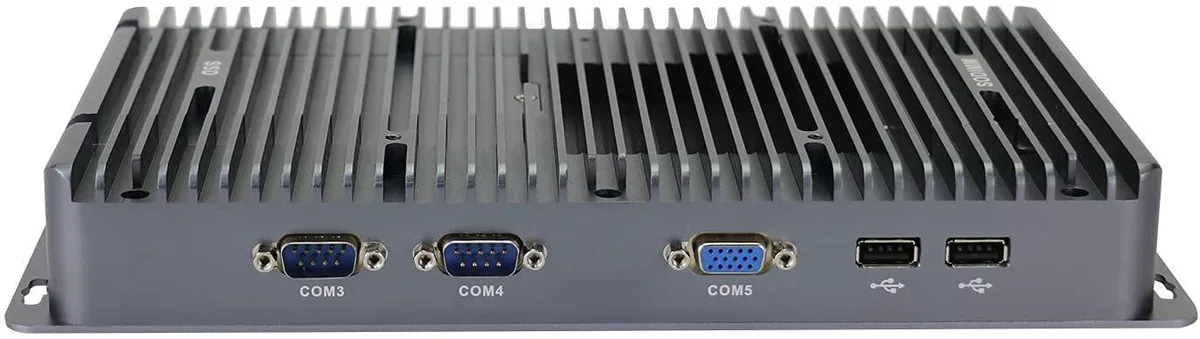

  • Six COM ports with RS232/422/485 options support diverse legacy equipment
  • 9–36 V DC input with polarity protection suits vehicle and factory power systems

Industrial Mini PC Barebone

The Partaker PA-3046 is a fanless industrial computer built around an Intel Core i5-10310U processor with 6 MB cache and up to 4.40 GHz. It ships with 8 GB of DDR4 memory and a 256 GB M.2 2280 SATA SSD in a rugged aluminum chassis measuring 280 x 143 x 40 mm. Designed for embedded deployment, it operates on a 9–36 V DC input with polarity protection and offers versatile mounting options including desktop, wall and VESA configurations.

Suited For And Limitations

This unit suits integrators who need four Intel gigabit LAN ports, dual-display output via HDMI and VGA, and six COM ports configurable for RS232, RS422 or RS485. The fanless design and wide operating range of -20 °C to 60 °C with industrial storage fit harsh environments. Buyers who need active cooling, a higher TDP processor, or expansion beyond the single Mini PCIe slot with SIM should look at other platforms.

Deciding Specification

The M.2 2280 slot accepts SATA SSDs only, so storage upgrades must use the SATA protocol rather than PCIe. A second 2.5-inch SATA bay supports RAID 0 or 1 configurations for redundancy or capacity. Memory maxes out at 32 GB in a single SO-DIMM slot, and the 15 W TDP is cooled passively through the aluminum chassis.

Highlights

  • Fanless aluminium chassis enables silent operation in noise-sensitive spaces
  • Intel Core i5-10310U delivers up to 4.40 GHz for responsive multitasking
  • Four Intel Gigabit LAN ports provide redundant wired connectivity for industrial networks
  • Six COM ports with RS232/422/485 options support diverse legacy equipment
  • 9–36 V DC input with polarity protection suits vehicle and factory power systems

Specifications

ColorGray
CPU TypeIntel Core i5 10th Gen

Questions about this item

How do I confirm the fanless i5-10310U system is running correctly after installation?

Verify the unit powers on via the 2-pin Phoenix connector with 9–36 V DC, check that the Intel i210/i211 LAN LEDs show link activity on all four ports, and confirm dual-display output on HDMI and VGA.

What ships with the PA-3046 and what must I source separately?

The barebone includes the aluminium chassis, motherboard with soldered i5-10310U, 8 GB DDR4 SO-DIMM, 256 GB M.2 2280 SATA SSD, 12 V 5 A adapter, and mounting ears; add a 2.5" SATA drive for RAID 0/1 or extra storage, and a Mini PCIe 4G/Wi-Fi module with SIM if needed.

Which memory and storage configuration suits a fanless industrial deployment?

The board has one DDR4 SO-DIMM slot supporting up to 32 GB; the installed 8 GB module leaves room for a single upgrade. For storage, the 256 GB M.2 2280 SATA SSD handles the OS, while the 2.5" bay accepts an industrial-grade SATA SSD for wide-temperature operation and RAID 0/1 redundancy.
