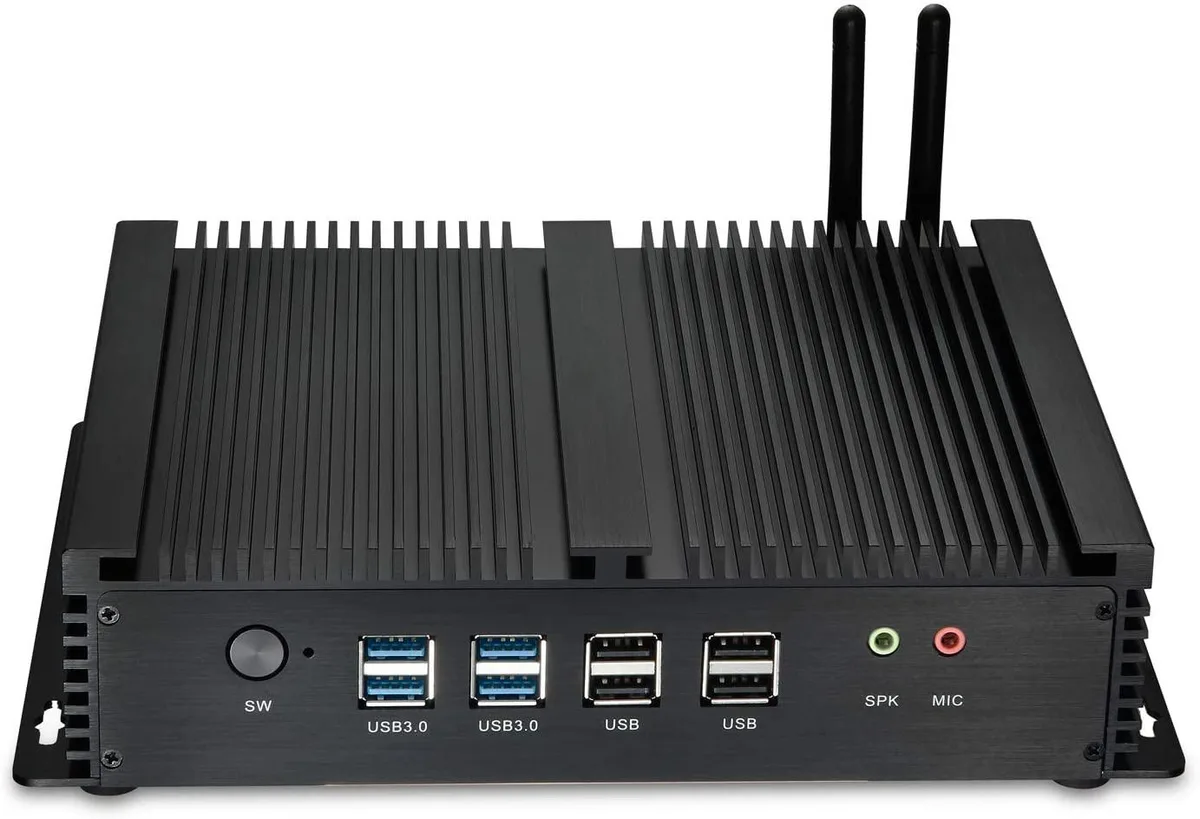

Compact black aluminium mini PC with mounting ears

partaker

Partaker I4 barebone mini PC i7-4500U/4578U 8GB 128GB

SKU CH-1X3F-6V3KR

Fanless industrial mini PC with Intel Core i7 4500U or 4578U, 8GB DDR3L RAM, 128GB SSD, dual HDMI, six COM ports and dual LAN

  • ColorBlack
  • CPU TypeIntel Core i7 4th Gen

CPU Type Intel Core i7

Group 8GB / 128GB SSD

  • Fanless cooling enables silent 24/7 operation in industrial settings
  • Intel Core i7 4500U or 4578U provides strong compute for demanding workloads
  • Windows 11 Pro pre-installed allows immediate deployment without setup
  • Dual HDMI supports two independent displays for monitoring or signage
  • Six COM RS232 ports connect legacy industrial equipment directly

Industrial barebone with i7-4500U/4578U

The Partaker I4 is a fanless mini PC built around a 4th-generation Intel Core i7 processor, either the 4500U or 4578U, with 8 GB of DDR3L memory and a 128 GB mSATA SSD. Windows 11 Pro is pre-installed, so the system is ready for immediate deployment in industrial or embedded environments. Its aluminium chassis includes mounting ears for fixed installation.

Fanless cooling at 15 W typical draw

Passive cooling eliminates moving parts, allowing continuous 24/7 operation between 0 °C and 70 °C. The unit typically consumes 15 W and peaks at 25 W under load, powered by an external 12 V 5 A adapter that accepts 100–240 V AC input. Silent running suits noise-sensitive locations such as control rooms, digital signage or medical stations.

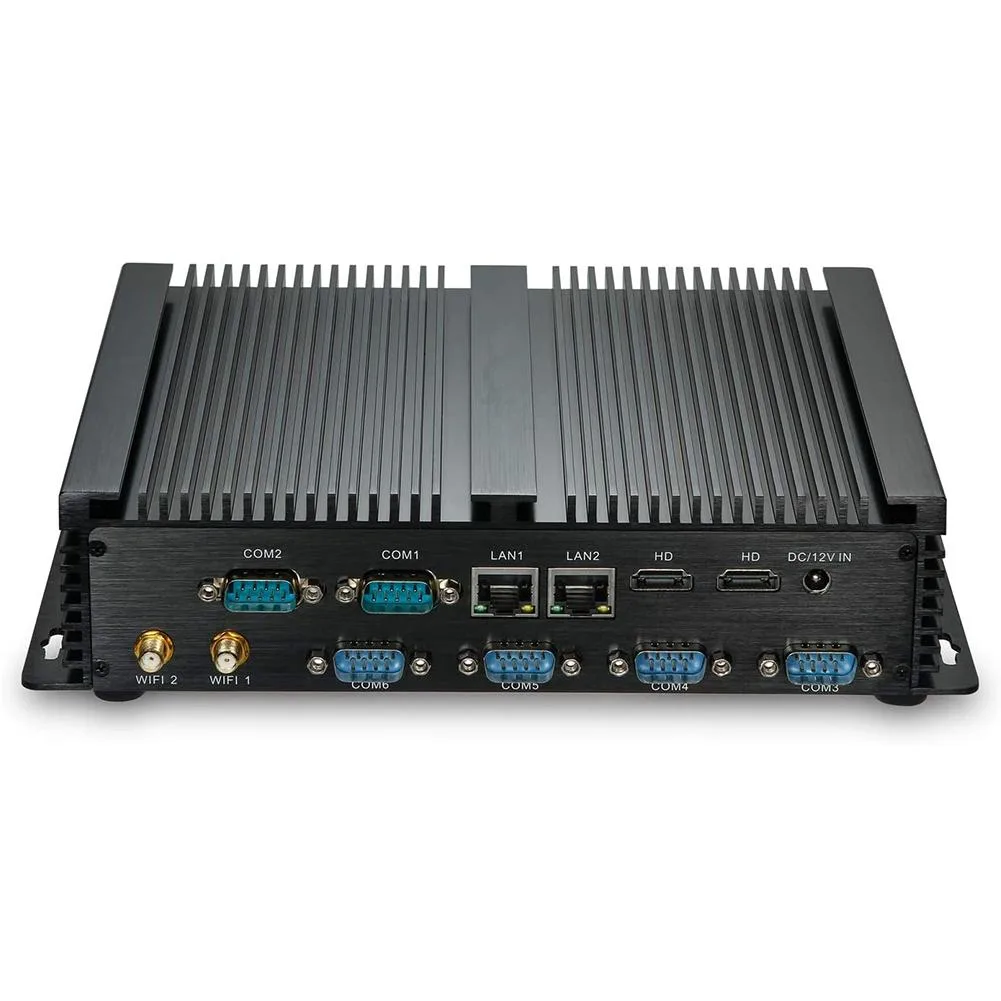

Dual HDMI plus six COM ports

Two HDMI outputs drive independent or mirrored displays for multi-monitor setups. Six RS232 serial ports, dual Intel 2.5 GbE LAN, four USB 3.0 and four USB 2.0 ports provide extensive legacy and modern I/O for PLCs, sensors, barcode scanners and other industrial peripherals. Wi-Fi 802.11 ac antennas are included in the pack.

Highlights

  • Fanless cooling enables silent 24/7 operation in industrial settings
  • Intel Core i7 4500U or 4578U provides strong compute for demanding workloads
  • Windows 11 Pro pre-installed allows immediate deployment without setup
  • Dual HDMI supports two independent displays for monitoring or signage
  • Six COM RS232 ports connect legacy industrial equipment directly

Specifications

ColorBlack
CPU TypeIntel Core i7 4th Gen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I mount the Partaker I4 and which orientation mistake causes overheating?

Use the integrated mounting ears to fix the 175 x 210 x 45 mm aluminium chassis to a flat metal surface; installing it upright or on insulation blocks the fanless heat path and raises core temperature above the 70 °C limit.

Which storage drive will need replacement first and how do I access it?

The 128 GB mSATA SSD wears out before the 2.5 inch SATA bay; remove the bottom cover, swap the mSATA module, and reinstall the cover to restore capacity.

At what sustained load does the 15 W fanless design hit its thermal ceiling?

Continuous workloads pushing the i7-4500U/4578U near 15 W for more than a few minutes will trigger throttling once the chassis reaches the 70 °C operating maximum.
