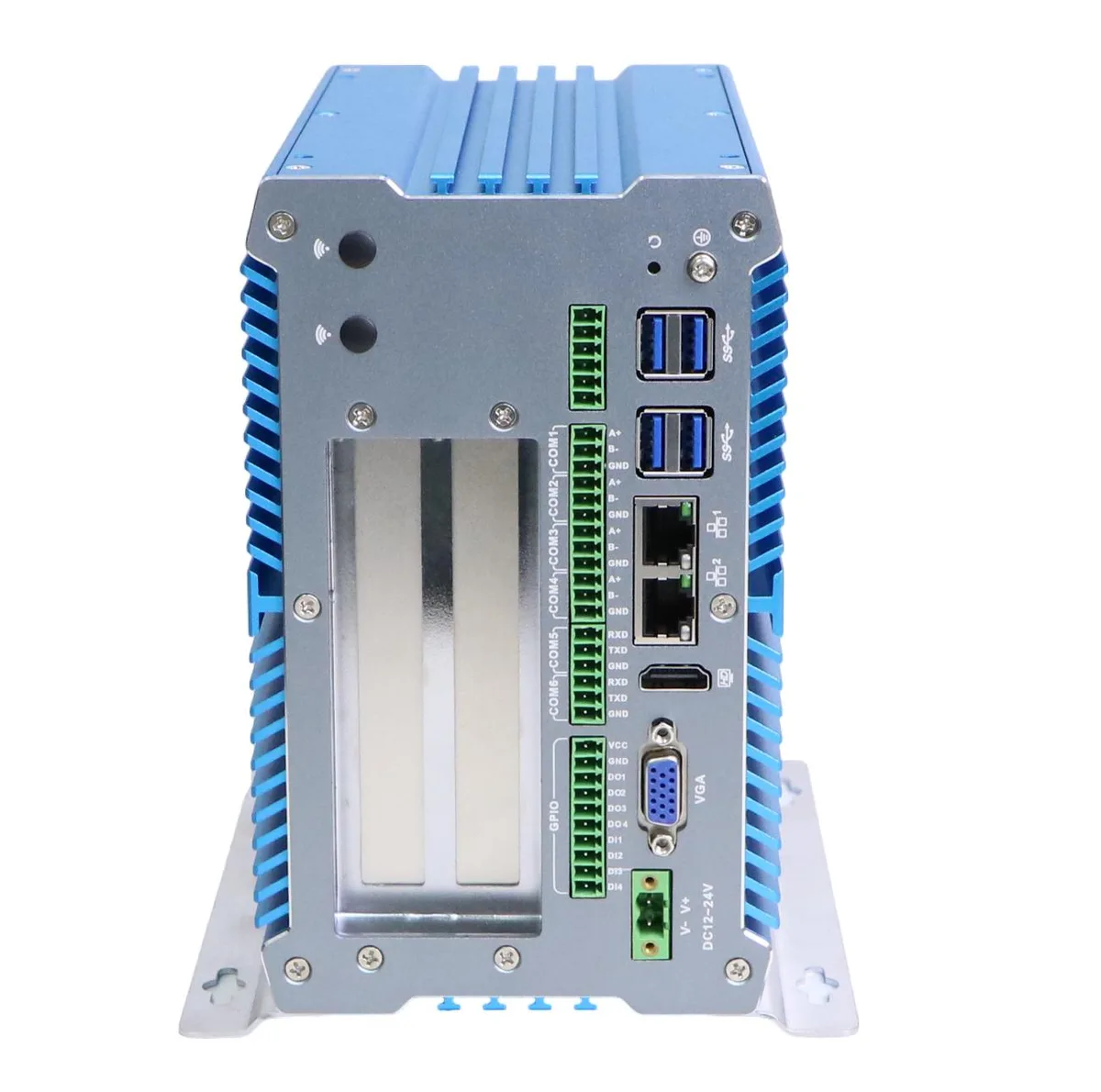

Blue fanless mini PC with aluminium chassis, VGA and HDMI ports, six COM ports, dual LAN, PCIe and PCI expansion slots

partaker

Partaker I33 Industrial System Processor i5-1235U 8GB DDR4 256GB SSD

SKU CH-TP3D-S1MCK

Fanless industrial mini PC with 10-core i5-1235U, 8GB DDR4, 256GB SSD, dual LAN, six COM ports and PCIe/PCI expansion running Windows 11 Pro

  • TypeIndustrial Computer
  • Form FactorMini PC
  • ColorBlue
  • MonitorMonitor not included
  • Operating SystemWindows 11 Pro
  • Windows 11Ready

I5 1235U 8G+256G

  • Powerful 10-core i5-1235U reaches 4.4 GHz for demanding industrial workloads
  • Dual display support via VGA and HDMI enables flexible monitoring setups
  • Extensive industrial I/O includes six COM ports and dual Gigabit Ethernet
  • Expandable with PCIe x4 and PCI slots for specialised add-in cards
  • Wide 12-24V DC input and -20°C to 60°C operation suit harsh environments

Industrial mini PC for automation

The Partaker I33 is a fanless industrial computer built around an Intel Core i5-1235U processor with ten cores and twelve threads, reaching 4.4 GHz maximum turbo frequency. It ships with Windows 11 Pro, 8 GB of DDR4 memory and a 256 GB SATA SSD. The rugged aluminium chassis operates from minus 20 °C to 60 °C on a 12–24 V DC supply, making it suitable for factory floors, medical carts and logistics gateways where silent, continuous operation is required.

Replacing legacy DIN-rail PCs

The jump is worthwhile when an application needs dual independent displays over VGA and HDMI, six serial ports with RS-485 and RS-232 variants, dual Gigabit Ethernet and isolated GPIO in a single compact enclosure. Expansion via a PCIe x4 slot, a PCI slot and M.2 plus mini-PCIe bays lets integrators add field-bus cards, wireless modules or extra storage without redesigning the cabinet. Systems limited to two COM ports, single LAN or no hardware watchdog gain the most from this platform.

Verify mounting clearance.

Confirm the enclosure can accommodate the unit’s aluminium block dimensions and that a 12–24 V DC source with a Phoenix terminal connector is available on site. Check whether the application uses VGA, HDMI or both simultaneously, and plan serial cabling for up to six DB-9 or terminal-block connections. Ensure any add-in cards fit the PCIe x4 and 32-bit PCI slots, and that the single DDR4 SO-DIMM slot meets the project’s memory ceiling of 32 GB.

Highlights

  • Powerful 10-core i5-1235U reaches 4.4 GHz for demanding industrial workloads
  • Dual display support via VGA and HDMI enables flexible monitoring setups
  • Extensive industrial I/O includes six COM ports and dual Gigabit Ethernet
  • Expandable with PCIe x4 and PCI slots for specialised add-in cards
  • Wide 12-24V DC input and -20°C to 60°C operation suit harsh environments

Specifications

TypeIndustrial Computer
Form FactorMini PC
ColorBlue
MonitorMonitor not included
Operating SystemWindows 11 Pro
Windows 11Ready
CPU TypeIntel Core i5 12th Gen
CPU Name4.4 GHz
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity8GB DDR4
Maximum Memory Supported32 GB
SSD256GB
HDDNo
Screen SizeNo Screen
Video Ports1 VGA, 1 HDMI

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

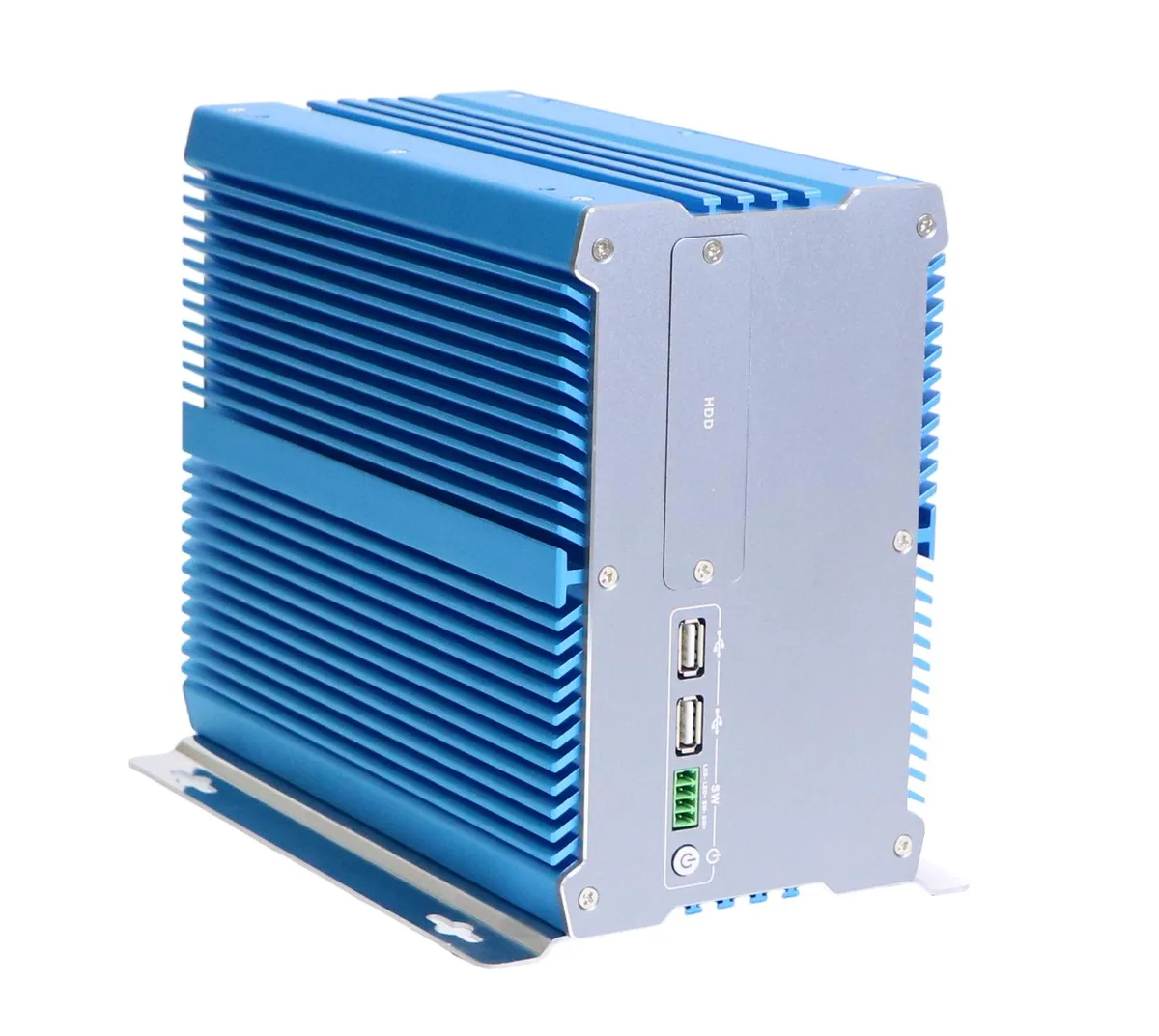

What clearance is needed for the 2.5-inch drawer-style drive bay on the front panel?

The front panel includes a 2.5-inch drawer-style expansion slot; allow enough depth for the tray to slide fully in and secure the SATA drive.

Which BIOS setting must be checked after adding a card to the PCIe x8 or 32-bit PCI slot?

After installing an expansion card, enter the AMI UEFI BIOS and verify the slot is enabled and the correct bus width is detected for the i5-1235U platform.

When should the CMOS be cleared using the rear Clear COMS button?

Press the Clear COMS button on the rear I/O if the system fails to post after a memory upgrade to 32 GB DDR4 3200 or after changing expansion cards.
