partaker I23 i3-1215U 8GB 256GB barebone mini PC

Industrial barebone with triple 4K output

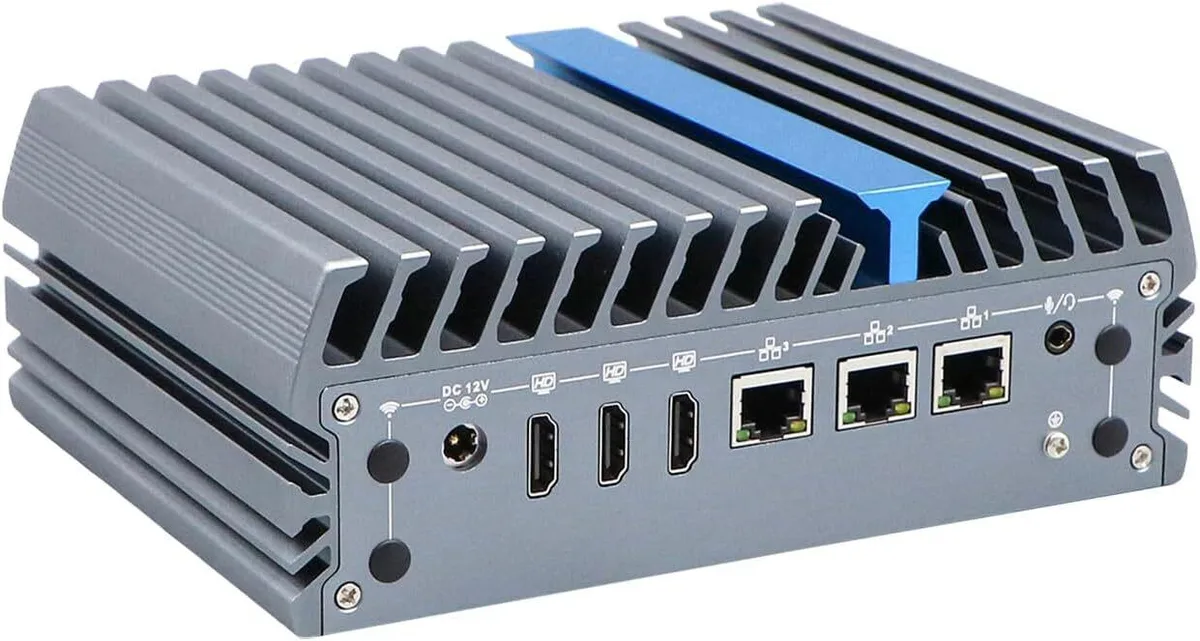

The Partaker I23 is a fanless mini PC built around an Intel Core i3 1215U processor with six cores and eight threads reaching 4.4 GHz. It ships with 8 GB of DDR5 4800 memory and a 256 GB NVMe SSD installed in the single M.2 2280 slot. Three HDMI ports drive independent 4096x2160 displays at 60 Hz, while three 2.5G LAN ports and four USB 3.1 connectors handle high-throughput I/O. The all-aluminium chassis operates silently from -20 °C to 50 °C and measures 186 x 140 x 66 mm at 1.53 kg.

Suits edge gateways and signage.

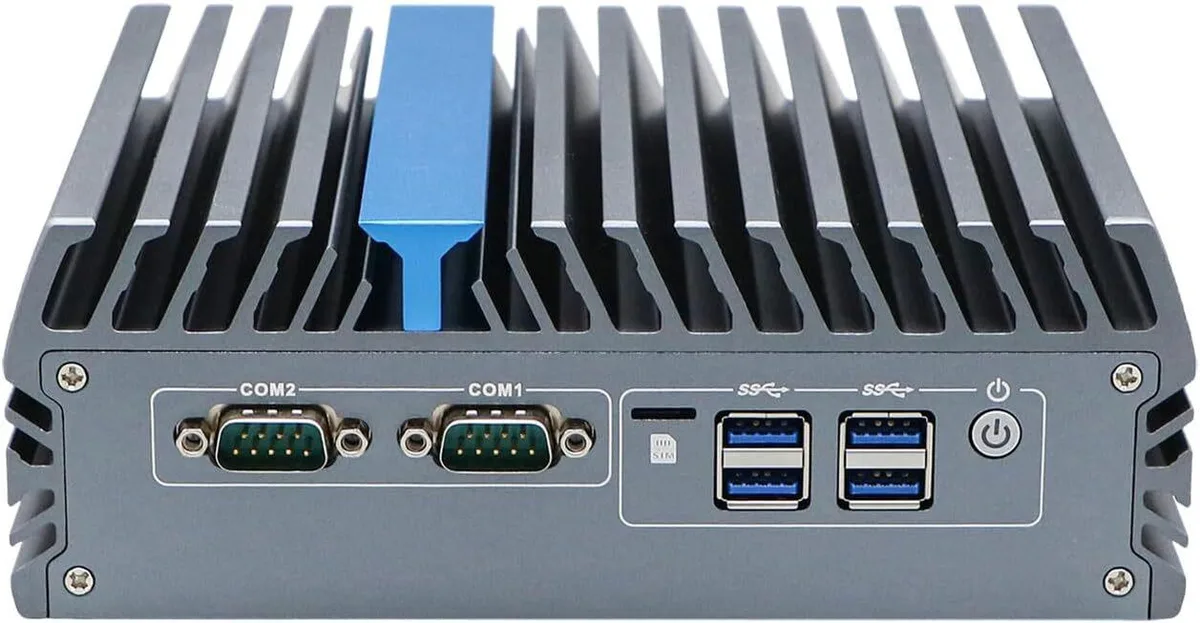

This unit targets integrators deploying industrial automation, medical kiosks, logistics terminals or digital-signage players that need triple-display output, serial ports and 2.5G networking in a sealed enclosure. The 15-55 W TDP envelope and passive cooling rule out sustained compute-heavy tasks such as local AI inference, video transcoding or CAD rendering. Buyers who require a discrete graphics card, additional COM ports beyond the two provided, or a 2.5-inch drive bay populated out of the box should evaluate alternative platforms.

Passive thermal design holds steady at 55 W ceiling

Under continuous load the aluminium body acts as a heatsink, dissipating up to 55 W without fans or throttling in 50 °C ambient air. The 12 V 7.5 A supply feeds the SoC, memory, SSD and all three 2.5G Ethernet controllers simultaneously, so sustained network throughput and multi-display output remain stable. No moving parts means zero acoustic noise and no dust ingress, making the platform viable for 24/7 operation in cabinets, vehicles or outdoor enclosures where active cooling would fail.
