Partaker I10 i7-1255U 8G 128G barebone mini PC

Industrial fanless barebone for edge workloads

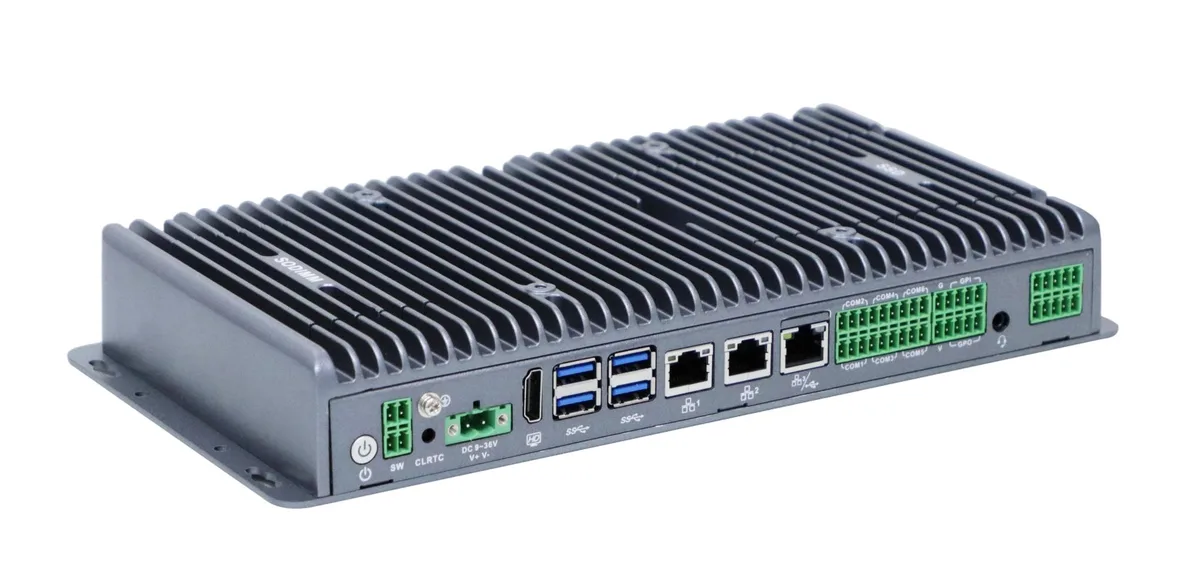

The Partaker I10 arrives as a new fanless mini PC built on an all-aluminium chassis just 40 mm high. An onboard Intel Core i7-1255U delivers 10 cores and 12 threads with a 1.7 GHz base and 4.7 GHz turbo for edge AI, machine vision and automation tasks. The system includes 8 GB of DDR5 4800 MHz memory and a 128 GB SSD, while TPM 2.0 provides hardware-based security for industrial deployments.

Rich I/O and expansion alter deployment flexibility

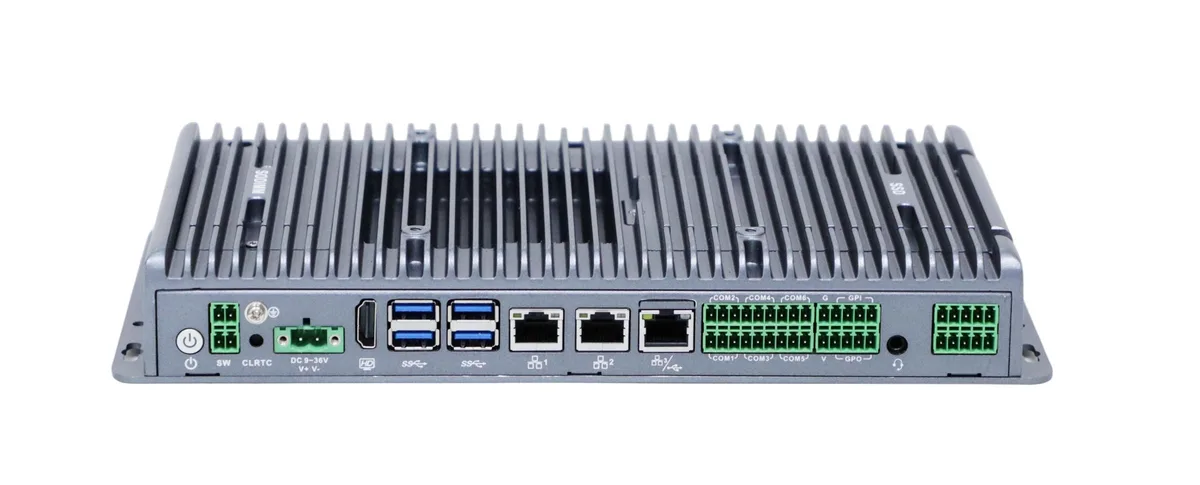

Six COM ports offer isolated RS-485 on the first pair, selectable RS-232/485 on the next pair and RS-232 on the last pair. Three Ethernet ports supply two 1 GbE links and one 2.5 GbE link via Intel i210-AT and i226-LM controllers. Four USB 3.2 ports, an 8-channel GPIO header, dual M.2 2280 slots, a 2.5-inch drive bay, Mini PCIe with SIM slot and an M.2 E-key for WIFI6 modules enable diverse peripheral and storage configurations including RAID 0/1.

Passive cooling and wide voltage set hard

Silent operation depends entirely on the aluminium enclosure dissipating heat within a -20 °C to +60 °C range when an industrial SSD is fitted. The 9 to 36 V DC input with reverse polarity protection suits vehicle or factory power but requires an external supply that matches that window. A single HDMI port limits native display output to one screen, and the 32 GB DDR5 ceiling caps memory-intensive workloads.
