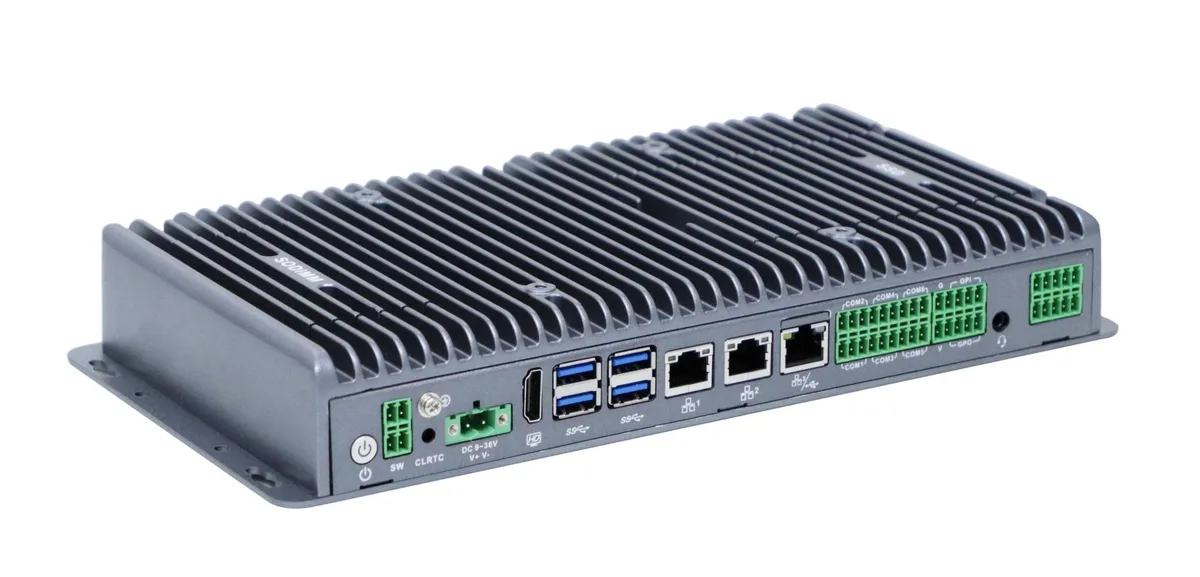

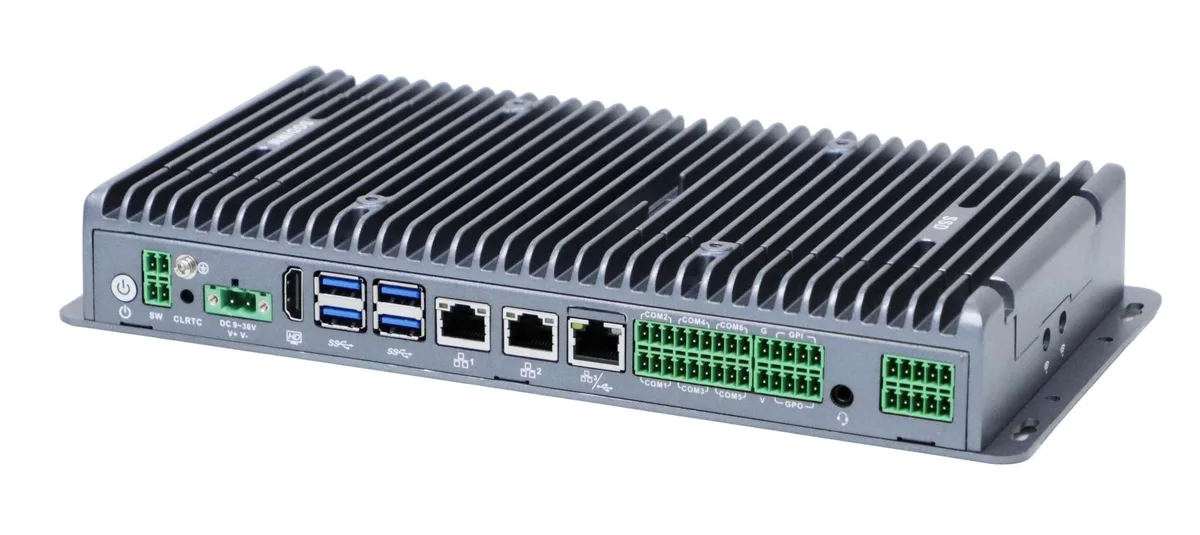

Compact grey aluminium fanless mini PC, 40 mm tall

partaker

partaker I10 barebone mini PC i5-1235U 32G 512G

SKU CH-FAAY-8C2NY

Fanless industrial mini PC with a 10-core i5-1235U, 32 GB DDR5, 512 GB SSD, three Ethernet ports, six COM ports and 9–36 V DC input

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I10 CPU I5 1235U 32GB RAM / 512GB SSD

  • Fanless aluminium chassis runs silently in tight spaces
  • 10-core 12-thread i5-1235U reaches 4.40 GHz turbo for edge workloads
  • 32 GB DDR5 4800 MHz and 512 GB NVMe handle data-intensive tasks
  • Three LAN ports including 2.5 GbE plus six COM ports connect diverse industrial gear
  • 9–36 V DC input with reverse-polarity protection operates from -20 °C to +60 °C

Industrial Fanless Mini PC

The Partaker I10 is a rugged barebone system built around an Intel Core i5-1235U processor with 10 cores and 12 threads reaching 4.40 GHz turbo. It ships with 32GB DDR5 4800MHz memory and a 512GB NVMe SSD installed. The all-aluminium chassis measures 40mm high and operates silently without fans, targeting edge AI, machine vision and automation deployments in space-limited industrial environments.

Sustained Load Thermal Behaviour

Passive cooling across the full aluminium alloy body dissipates heat from the 12M cache CPU during continuous workloads. The platform accepts 9 to 36V DC input with reverse polarity protection and is rated for -20°C to +60°C operation when equipped with an industrial SSD. TPM 2.0 hardware security remains active throughout extended runtime, supporting reliable unattended operation in harsh conditions.

Interface Practical Limits

Dual M.2 2280 slots provide one NVMe x4 lane and one shared NVMe x1 or SATA lane, plus a 2.5-inch bay, all supporting RAID 0/1. Networking uses two Intel I210-AT Gigabit ports and one Intel I226-LM 2.5GbE port. Expansion includes Mini PCIe with SIM slot, M.2 E-Key for WIFI6, and 8-channel GPIO. Display output is limited to a single HDMI port.

Highlights

  • Fanless aluminium chassis runs silently in tight spaces
  • 10-core 12-thread i5-1235U reaches 4.40 GHz turbo for edge workloads
  • 32 GB DDR5 4800 MHz and 512 GB NVMe handle data-intensive tasks
  • Three LAN ports including 2.5 GbE plus six COM ports connect diverse industrial gear
  • 9–36 V DC input with reverse-polarity protection operates from -20 °C to +60 °C

Specifications

ColorGray
CPU TypeIntel Core i5 12th Gen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat does the fanless all-aluminium chassis produce when the i5-1235U runs at 4.4 GHz all day?

The passive all-aluminium design dissipates heat silently; the CPU reaches 4.4 GHz turbo within a -20 °C to +60 °C operating window without any moving parts.

Which power supply must I already have to run the 9–36 V DC Phoenix terminal?

You need a DC source delivering 9–36 V with reverse-polarity protection; the unit ships with a Phoenix terminal block for that supply.

Will the 2.5 GbE Intel i226-LM port negotiate down to 1 GbE on my older switch?

Yes, the 2.5 GbE port is backwards-compatible with 1 GbE and 100 MbE networks, so it works with existing switches.
