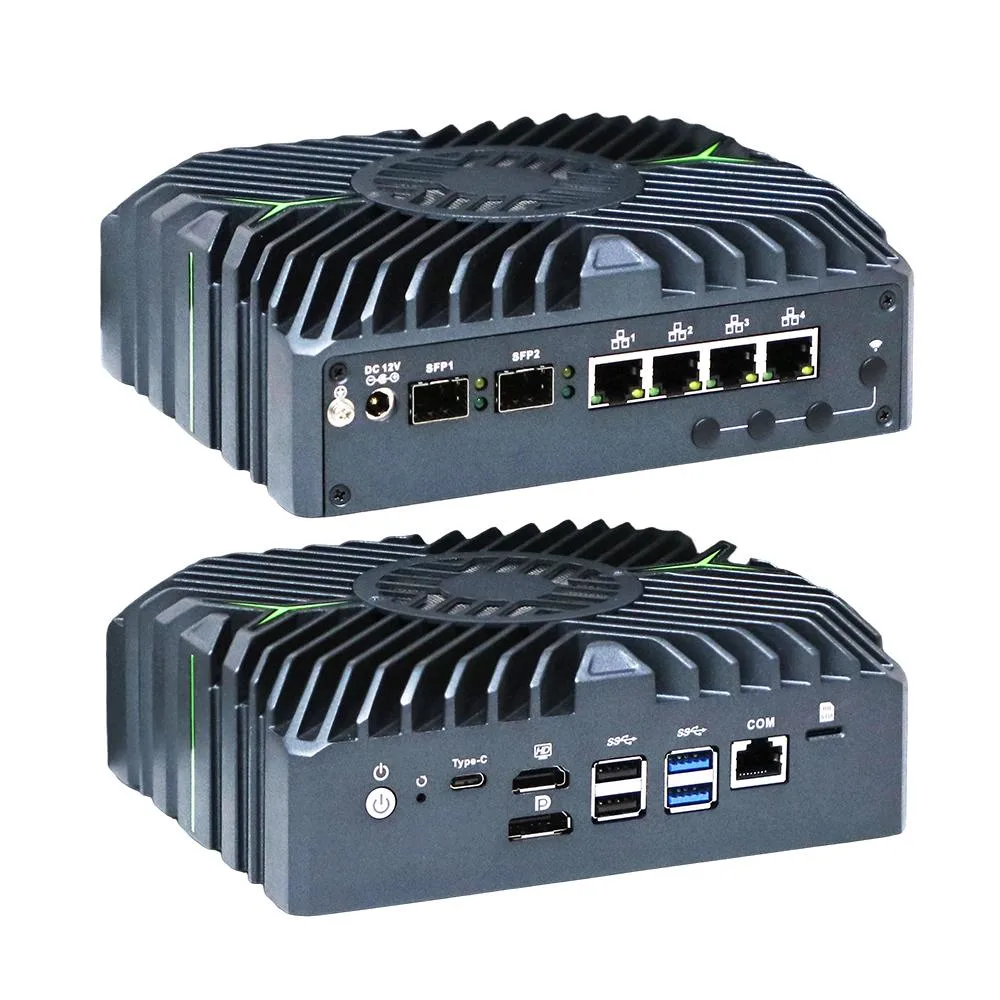

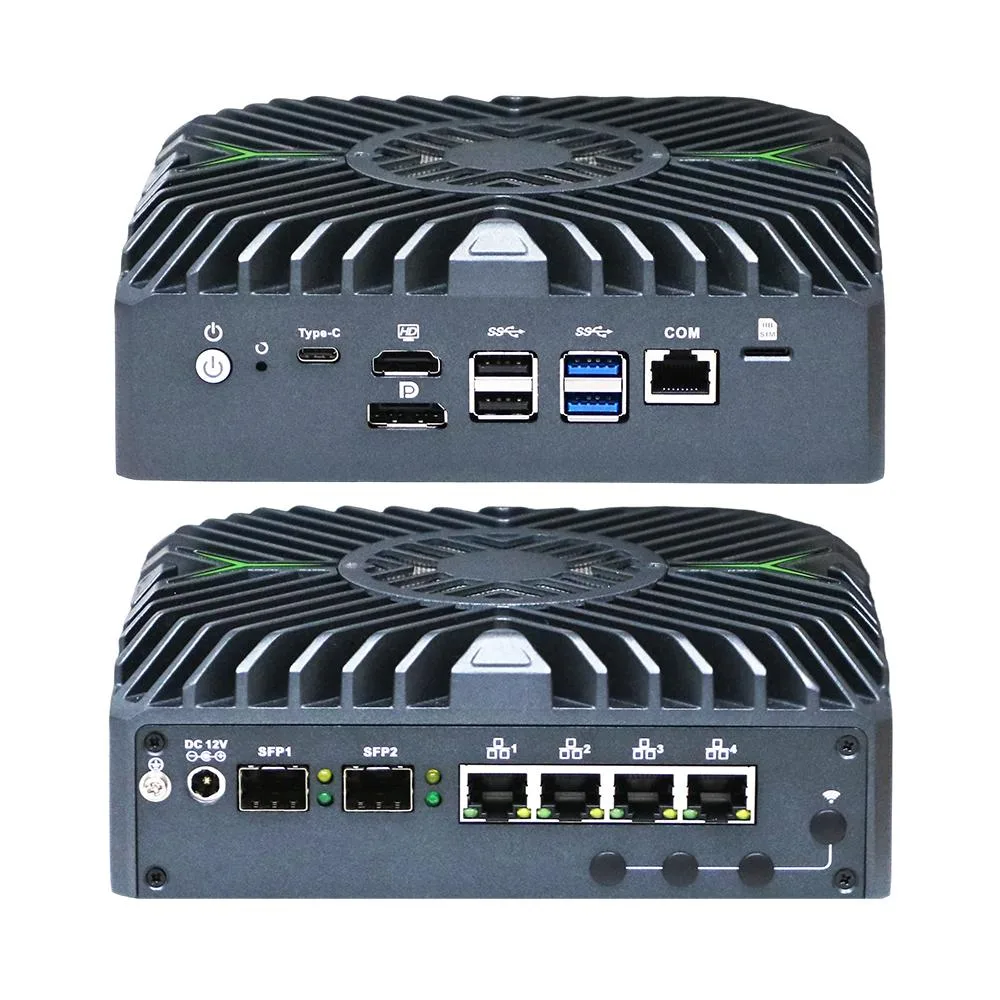

Compact metal-grey mini PC with four 2.5G LAN ports and two 10G SFP+ ports

partaker

Partaker H1 firewall appliance i7-1255U 64GB 1TB

SKU CH-TYW1-D42D5

Compact firewall appliance with an Intel Core i7-1255U, 64 GB DDR5, 1 TB storage, four 2.5 GbE ports, dual 10 GbE SFP+ and triple display output

  • TypeWired
  • LAN Ports4 x RJ-45

H1 Fan I7 1255U 64GB RAM / 1TB SSD

  • 12th Gen Intel Core i7‑1255U with 10 cores and 12 threads up to 4.7 GHz for high firewall throughput
  • Four Intel i226 2.5GbE ports plus dual 10GbE SFP+ 82599 for high‑density network connectivity
  • Triple display via HD, DP and Type‑C up to 4096×2160@60Hz for versatile monitoring
  • Three M.2 slots (2280 NVMe, 2230, 2242/3052) plus external SIM for flexible storage and 4G/5G expansion
  • Aluminium chassis 170×140×58 mm with active fan cooling, TPM 2.0 and wide‑temperature support for industrial reliability

Purpose-built firewall appliance

The Partaker H1 is a compact network security device built around an Intel Core i7-1255U processor with 10 cores and 12 threads reaching 4.7 GHz. It ships with 64 GB of DDR5 memory and a 1 TB NVMe SSD installed. The fan-cooled aluminium chassis measures 170×140×58 mm and includes TPM 2.0, watchdog timer and auto power-on features for continuous operation.

Network interface limits

Six Ethernet ports provide the connectivity backbone: four 2.5 GbE RJ-45 ports driven by Intel i226 controllers and two 10 GbE SFP+ ports using an Intel 82599 controller. LAN1 supports Intel vPro for remote management. The 2.5 GbE ports top out at 2.5 Gbps each while the SFP+ cages accept 10 Gbps fibre modules, so aggregate throughput depends on the switch and cabling used.

Memory ceiling fixed

The system uses two SODIMM slots populated to the platform maximum of 64 GB at 4800 MHz; no further RAM expansion is possible. Buyers who need more memory must choose a different appliance.

Highlights

  • 12th Gen Intel Core i7‑1255U with 10 cores and 12 threads up to 4.7 GHz for high firewall throughput
  • Four Intel i226 2.5GbE ports plus dual 10GbE SFP+ 82599 for high‑density network connectivity
  • Triple display via HD, DP and Type‑C up to 4096×2160@60Hz for versatile monitoring
  • Three M.2 slots (2280 NVMe, 2230, 2242/3052) plus external SIM for flexible storage and 4G/5G expansion
  • Aluminium chassis 170×140×58 mm with active fan cooling, TPM 2.0 and wide‑temperature support for industrial reliability

Specifications

TypeWired
LAN Ports4 x RJ-45

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 64 GB DDR5 4800 MHz configuration or look for a lower capacity?

The unit ships with 64 GB of DDR5 4800 MHz across two SODIMM slots, which is the maximum the platform supports, so there is no lower-capacity version to choose.

What does the i7-1255U 10 core 12 thread 4.7 GHz turbo figure deliver in a firewall workload?

Ten cores and twelve threads at up to 4.7 GHz give ample headroom for deep packet inspection, VPN encryption and multi-gig routing without saturating the CPU.

How do the four 2.5G i226 ports and two 10G SFP+ 82599 ports limit real-world throughput?

Each RJ-45 tops out at 2.5 Gbps while the SFP+ cages reach 10 Gbps, so aggregate throughput is capped by those PHY speeds and the PCIe 4.0 x4 link to the NVMe slot.
