Partaker GF5 barebone mini PC i3-1115G4 16G 256G

Industrial barebone for embedded deployments

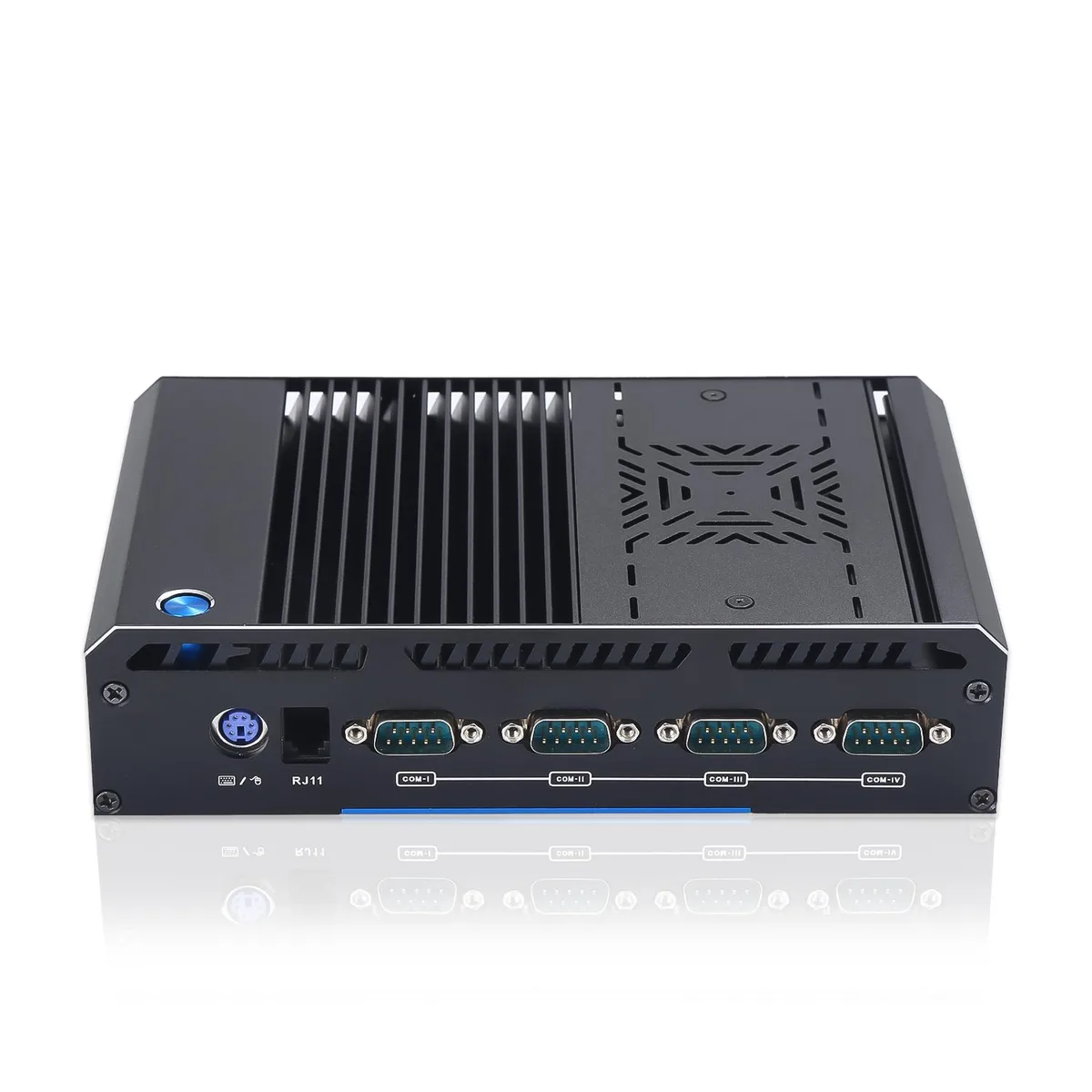

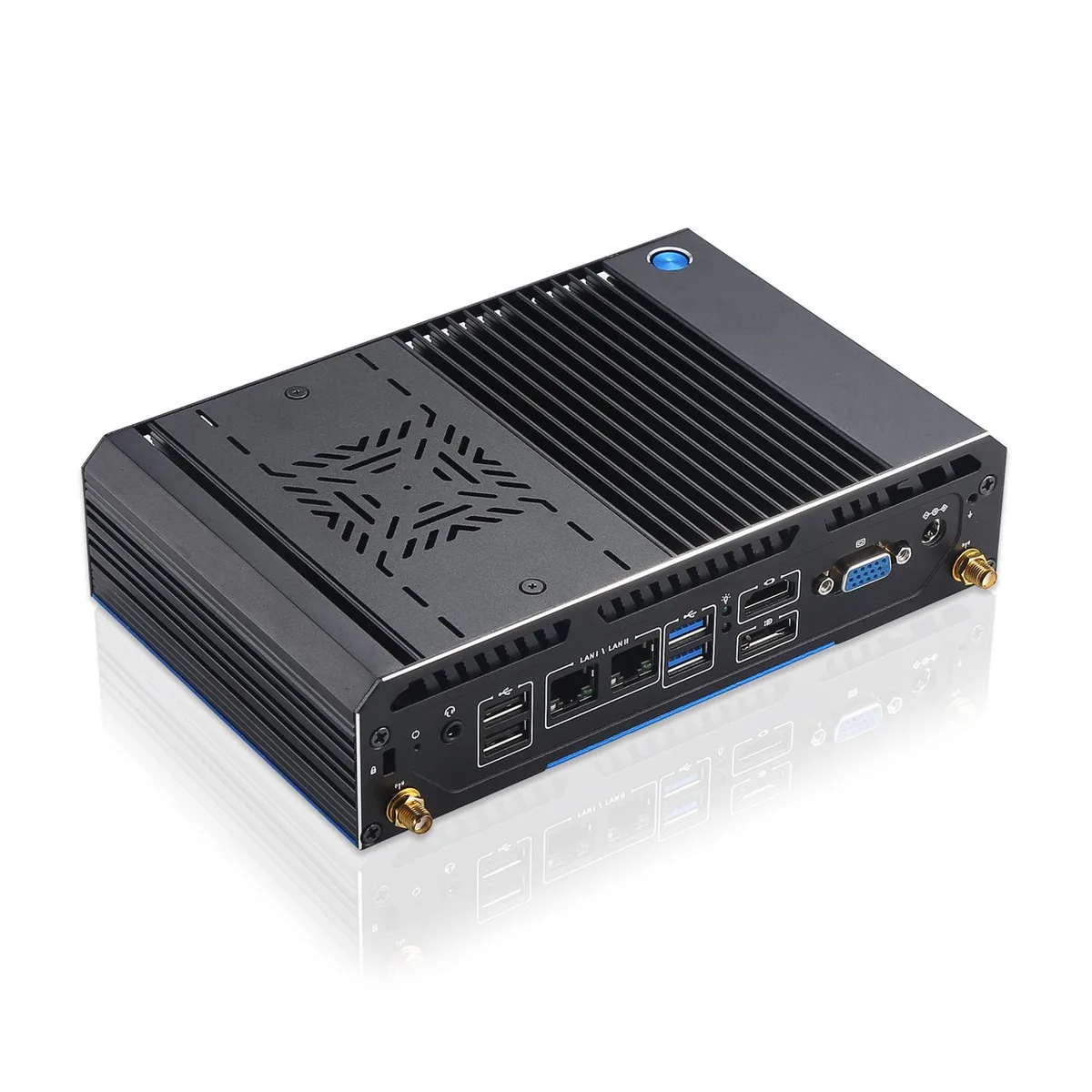

The Partaker GF5 is a fanless mini PC built around an Intel Core i3-1115G4 processor with 16 GB of DDR4L memory and a 256 GB M.2 SATA SSD. Its aluminium chassis operates from -10 °C to 60 °C and provides triple-display output through HDMI, DisplayPort and VGA at up to 4096 x 2304 at 60 Hz. Dual Intel I226-V and Realtek 8111H Gigabit LAN ports plus four COM ports, an RJ11 connector and a PS/2 port give the legacy I/O that industrial automation and kiosk installations still require.

Suits integrators needing legacy I/O

This unit fits digital-signage players, factory-floor HMIs and edge gateways that rely on serial, parallel-style RJ11 or PS/2 peripherals and must survive extended temperature ranges. Buyers who need active cooling for sustained turbo frequencies, discrete graphics acceleration or a 2.5-inch drive bay should consider other form factors. The single M.2 2280 slot supports either SATA or NVMe protocol, but only one drive can be installed at a time.

Single M.2 2280 slot chooses SATA or NVMe storage

The board exposes one M-key 2280 socket that can be switched between SATA and NVMe signalling via a pin header, so the installed 256 GB SSD can be replaced with either technology but not both simultaneously. Two DDR4L SO-DIMM slots allow expansion up to 32 GB total memory. An E-key 2230 socket and a PCIe slot with SIM carrier are available for Wi-Fi, Bluetooth or 5G modules, while PXE boot, watchdog timer and scheduled power-on complete the embedded feature set.
