Black fanless mini PC with four LAN ports

partaker

Partaker C4-J3160-4 LAN-4G32G firewall appliance

SKU CH-EZB2-QEFDF

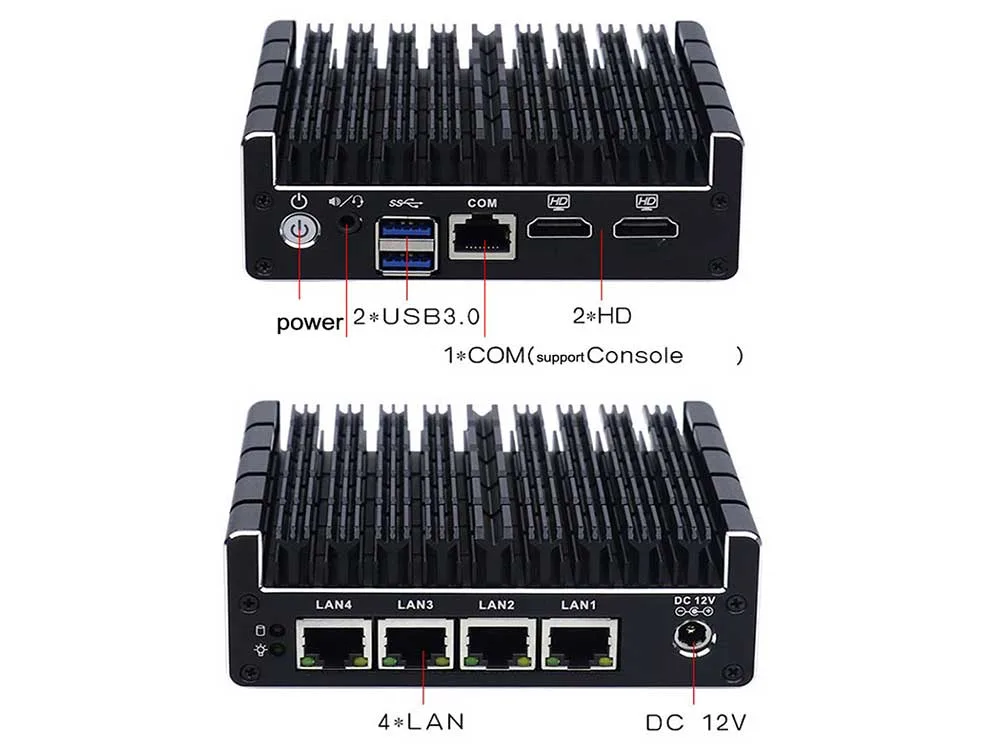

Fanless mini PC with quad-core Celeron J3160, 4 GB DDR3, 32 GB mSATA SSD and four Intel i211AT gigabit LAN ports for firewall or router duties

  • TypeBusiness Desktops & Workstations
  • Form FactorMini PC
  • ColorBlack
  • MonitorMonitor not included
  • Operating SystemWindows 7
  • CPU TypeCeleron

Memory Capacity 4GB DDR3

SSD 32GB

  • Fanless design enables silent operation in noise-sensitive spaces
  • Four Intel i211AT gigabit LAN ports provide high-throughput network segmentation
  • AES-NI hardware acceleration speeds up VPN encryption workloads
  • Compact 115 x 107.5 x 39 mm footprint fits tight desktop or VESA mounts

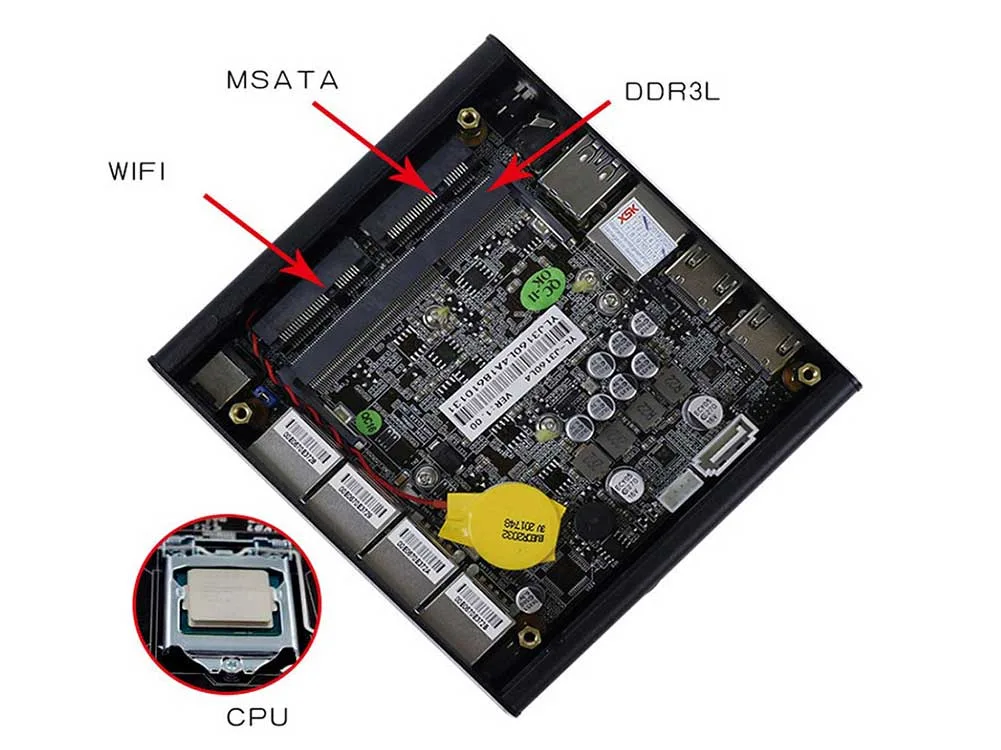

  • DDR3L SODIMM slot supports memory upgrades up to 8 GB

Compact fanless firewall appliance

The Partaker C4-J3160-4 is a fanless mini PC built around an Intel Celeron J3160 quad-core processor running at 1.6 GHz with turbo up to 2.48 GHz. It includes four Intel i211AT gigabit LAN ports, 4 GB of DDR3L memory and a 32 GB mSATA SSD. The system operates silently from -10 to 60 °C and supports pfSense, Windows or Linux for routing, VPN and security duties.

Upgrade from single-port routers

Replacing a basic single-LAN router with this four-port appliance lets you segment WAN, LAN, DMZ and guest networks without adding a separate switch. The AES-NI instruction set accelerates VPN encryption, making the jump worthwhile when IPsec or OpenVPN throughput becomes a bottleneck on older single-core platforms. The DDR3L slot accepts up to 8 GB if larger state tables are needed.

Sustained load without throttling

Passive cooling across the 115 × 107.5 × 39 mm chassis keeps the J3160 at its rated frequencies during continuous packet inspection, logging and VPN traffic. Four independent i211AT controllers prevent interrupt storms from saturating a single queue, while the fanless design eliminates bearing wear in 24/7 deployments. The 12 V DC input and wide temperature range suit embedded or rack-mounted installations.

Highlights

  • Fanless design enables silent operation in noise-sensitive spaces
  • Four Intel i211AT gigabit LAN ports provide high-throughput network segmentation
  • AES-NI hardware acceleration speeds up VPN encryption workloads
  • Compact 115 x 107.5 x 39 mm footprint fits tight desktop or VESA mounts
  • DDR3L SODIMM slot supports memory upgrades up to 8 GB

Specifications

ModelC4-J3160-4 LAN-4G32G
Part NumberC4-J3160-4 LAN-4G32G
TypeBusiness Desktops & Workstations
Form FactorMini PC
ColorBlack
MonitorMonitor not included
Operating SystemWindows 7
CPU TypeCeleron
CPU NameIntel Celeron J3160
GPU/VGA TypeIntel HD Graphics
Graphics InterfaceIntegrated video
Memory Capacity4GB DDR3
SSD32GB
HDDNo
Screen SizeNo Screen
LAN Speed10/100/1000Mbps

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What mounting options exist for the 115 x 107.5 x 39 mm chassis?

The appliance supports desktop, embedded and VESA mounting, so it can be screwed to a monitor arm or tucked into a rack shelf.

Which step is often missed when adding a Wi-Fi card to the half-size Mini-PCIe slot?

The slot carries only USB signalling, so a card requiring PCIe lanes will not work; choose a USB-interface module instead.

What is the maximum RAM upgrade for the single DDR3L SODIMM slot?

The board accepts one DDR3L 1600 MHz module up to 8 GB, doubling the factory 4 GB configuration.
