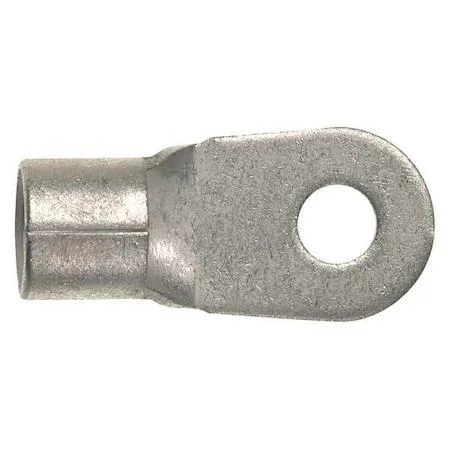

Bare copper ring terminal with #10 stud hole and crimp barrel

Panduit

Panduit P8-10R-Q Ring Terminal #10 Stud 8 AWG 2000 V Bare

SKU CH-MEVG-ZQG5W

Bare copper ring terminal crimps 8 AWG wire for 2,000 V circuits with #10 stud

  • TypeElectrical Connectors
  • Designed for 8 AWG wire with .47 in tongue width
  • Rated 2000 V for high-voltage applications
  • Tin-plated copper contact ensures reliable conductivity
  • Crimp termination with .46 in barrel length for secure connection
  • Meets UL 486A, UL 486B and CSA C 22.2 No. 65 standards

Ring Terminal #10 Stud 8 AWG

This bare copper ring terminal fits a #10 stud and accepts a single 8 AWG conductor. The crimp barrel has a 0.19 in inside diameter and 0.46 in length. It is rated for 2,000 V maximum operating voltage and a 302 °F temperature limit.

Crimp Termination Limits

The termination style is crimp only, requiring an appropriate tool and die for 8 AWG wire. No insulation sleeve is present, so the connection remains exposed. The barrel outside diameter is 0.27 in and tongue width is 0.47 in. Standards met include CSA C22.2 No. 65, UL 486A and UL 486B.

Capacity and Headroom

The connector handles 8 AWG wire exclusively; it cannot accept larger or smaller gauges. Tin-plated copper contacts provide corrosion resistance within the 2,000 V and 302 °F ratings. It is not suited for applications needing insulated barrels, multiple wires, or higher voltage classes.

Highlights

  • Designed for 8 AWG wire with .47 in tongue width
  • Rated 2000 V for high-voltage applications
  • Tin-plated copper contact ensures reliable conductivity
  • Crimp termination with .46 in barrel length for secure connection
  • Meets UL 486A, UL 486B and CSA C 22.2 No. 65 standards

Specifications

BrandPANDUIT
TypeElectrical Connectors

Questions about this item

Should I pick the bare version or an insulated version for an 8 AWG wire?

This terminal is bare with no insulation coverage, so choose it when you will add separate heat-shrink or tape; select an insulated version if you want the barrel already covered.

What does the 2,000 V rating mean when the terminal is crimped in a panel?

The 2,000 V maximum voltage is the dielectric withstand limit of the copper barrel and tin finish once properly crimped to 8 AWG wire.

How does the #10 stud size limit the connection in practice?

The #10 stud size fixes the ring inner diameter to fit a #10 mounting screw, so the terminal can only be bolted to that stud size.
