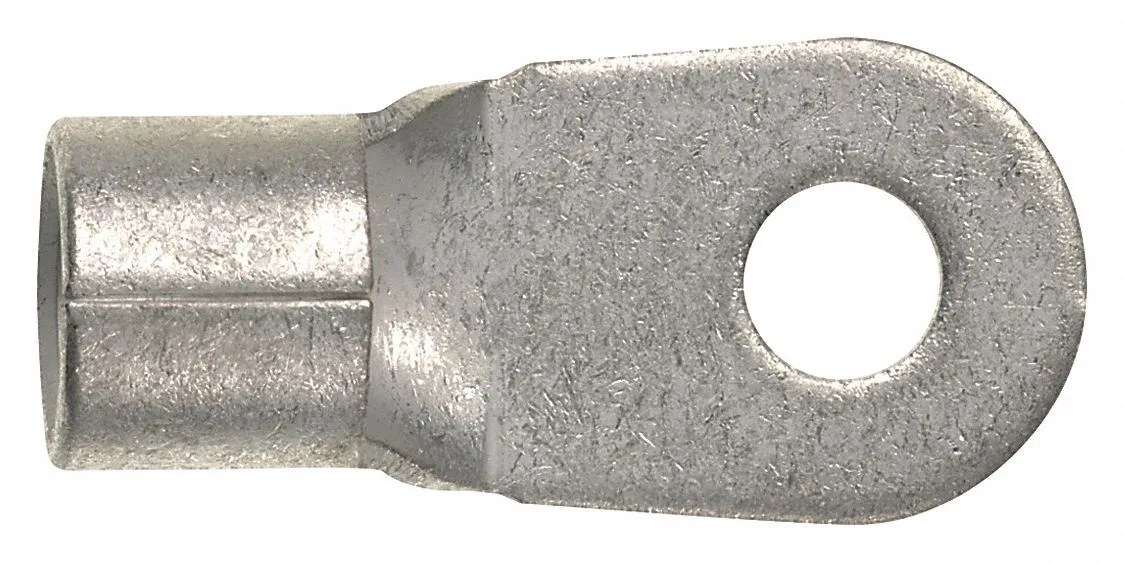

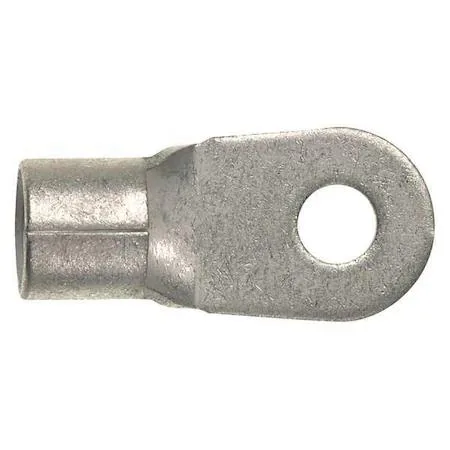

Bare copper ring terminal with 3/8 inch stud hole and crimp barrel

Panduit

Panduit P6-38R-E Ring Terminal 3/8 in Stud 6 AWG 2000 V Bare

SKU CH-Y6XH-7F9HG

Connects 6 AWG wire to a 3/8 inch stud with a bare copper crimp terminal rated for 2,000 volts

  • TypeElectrical Connectors
  • 3/8 in stud fits standard automotive terminals
  • 6 AWG copper barrel handles heavy-gauge wiring
  • 2,000 V rating supports high-voltage circuits
  • Tin-plated copper resists corrosion in harsh environments
  • CSA C 22.2 No. 65 and UL 486A/B certified for code compliance

Electrical Connector for 6 AWG

This Panduit ring terminal accepts 6 AWG wire and secures it to a 3/8 inch stud. The bare copper barrel has a tin finish and is rated for 2,000 volts. It suits industrial and automotive wiring that requires a crimped connection.

Crimp Termination with No Insulation

The barrel measures 0.23 inch inside diameter and 0.51 inch length for a 6 AWG conductor. No insulation sleeve is present, so the installer must provide separate insulation or heat shrink. Tongue width is 0.62 inch to fit the specified stud size.

Rated for 302 °F and 2,000 V

Standards met include CSA C 22.2 No. 65, UL 486A and UL 486B. The copper construction handles continuous operation up to 302 degrees Fahrenheit. Builders needing insulated terminals or a different wire gauge must select another part.

Highlights

  • 3/8 in stud fits standard automotive terminals
  • 6 AWG copper barrel handles heavy-gauge wiring
  • 2,000 V rating supports high-voltage circuits
  • Tin-plated copper resists corrosion in harsh environments
  • CSA C 22.2 No. 65 and UL 486A/B certified for code compliance

Specifications

BrandPANDUIT
TypeElectrical Connectors

Questions about this item

What is the maximum operating temperature of the P6-38R-E ring terminal?

The maximum operating temperature is 302 degrees Fahrenheit.

How much heat does the bare copper barrel generate under continuous 2,000 V load?

The bare copper barrel with tin finish conducts current efficiently; temperature rise depends on ambient conditions and crimp quality, not the terminal alone.

Which crimp tool and die are required for the 6 AWG barrel?

Use a crimp tool and die approved for 6 AWG copper lugs with a 0.23-inch barrel inside diameter and 0.51-inch barrel length.
