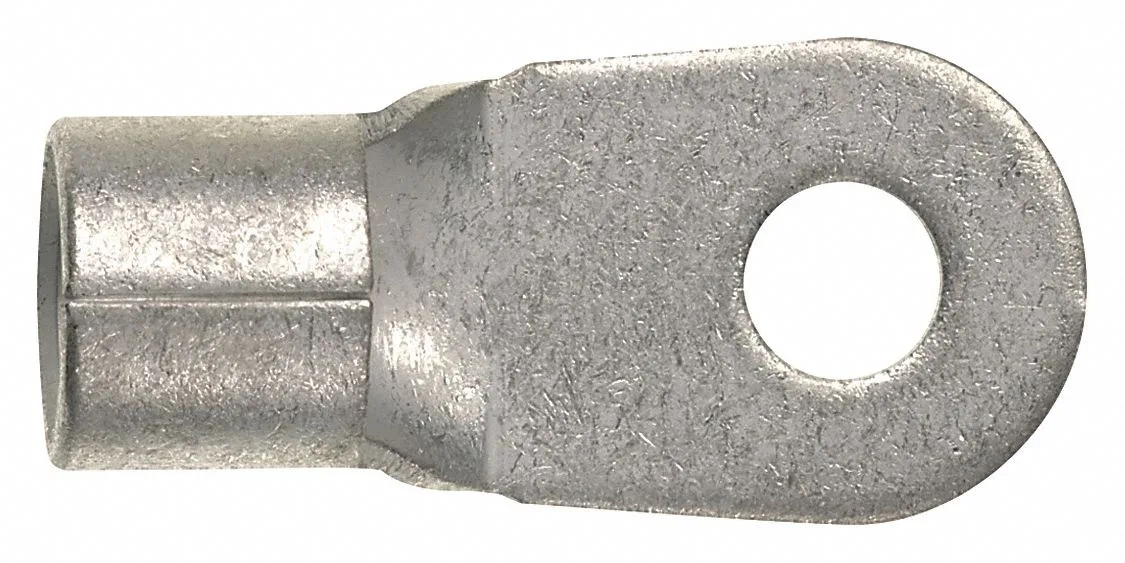

Copper ring terminal, 1/4 in stud, bare finish

Panduit

Panduit P6-14R-E Ring Terminal 1/4 in Stud 6 AWG 2000 V Bare

SKU CH-Q25W-YBAWZ

Bare copper ring terminal for 6 AWG wire with 1/4 in stud, crimp termination, tin-plated contact, rated 2,000 V and 302 °F

  • TypeElectrical Connectors
  • Handles up to 2000 V for high-voltage circuits
  • Rated 302 °F for demanding thermal environments
  • Brazed serrated barrel resists pull-out under vibration
  • Tin-plated copper contact ensures low-resistance connections
  • Meets UL 486A, UL 486B and CSA C22.2 No. 65 standards

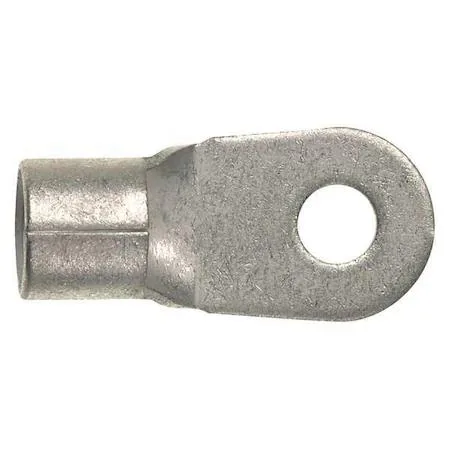

Panduit P6-14R-E Ring Terminal

This Panduit ring terminal connects 6 AWG wire to a 1/4 inch stud using a crimp termination. It is rated for 2,000 volts and a maximum operating temperature of 302 degrees Fahrenheit. The bare copper barrel has a tin finish and a brazed serrated design. This suits installers who need a single-wire lug for high-voltage industrial or automotive circuits.

Standards and voltage limits

The lug meets CSA C 22.2 No. 65, UL 486A and UL 486B standards for wire connectors. Its 2,000 V rating sets the upper bound for the circuit voltage. The barrel inside and outside diameter is 0.23 inch, matching the 6 AWG wire range exactly. It cannot accept larger or smaller conductors without violating the listed wire size.

Bare barrel and stud mounting

The bare barrel has no insulation covering, so the installer must add sleeving or heat shrink where required by code. The tongue width of 0.47 inch fits a 1/4 inch stud, giving a secure bolted connection. The brazed serrated barrel resists pull-out and vibration in panel or vehicle applications. Buyers who need insulated or multi-hole lugs must choose a different part.

Highlights

  • Handles up to 2000 V for high-voltage circuits
  • Rated 302 °F for demanding thermal environments
  • Brazed serrated barrel resists pull-out under vibration
  • Tin-plated copper contact ensures low-resistance connections
  • Meets UL 486A, UL 486B and CSA C22.2 No. 65 standards

Specifications

BrandPANDUIT
TypeElectrical Connectors

Questions about this item

Should I choose the bare 6 AWG ring terminal or a version with insulation?

This terminal has no insulation and a bare copper barrel with tin finish; select it when you need an uninsulated crimp connection for 6 AWG wire.

What does the 2,000 V rating mean when the terminal is crimped in a panel?

The 2,000 V maximum voltage rating applies to the crimped joint, so the connection remains rated for that voltage in service.

How does the 1/4 in stud size limit the bolt I can use?

The tongue accepts a 1/4 in stud, so only bolts or screws of that diameter will fit the terminal.
