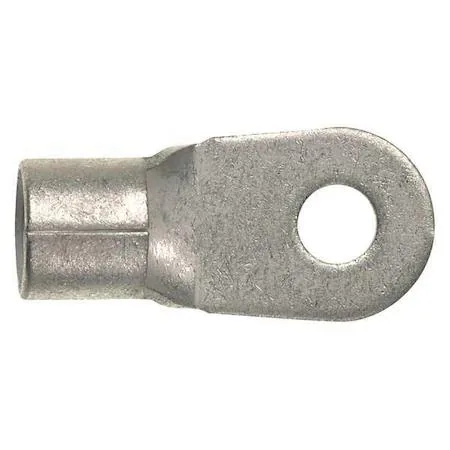

Copper ring terminal with tin finish, #10 stud hole, bare barrel, 6 AWG

Panduit

Panduit P6-10R-E Ring Terminal #10 Stud 6 AWG 2000 V Bare

SKU CH-M3K4-KXTVD

Bare copper ring terminal crimps to 6 AWG wire and fits a #10 stud for 2,000 V circuits

  • TypeElectrical Connectors
  • Rated for 2,000 V maximum voltage
  • Tin-plated copper contact for corrosion resistance
  • CSA certified to LR31212 and UL listed to 587H E52164
  • Crimp termination fits 6 AWG wire precisely
  • Withstands 302 °F operating temperature

Application & Purpose

This Panduit ring terminal connects a single 6 AWG copper conductor to a #10 stud in electrical and industrial wiring jobs. The bare copper barrel with tin plating is UL listed and CSA certified for use up to 2,000 volts and 302 degrees Fahrenheit.

Compatibility Check

Verify that the conductor is exactly 6 AWG because the barrel inside diameter of 0.23 inches accepts no other gauge. Confirm the mounting hardware uses a #10 stud to match the tongue width of 0.47 inches and ensure the termination method is a crimp tool rated for this barrel length of 0.49 inches.

Thermal & Electrical Limits

The terminal carries current at the full 2,000 volt rating while operating continuously at temperatures up to 302 degrees Fahrenheit. With no insulation sleeve present, the bare copper and tin contact runs at the conductor temperature without adding thermal resistance or audible noise.

Highlights

  • Rated for 2,000 V maximum voltage
  • Tin-plated copper contact for corrosion resistance
  • CSA certified to LR31212 and UL listed to 587H E52164
  • Crimp termination fits 6 AWG wire precisely
  • Withstands 302 °F operating temperature

Specifications

BrandPANDUIT
TypeElectrical Connectors

Questions about this item

Does the P6-10R-E ring terminal include any insulation or crimping tool, or must those be purchased separately?

The terminal is supplied bare with no insulation and no tool; you will need a suitable crimper for 6 AWG copper barrels.

The listing shows only a single 6 AWG size — how do I confirm this is the correct gauge for my cable?

The barrel inside diameter is 0.23 in and the terminal is rated for a minimum and maximum wire size of 6 AWG, so it fits only that gauge.

What does the 2,000 V rating mean when the terminal is crimped into a live circuit?

It indicates the maximum operating voltage the copper barrel and tin-plated contact can withstand at up to 302 Degrees F when properly crimped to 6 AWG wire.
