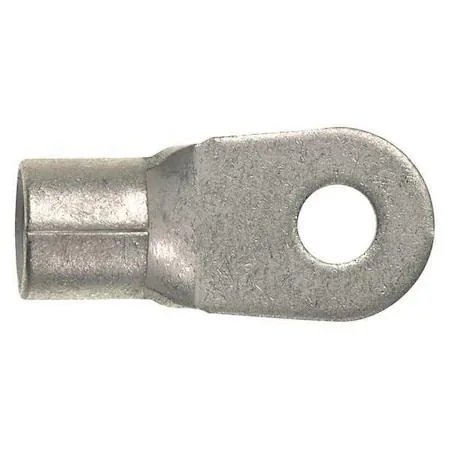

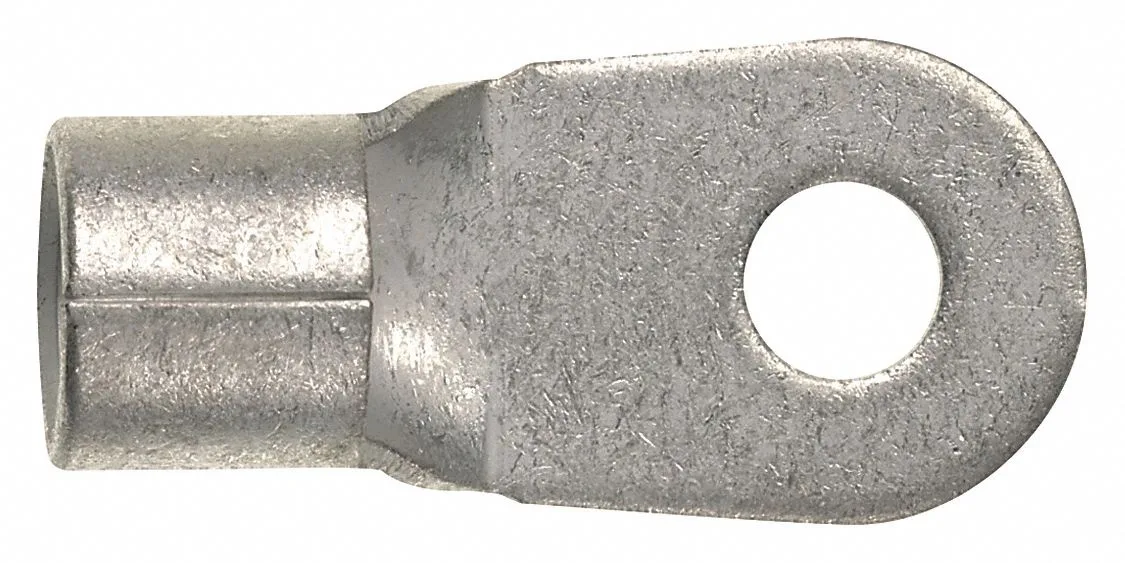

Bare copper ring terminal with crimp barrel and 5/16 inch stud hole

Panduit

Panduit P4-56R-E Ring Terminal 4 AWG 5/16 in Stud 2000 V Bare

SKU CH-8CQR-X2BAX

Connects 4 AWG wire to a 5/16 in stud at up to 2,000 V with a tin-plated copper crimp barrel

  • TypeElectrical Connectors
  • Rated for 2,000 V maximum voltage
  • Tin-plated copper contact resists corrosion
  • Crimp termination for secure wire connection
  • CSA certified to LR31212 standard
  • Operates up to 302 °F temperature

4 AWG Ring Terminal for 5/16 in Stud

The Panduit P4-56R-E is a bare copper ring terminal rated for 2,000 V maximum voltage. It accepts a single 4 AWG conductor and mounts on a 5/16 in stud. The barrel inside diameter is .29 in and the barrel length is .56 in.

Crimp termination for 4 AWG only

The terminal uses a crimp termination style and is sized strictly for 4 AWG wire with a maximum wire size of 4 AWG and a minimum wire size of 4 AWG. Barrel outside diameter is .39 in and tongue width is .68 in. Contact finish is tin over copper.

Rated to 302 °F with CSA and UL listings

Maximum operating temperature is 302 Degrees F. The part carries CSA Certified LR31212 and UL Listed 587H E52164. Insulation coverage is none and insulation material is none. Buyers who need an insulated barrel or a different wire gauge cannot use this terminal.

Highlights

  • Rated for 2,000 V maximum voltage
  • Tin-plated copper contact resists corrosion
  • Crimp termination for secure wire connection
  • CSA certified to LR31212 standard
  • Operates up to 302 °F temperature

Specifications

BrandPANDUIT
TypeElectrical Connectors

Questions about this item

How much current can the 2,000 V rating actually carry in a 4 AWG circuit?

The terminal is rated for 2,000 V maximum voltage with 4 AWG copper wire; ampacity depends on the wire insulation and installation method, not the terminal itself.

What does the CSA LR31212 and UL 587H E52164 listing cover for this connector?

These certifications confirm the bare copper, tin-plated terminal meets North American safety standards for crimp-type wire connectors up to 2,000 V.

Will the 5/16 in stud hole and 0.68 in tongue fit a standard automotive battery post?

The 5/16 in stud size matches many battery and bus-bar bolts; the 0.68 in tongue width and 0.56 in barrel length suit 4 AWG cable crimps.
