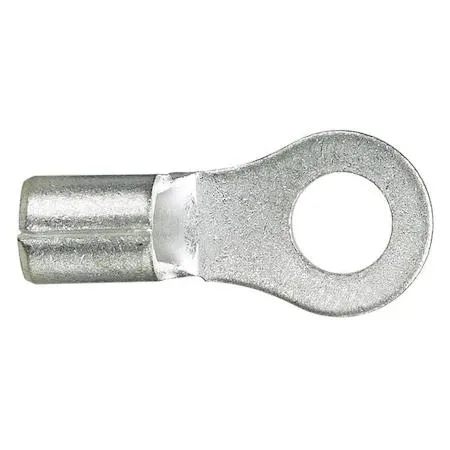

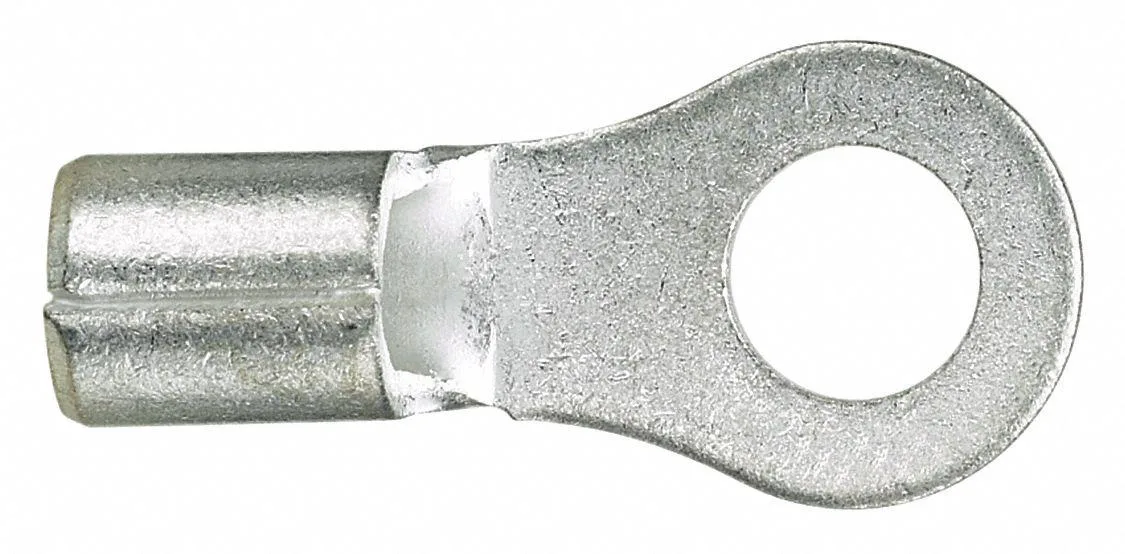

Bare copper ring terminal with #10 stud hole and serrated barrel

Panduit

Panduit P14-10R-M Ring Terminal #10 Stud 14 AWG 2000 V Bare

SKU CH-6DDQ-C03V8

Bare copper ring terminal crimps 14 AWG wire to a #10 stud, rated 2000 V and CSA 22.2 No. 65

  • TypeElectrical Connectors
  • Rated for 2,000 V maximum voltage
  • #10 stud size fits common mounting points
  • 14 AWG maximum wire size for secure crimp
  • Tin-plated copper contact resists corrosion
  • CSA C 22.2 No. 65 and UL 486A/B listed

Ring Terminal #10 Stud 14 AWG

This bare copper ring terminal accepts wire sizes from 18 AWG to 14 AWG and is rated for up to 2,000 V. It features a serrated barrel with a .09 in inside diameter and a .31 in tongue width. The crimp termination style ensures a secure mechanical bond. It meets CSA C 22.2 No. 65, UL 486A and UL 486B standards.

Capacity and headroom for 14 AWG wire

The connector handles 14 AWG as its maximum wire size with a standard barrel size. It operates continuously at temperatures up to 302 Degrees F. The tin-plated copper contact provides corrosion resistance for the rated voltage. There is no insulation coverage or insulation material on this bare terminal.

Practical limits of crimp termination

The #10 stud size fixes the mounting hole diameter for this ring tongue. The .09 in barrel outside diameter matches the inside diameter for the specified wire range. Buyers needing insulated terminals or different stud sizes must select alternative parts. The bare finish leaves the conductor exposed to the environment.

Highlights

  • Rated for 2,000 V maximum voltage
  • #10 stud size fits common mounting points
  • 14 AWG maximum wire size for secure crimp
  • Tin-plated copper contact resists corrosion
  • CSA C 22.2 No. 65 and UL 486A/B listed

Specifications

BrandPANDUIT
TypeElectrical Connectors

Questions about this item

Will the 14 AWG crimp barrel accept the 18 AWG pigtails I am keeping from the old harness?

Yes, the barrel covers a range from 18 AWG up to 14 AWG so your existing 18 AWG wires will crimp securely.

How can I verify the crimp is sound once the terminal is installed?

Perform a pull test on the completed crimp and inspect that the wire strands are fully visible in the serrated barrel inspection window.

Does the package include any heat-shrink tubing or insulating boots for the bare terminal?

No, the terminal is supplied bare with no insulation or tubing; you must purchase heat-shrink or sleeving separately.
