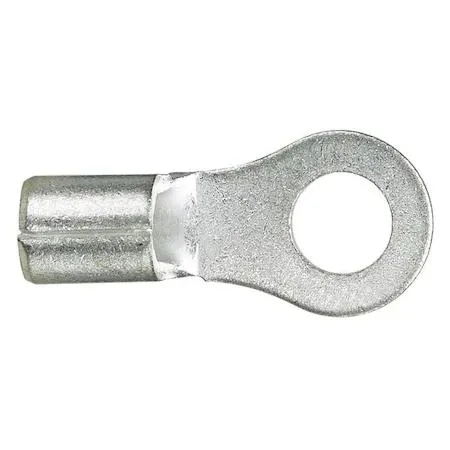

Bare copper ring terminal with tin finish, #10 stud hole, 10 AWG, 0.38 inch tongue

Panduit

Panduit P10-10R-L Ring Terminal #10 Stud 10 AWG 2000 V Bare

SKU CH-7XQQ-TX8B3

Bare copper ring terminal crimps 10-14 AWG wire to #10 stud at 2,000 V with tin-plated brazed barrel

  • TypeElectrical Connectors
  • Rated for 2,000 V maximum voltage
  • Crimp termination suits 10 AWG to 14 AWG wire
  • Brazed serrated barrel resists pull-out
  • Tin-plated copper contacts meet UL 486A and UL 486B
  • Operates up to 302 °F continuous temperature

Ring Terminal #10 Stud 10 AWG

This bare copper ring terminal accepts 10 to 14 AWG wire and terminates with a #10 stud hole. The brazed serrated barrel provides a secure crimp connection for industrial and automotive wiring tasks. Tin-plated copper construction ensures reliable conductivity.

Voltage and Temperature Limits

Rated for 2,000 V maximum operating voltage and 302 degrees F maximum temperature. The terminal meets CSA C22.2 No. 65, UL 486A and UL 486B standards for electrical connectors. No insulation is present so clearance must be managed externally.

Wire Capacity and Barrel Fit

The barrel inside diameter is 0.13 in and outside diameter is 0.22 in, sized for standard 10 AWG maximum wire. Tongue width measures 0.38 in for the #10 stud. Builders needing insulated terminals or larger wire gauges must select a different part.

Highlights

  • Rated for 2,000 V maximum voltage
  • Crimp termination suits 10 AWG to 14 AWG wire
  • Brazed serrated barrel resists pull-out
  • Tin-plated copper contacts meet UL 486A and UL 486B
  • Operates up to 302 °F continuous temperature

Specifications

BrandPANDUIT
TypeElectrical Connectors

Questions about this item

Should I use the 10 AWG or 14 AWG wire with this terminal?

The barrel accepts wire from 14 AWG up to 10 AWG; choose the gauge that matches your actual conductor size.

What does the 2,000 V rating mean when the terminal is crimped in a harness?

It is the maximum voltage the insulation and barrel can withstand after a proper crimp, per UL 486A and UL 486B.

Does the #10 stud size follow a specific standard for hole spacing?

The #10 stud designation sets the bolt-hole diameter; the terminal meets CSA C22.2 No. 65 and UL 486A/486B for dimensions and performance.
