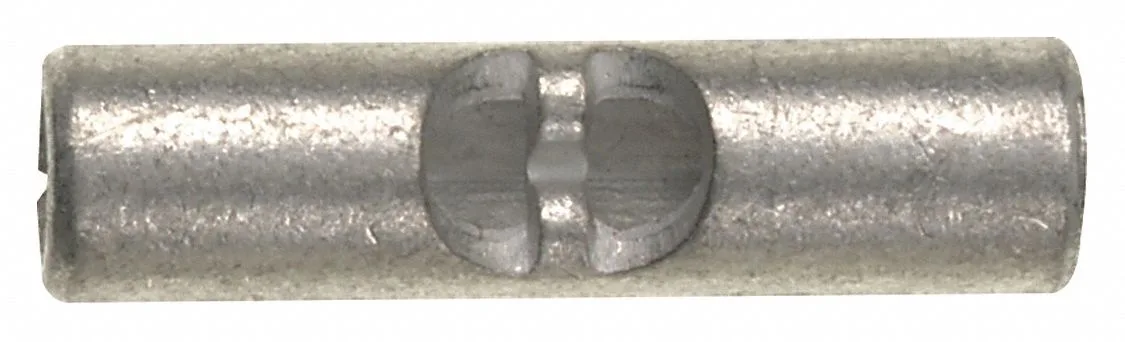

Panduit BS14-C butt splice connector, 14 AWG copper, tin-plated, 0.62 in long, bare metal finish

Panduit

Panduit BS14-C Butt Splice Connector 14 AWG Copper

SKU CH-R2AM-38XH6

Uninsulated copper butt splice joins 14–16 AWG wires with a brazed, tin-plated barrel rated to 2,000 V and 302 °F

  • TypeElectrical Connectors
  • Handles up to 14 AWG wire for secure crimp connections
  • Brazed seam resists splitting under vibration and load
  • Tin-plated copper body resists corrosion for lasting conductivity
  • Rated to 302 °F and 2,000 V for demanding environments
  • UL 486C and CSA C22.2 No. 65 listed for code compliance

Purpose-built connector

The Panduit BS14-C is a crimp-style butt splice designed for joining 14 to 16 AWG copper conductors. It serves electricians and installers who need a reliable in-line joint without insulation. The tin-plated copper body accepts solid or stranded wire within the stated gauge range. This connector is not suited for applications requiring insulated barrels or larger wire sizes.

Thermal and electrical limits

The bare copper construction operates continuously up to 302 degrees Fahrenheit and is rated for 2,000 volts maximum. With no plastic sleeve there is no insulation to melt or degrade under heat. Current carrying capacity follows the ampacity of the installed wire rather than a separate connector limit. The brazed seam maintains integrity through thermal cycling without adding resistance.

Build and installation

A brazed seam and tin-plated finish provide corrosion resistance and mechanical strength in a 0.62-inch overall length. Barrel dimensions of 0.096-inch inside and 0.16-inch outside diameter guide wire insertion and crimp tool selection. The connector meets UL 486C and CSA C22.2 No. 65 standards for safety compliance. Installers needing colour-coded insulation or a window for visual inspection must choose a different product.

Highlights

  • Handles up to 14 AWG wire for secure crimp connections
  • Brazed seam resists splitting under vibration and load
  • Tin-plated copper body resists corrosion for lasting conductivity
  • Rated to 302 °F and 2,000 V for demanding environments
  • UL 486C and CSA C22.2 No. 65 listed for code compliance

Specifications

BrandPANDUIT
TypeElectrical Connectors

Questions about this item

How do I crimp the 14 AWG copper butt splice, and what step is often missed?

Strip the wire to expose the conductor, insert fully into the 0.096 in barrel, then crimp with a tool rated for 14 AWG; the step often missed is verifying the wire reaches the barrel stop before crimping.

Will the tin-plated copper connector need replacement or maintenance over time?

The tin-plated copper body and brazed seam are designed for permanent installation; no scheduled maintenance is required unless the connection shows corrosion or overheating beyond the 302 Degrees F rating.

What limit appears first when the splice runs continuously at high current?

The 302 Degrees F maximum operating temperature is the first limit reached under sustained load, so ensure ambient conditions and wire gauge keep the connector below this threshold.
