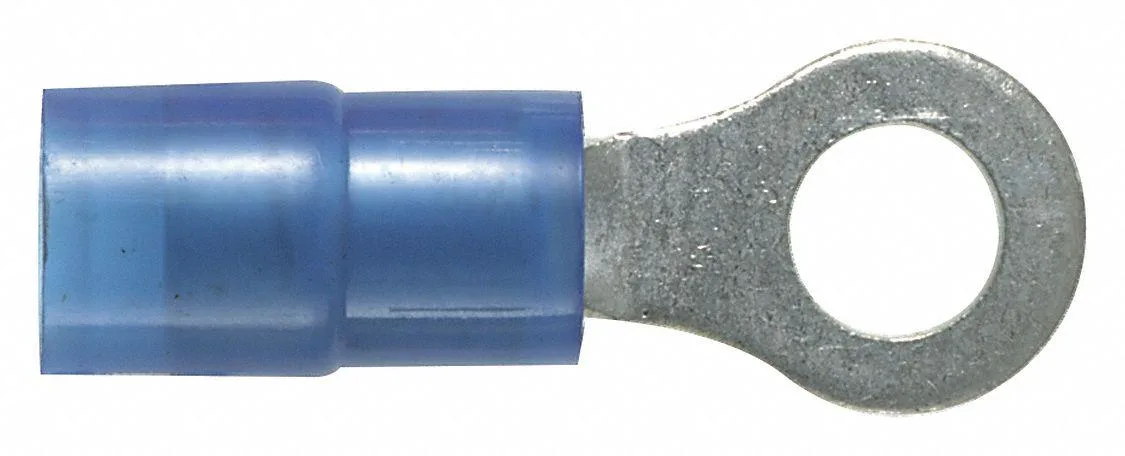

Blue nylon ring terminal with tin-plated copper barrel for 18-14 AWG wire #10 stud size

Panduit

Panduit 18-14 AWG Nylon Ring Terminal #10 Stud PK100

SKU CH-P4TT-ZK5S4

Blue nylon ring terminals accept 18-14 AWG wire, fit #10 studs and are rated to 600 V and 221 °F

  • TypeBuilding Wire
  • 18–14 AWG range covers common wire gauges
  • Nylon insulation resists heat up to 221 °F
  • Tin-plated copper barrel ensures reliable crimp connection
  • UL 486A, UL 486B and CSA C22.2 No. 65 listed
  • Pack of 100 terminals speeds large installations

18-14 AWG Nylon Ring Terminal for #10 Stud

This pack contains 100 blue nylon-insulated ring terminals designed for crimping onto 18 to 14 AWG copper wire. The terminals accept a #10 stud and carry a 600 V maximum voltage rating. They suit automotive, marine and general low-voltage wiring tasks where a secure bolt-on connection is required.

Wire range 18 to 14 AWG and #10 stud size

The critical specification is the wire gauge window of 18 AWG minimum to 14 AWG maximum combined with the #10 stud hole. Using wire outside this range or a different stud diameter will prevent a proper crimp or mechanical fit. The barrel inside diameter is 0.16 in and the tongue width is 0.31 in for reference during installation.

Nylon insulation with partial coverage

The nylon sleeve provides partial insulation coverage and meets UL 94 HB flammability rating, while the tin-plated copper barrel resists corrosion and ensures reliable conductivity. The terminals are listed to UL 486A, UL 486B and CSA C22.2 No. 65 standards and rated for a maximum operating temperature of 221 °F. No additional tools or software are included in the pack.

Highlights

  • 18–14 AWG range covers common wire gauges
  • Nylon insulation resists heat up to 221 °F
  • Tin-plated copper barrel ensures reliable crimp connection
  • UL 486A, UL 486B and CSA C22.2 No. 65 listed
  • Pack of 100 terminals speeds large installations

Specifications

BrandPANDUIT
TypeBuilding Wire

Questions about this item

What does the 600 V rating mean once the terminal is crimped in a real circuit?

The 600 V rating means the terminal is certified for circuits up to 600 volts when properly crimped to 18-14 AWG wire.

Which standards cover the #10 stud interface and what do they cap in practice?

UL 486A, UL 486B and CSA C 22.2 No. 65 govern the #10 stud connection, limiting use to 600 V and 221 °F maximum operating temperature.

What barrel and tongue dimensions determine whether this terminal fits my wire and stud?

The barrel inside diameter is 0.16 in for 18-14 AWG wire and the tongue width is 0.31 in for a #10 stud.
