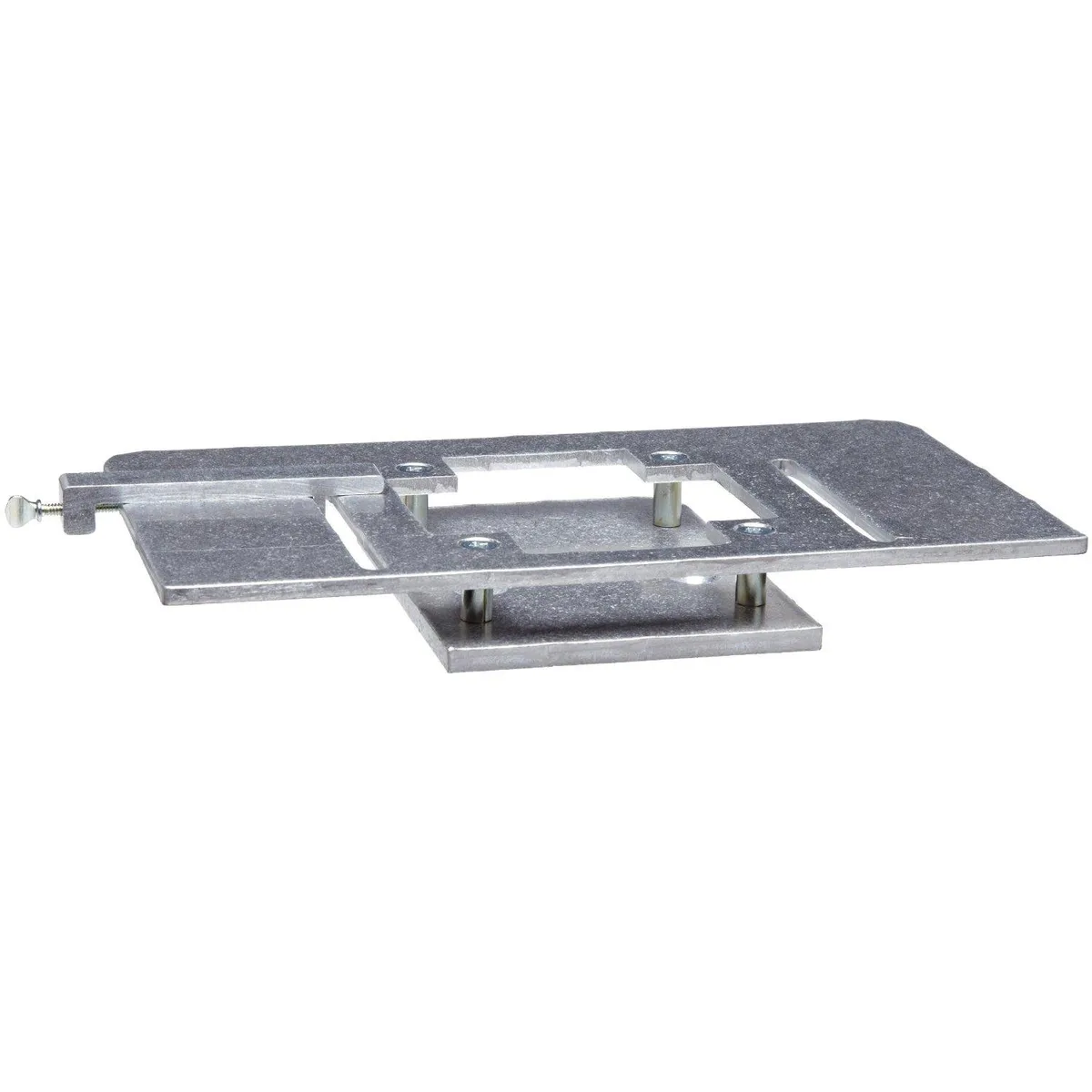

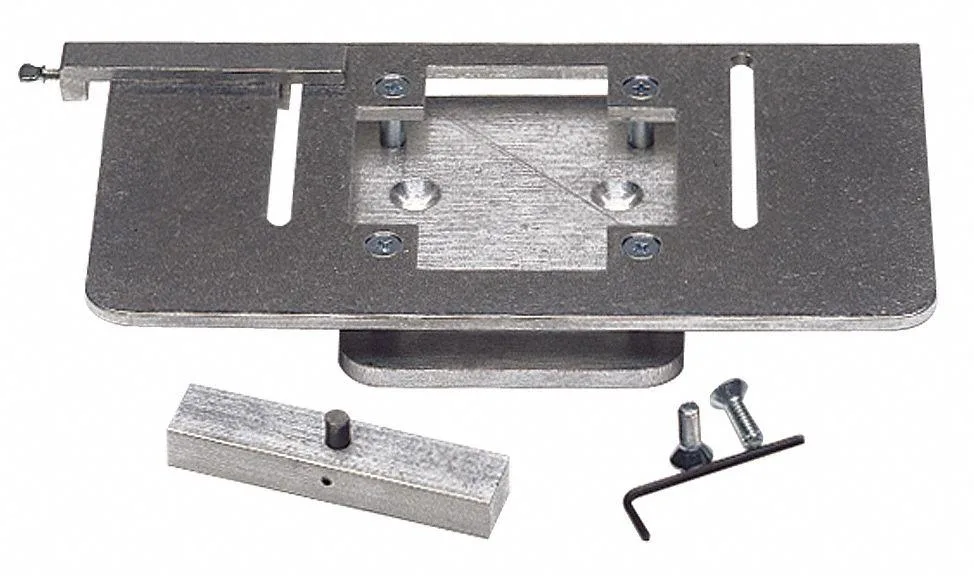

PanaVise 506 IDC press kit with base plates, ram adapter, cable guide and Allen wrench

PanaVise

PanaVise 506 IDC Assembly Press Kit

SKU CH-J9AA-X4FVH

IDC retrofit kit terminates up to 64-pin ribbon cables and includes Allen wrench, cable guide and ram adapter

  • TypeAngle, Pitch & Slope Locators
  • MaterialHAWA
  • Weight1.85
  • Ergonomic design helps prevent wrist, hand, nerve and tendon injuries
  • Terminates up to 64-pin IDC connectors on ribbon cable smoothly and securely
  • Interchangeable base plates adapt the press to different connector types
  • Includes Allen wrench, cable guide and ram adapter for immediate use
  • Lightweight 1.85 kg construction eases handling during repetitive assembly tasks

PanaVise 506 IDC Assembly Press Kit

The PanaVise 506 is an IDC retrofit kit designed for mass termination of ribbon cable connectors. It smoothly and securely terminates cables up to 64 conductors using the PanaPress system. The kit includes an Allen wrench, cable guide and ram adapter for immediate use. It is intended for assembly technicians and maintenance professionals.

Suits technicians terminating IDC connectors

This kit suits technicians who need a dedicated press for terminating IDC connectors on ribbon cable. It helps prevent injuries to wrists, hands, nerves and tendons during repetitive assembly tasks. Buyers who require a general-purpose bench vise or a tool for non-IDC connector types should look at other hand tool categories.

Check compatibility with PanaVise model 502 before

Verify that your existing setup includes the PanaVise model 502, as this retrofit kit is designed specifically for use with that base. Ensure your application involves ribbon cable termination up to the supported conductor count. Interchangeable base plates are available separately if your workflow demands different mounting configurations.

Highlights

  • Ergonomic design helps prevent wrist, hand, nerve and tendon injuries
  • Terminates up to 64-pin IDC connectors on ribbon cable smoothly and securely
  • Interchangeable base plates adapt the press to different connector types
  • Includes Allen wrench, cable guide and ram adapter for immediate use
  • Lightweight 1.85 kg construction eases handling during repetitive assembly tasks

Specifications

BrandPanavise
TypeAngle, Pitch & Slope Locators
MaterialHAWA
Weight1.85

Questions about this item

Which existing press base is required for the 506 IDC Assembly Press Kit to operate?

The kit is designed for use with the manufacturer number 502 base, so that press must already be in place before the retrofit components can be installed.

Will the kit terminate the 64-pin ribbon cables I still use on legacy boards?

Yes, it smoothly and securely mass-terminates IDC connectors on ribbon cable up to 64 conductors, covering the older cable sizes you are keeping.

How can I verify the press is functioning correctly after fitting the retrofit kit?

Run a test termination on a scrap length of ribbon cable and inspect each connector for fully seated, evenly crimped contacts across all positions.
