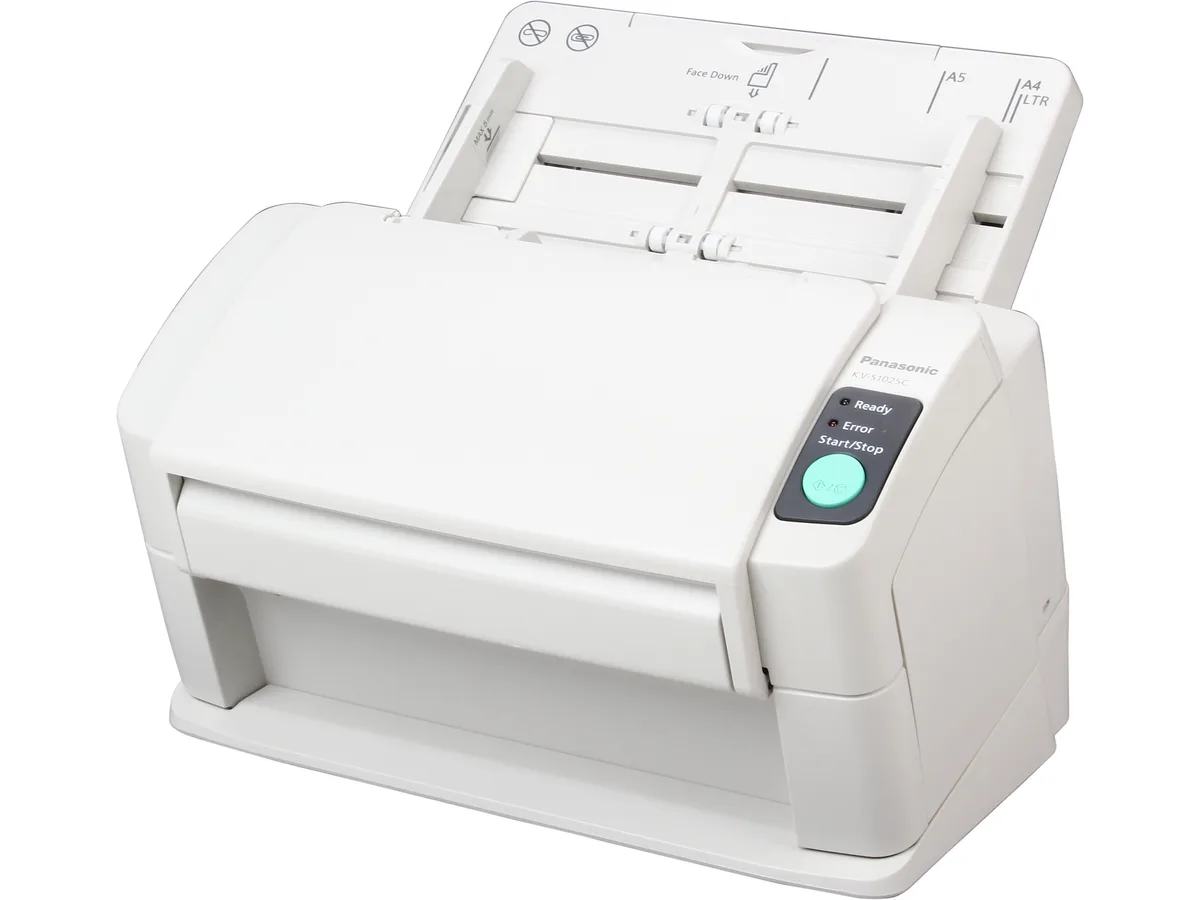

Rectangular white document scanner with automatic document feeder on top

Panasonic

Panasonic KV-S1025C-S 600 dpi duplex document scanner

SKU CH-RXMZ-591Y1 MPN KV-S1025C-S

Duplex document scanner with 600 dpi optical resolution, 26 pages per minute simplex speed, and automatic feeder handling documents up to 8.5 by 100 inches

  • TypeDuplex
  • Element TypeBackground: Black
  • Light SourceRed, Green, and Blue Multi Color Dropout - Up to 3 colors, a
  • Scanning SpeedBinary Simplex scanning - Letter: 26 pages/min. - A4: 25 pag
  • Optical Resolution600 dpi
  • Max. Document SizeMin.: 1.9" x 2.8" length Max.: 8.5" x 100" length
  • Scans both sides at 52 images per minute
  • Captures fine detail at 600 dpi optical resolution
  • Handles long pages up to 100 inches in length
  • Drops up to three colours in a single pass
  • Ready for Windows 2000 and XP environments

600 dpi duplex document scanner

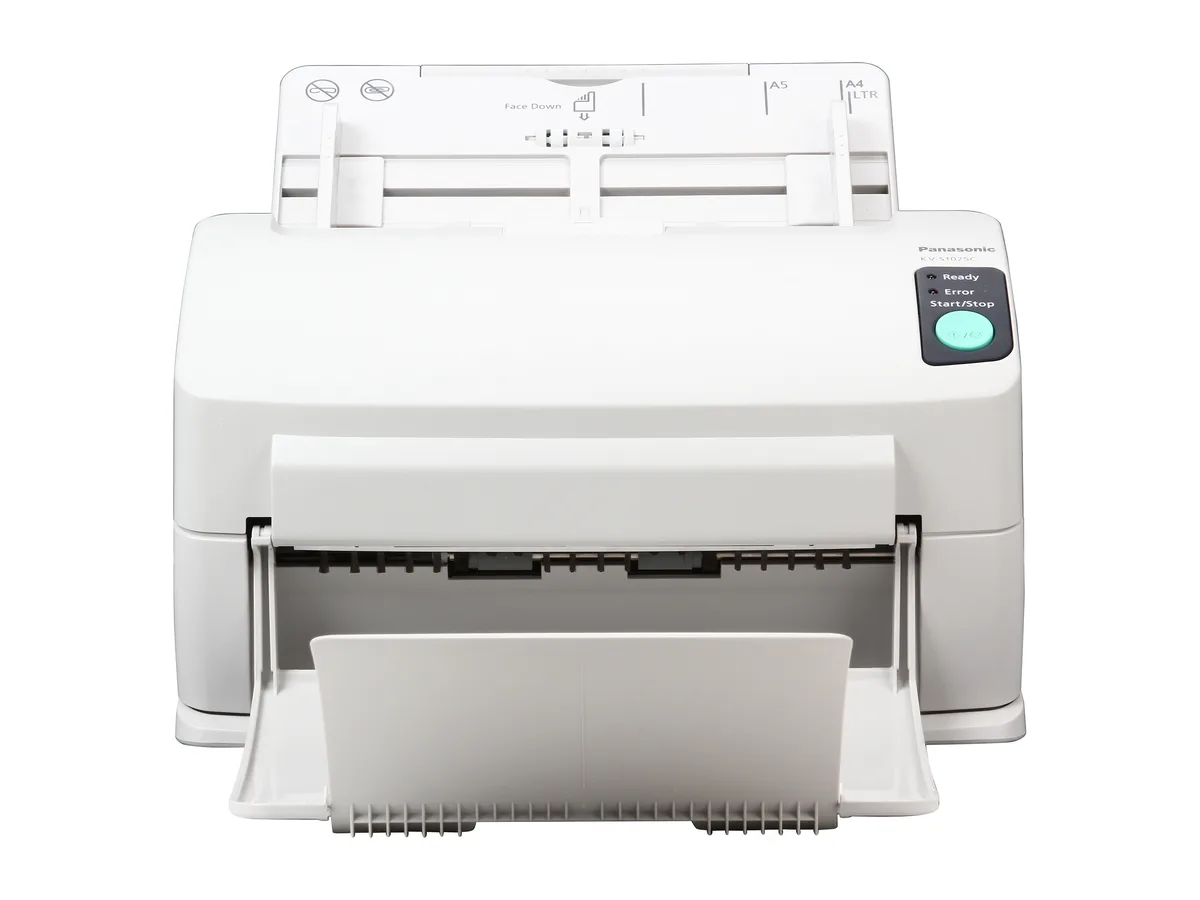

The Panasonic KV-S1025C-S is a new duplex document scanner built for workgroups that need reliable colour and binary capture. It handles paper from 1.9" x 2.8" up to 8.5" x 100" through its automatic document feeder. Optical resolution is fixed at 600 dpi for consistent output quality.

Check operating system and USB port

Supported operating systems are limited to Windows 2000 and Windows XP, so confirm your host machine runs one of those versions. The scanner draws power from an external AC adaptor that accepts 100-120 V or 220-240 V at 50/60 Hz, requiring a free mains outlet. A USB cable is supplied for the data connection.

Compact desktop build with rear-fed paper path

The unit measures 8.6" high, 12.5" wide and 7.2" deep, weighing 9.3 lbs for stable desktop placement. Its feeder and output path sit at the rear, so allow clearance behind the scanner for long documents up to 100". The package includes the AC adaptor, power cord, USB cable, feed tray, installation guide and a driver CD with TWAIN, ISIS and QuickScan Pro demo software.

Highlights

  • Scans both sides at 52 images per minute
  • Captures fine detail at 600 dpi optical resolution
  • Handles long pages up to 100 inches in length
  • Drops up to three colours in a single pass
  • Ready for Windows 2000 and XP environments

Specifications

BrandPanasonic
ModelKV-S1025C-S
TypeDuplex
Element TypeBackground: Black
Light SourceRed, Green, and Blue
Multi Color Dropout - Up to 3 colors, any color
Scanning SpeedBinary
Simplex scanning
- Letter: 26 pages/min.
- A4: 25 pages/min.
Duplex scanning
- Letter: 52 images/min.
- A4: 50 images/min.
Color
Simplex scanning
- Letter: 26 pages/min.
- A4: 25 pages/min.
Duplex scanning
- Letter: 52 images/min.
- A4: 50 images/min.
Optical Resolution600 dpi
Max. Document SizeMin.: 1.9" x 2.8" length
Max.: 8.5" x 100" length
Automatic Document Feeder (ADF)Yes
USB PortsYes
Power RequirementsExternal power supply (AC adaptor)
AC100-120 V, 50/60 Hz
AC220-240 V, 50/60 Hz
Power ConsumptionScanning mode (Maximum): 32 W
Idle mode: 22 W
Sleep mode: less than 12 W
When the power switch is OFF: Approx. 1 W
(While the AC adaptor is connected to the AC outlet)
Operating Systems SupportedWindows 2000, Windows XP
FeaturesOffering a stunning array of speed, versatility and reliability, Panasonic's KV-S1025C-S workgroup scanner is an ideal choice for any scanning need. With the ability to scan virtually any type of document, from business cards to legal size paper, the KV-S1025C-S is the perfect solution for any office desktop.
Beyond standard documents, the KV-S1025C-S also features the ability to scan continuous documents of up to 100" in length such as EKG reports, as well as hard embossed plastic cards such as identification cards. The KV-S1025C-S's extensive hardware elements are further maximized
Dimensions8.6" x 12.5" x 7.2" (H x W x D)
Weight9.3 lbs

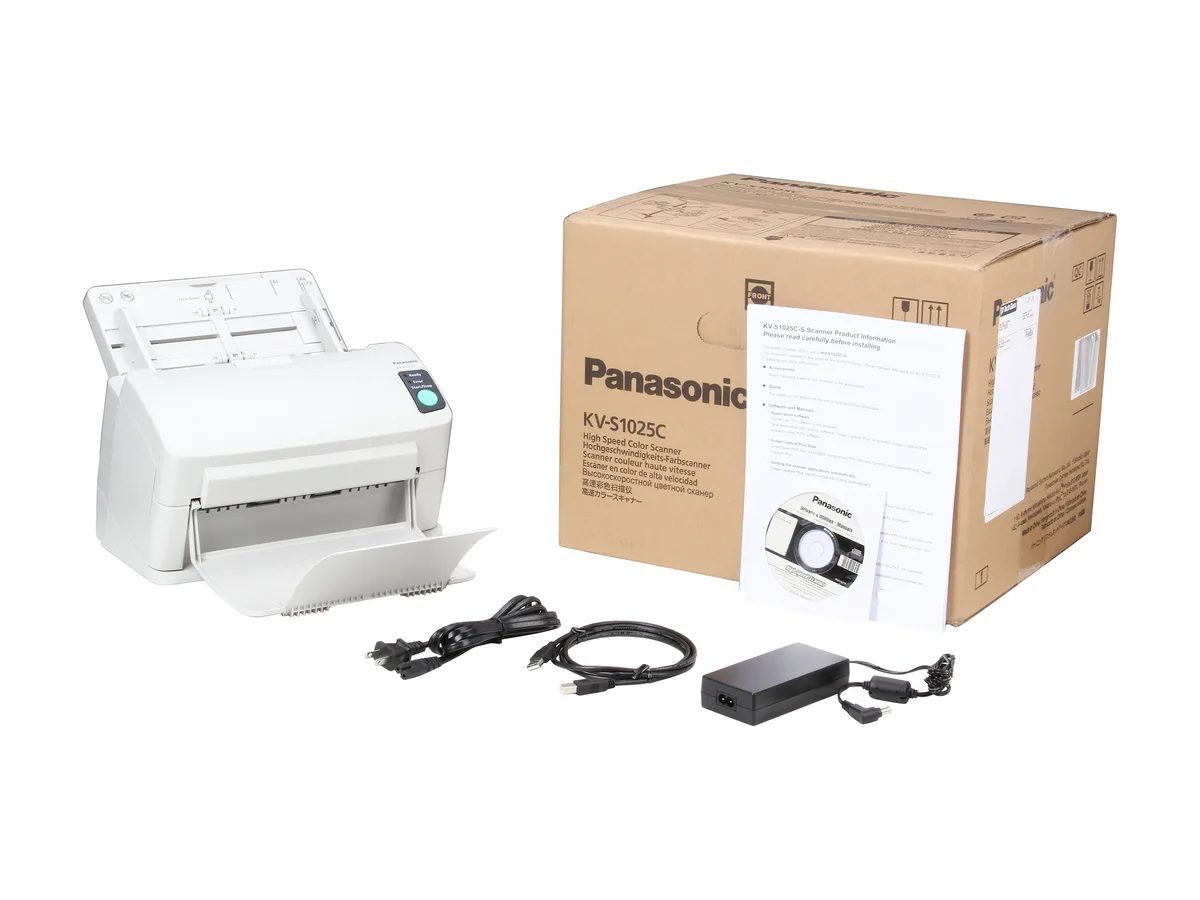

Package ContentsCD-ROM, Installation Guide, AC adaptor, Power cord,
USB cable, Feed tray
Software IncludedDrivers: Device Driver/ TWAIN/ ISIS
Applications: RTIV/ QuickScan ProTM Demo
Utilities: MCD (Multi-Color Dropout) Utility/ User Utility
Shipping weight6.35 kg
Package size439 × 363 × 338 mm

Questions about this item

What comes in the box and do I need to buy a USB cable separately?

The package includes a USB cable, AC adaptor, power cord, installation guide, CD-ROM and feed tray so no separate cable is required.

Should I choose the 600 dpi optical resolution or a lower setting for everyday office scanning?

The scanner's optical resolution is fixed at 600 dpi; you select the output resolution in software but the hardware captures at 600 dpi.

What does the 52 images per minute duplex speed mean when I load a stack of A4 pages?

In duplex mode the feeder captures both sides simultaneously, delivering up to 50 A4 images per minute or 52 Letter images per minute.
