PAKOTOO KB-700 8MP USB Document Camera 2448P A3 A4 Dual Mic 3-Level LED Image Inversion
An 8 MP USB document camera captures A3 and A4 pages at 2448P with dual microphones, three LED brightness levels, ten exposure steps, one-button autofocus down to 3.94 in, and hardware image inversion
- TypeDocument
- Duplex ScanningDocument
- Color Depth24 bits
- Resolution2448P
- Hardware Resolution2448P
- Max. Document Size16.5" x 11.6" in
- Hardware image reversal via button without software
- Three-level LED brightness plus ten-level exposure control
- Foldable multi-joint arm covers A3 size 16.5 x 11.6 in
- One-press autofocus captures macro detail down to 3.94 in
- Dual microphones and 2448P resolution at 30 fps streaming
8MP USB Document Camera for A3/A4 Teaching

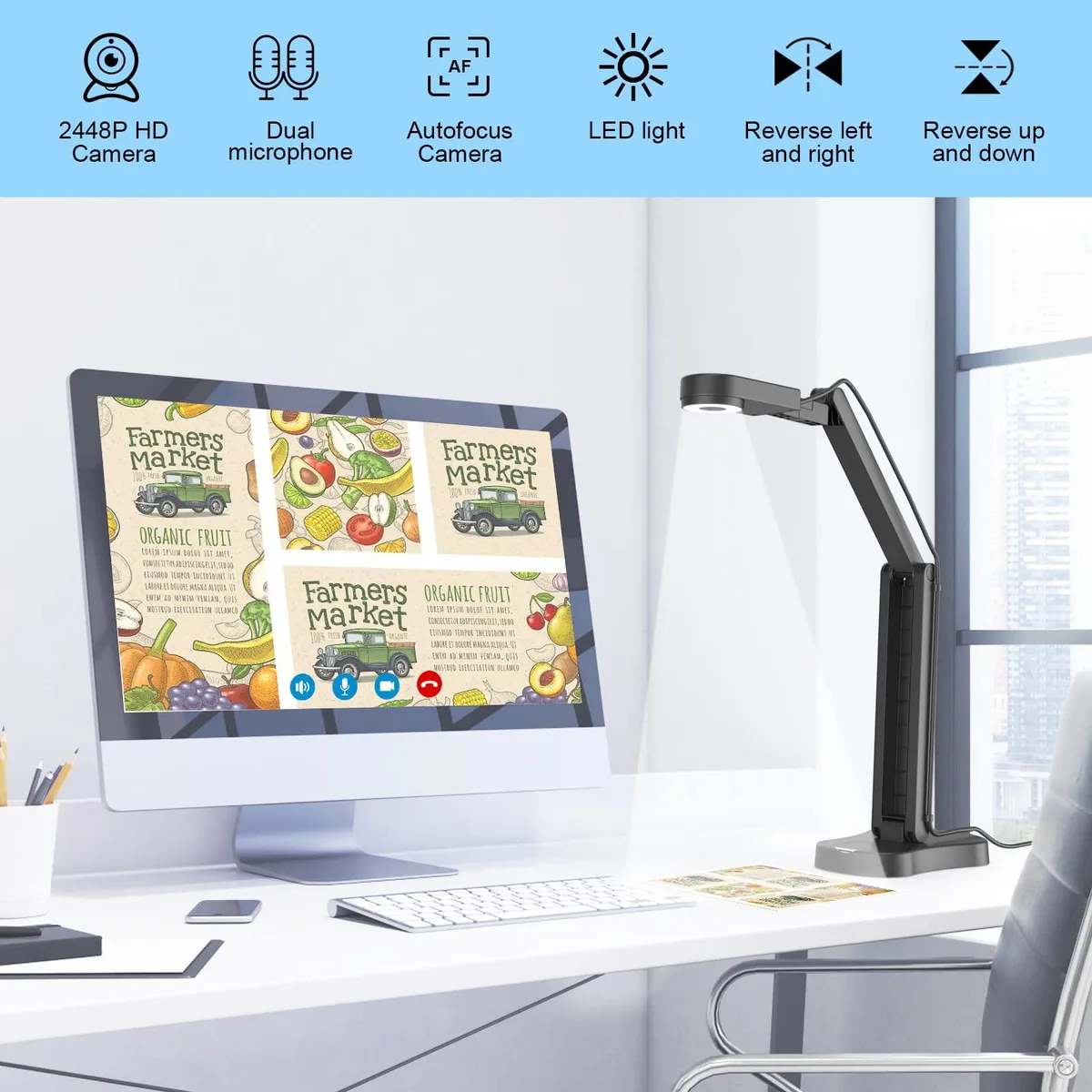

The PAKOTOO KB-700 is an 8MP USB document camera built for teachers and classrooms handling A3 and A4 documents. It delivers 2448P resolution at 30fps for live demonstrations and distance learning. Dual microphones capture audio during lessons. The device connects via USB 2.0 to a Windows computer for projector output.
Foldable Multi-Joint Design with Button Controls

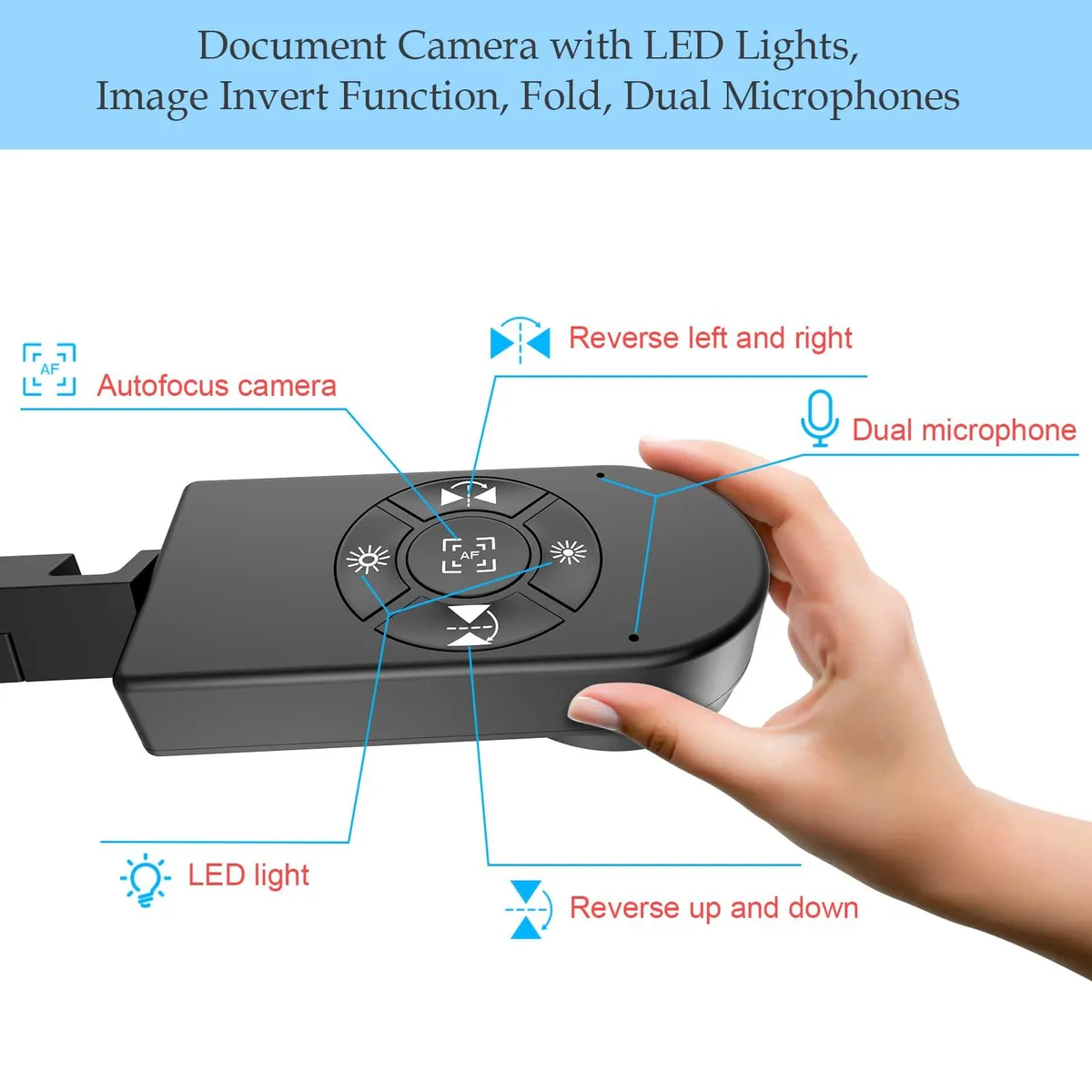

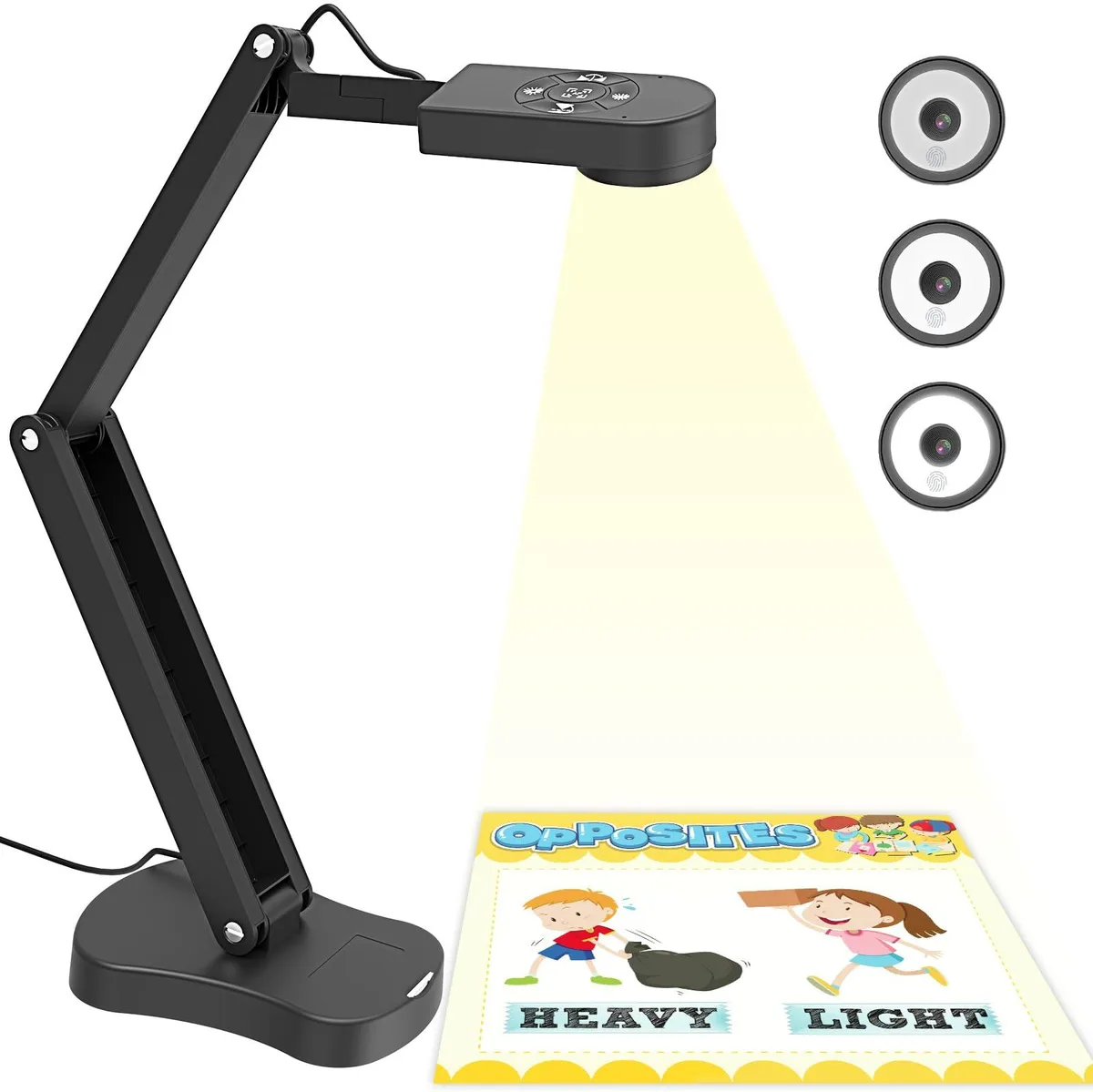

The embedded foldable frame measures 9 cm x 11 cm x 43.94 cm and weighs 0.8 kilograms for easy storage and transport. Multi-joint arms allow free rotation to capture 2D and 3D objects across a maximum 16.5" x 11.6" area. Physical buttons control left-right and up-down image inversion without software. Three-level LED brightness and ten-level exposure adjustments are also button-operated.
Autofocus and Macro Capture for Close Work
A dedicated autofocus button triggers a single focus cycle to keep images sharp when objects move under the lens. Macro capability captures details as small as 3.94 inches. The camera draws power directly from the USB 2.0 connection with no external adapter required. It does not support zoom, HDMI output, or iPad compatibility.
Highlights
- Hardware image reversal via button without software
- Three-level LED brightness plus ten-level exposure control
- Foldable multi-joint arm covers A3 size 16.5 x 11.6 in
- One-press autofocus captures macro detail down to 3.94 in
- Dual microphones and 2448P resolution at 30 fps streaming
Specifications
| Brand | PAKOTOO |
|---|---|
| Series | PAKOTOO |
| Model | KB-700 |
| Part Number | PAKOTOO-1 |
| Type | Document |
| Duplex Scanning | Document |
| Color Depth | 24 bits |
| Resolution | 2448P |
| Hardware Resolution | 2448P |
| Max. Document Size | 16.5" x 11.6" in |
| USB Ports | USB |
| Other Ports | USB |
| Power Requirements | false |
| Operating Systems Supported | Windows 7 |
| Windows Vista | Certified for Windows Vista |
| Color | Black |
| Features | KB700, 2448P, 24 bits, 1 |
| Dimensions | 9 cm x 11 cm x 43.94 cm |
| Weight | 0.8 kilograms |
| Package Contents | 1 |
| Software Included | Windows 7, windows_7 |
| Sports Team | 1 Piece |
Questions about this item
What does the USB 2.0 connection limit in practice?
The USB 2.0 cable connects the camera to a computer for video streaming at up to 2448P resolution and 30 fps; it does not support HDMI output or direct projector connection.
What desk space and paper sizes does the KB-700 cover when folded out?
The multi-joint arm extends to a maximum capture area of 16.5" x 11.6", covering A3 and A4 sheets, and folds to a compact 9 cm x 11 cm x 43.94 cm footprint.
How do I get a sharp image after moving the camera or the document?
Press the AF button once to trigger a single autofocus cycle; the lens then locks focus so the image stays clear while you reposition objects down to 3.94" minimum distance.
