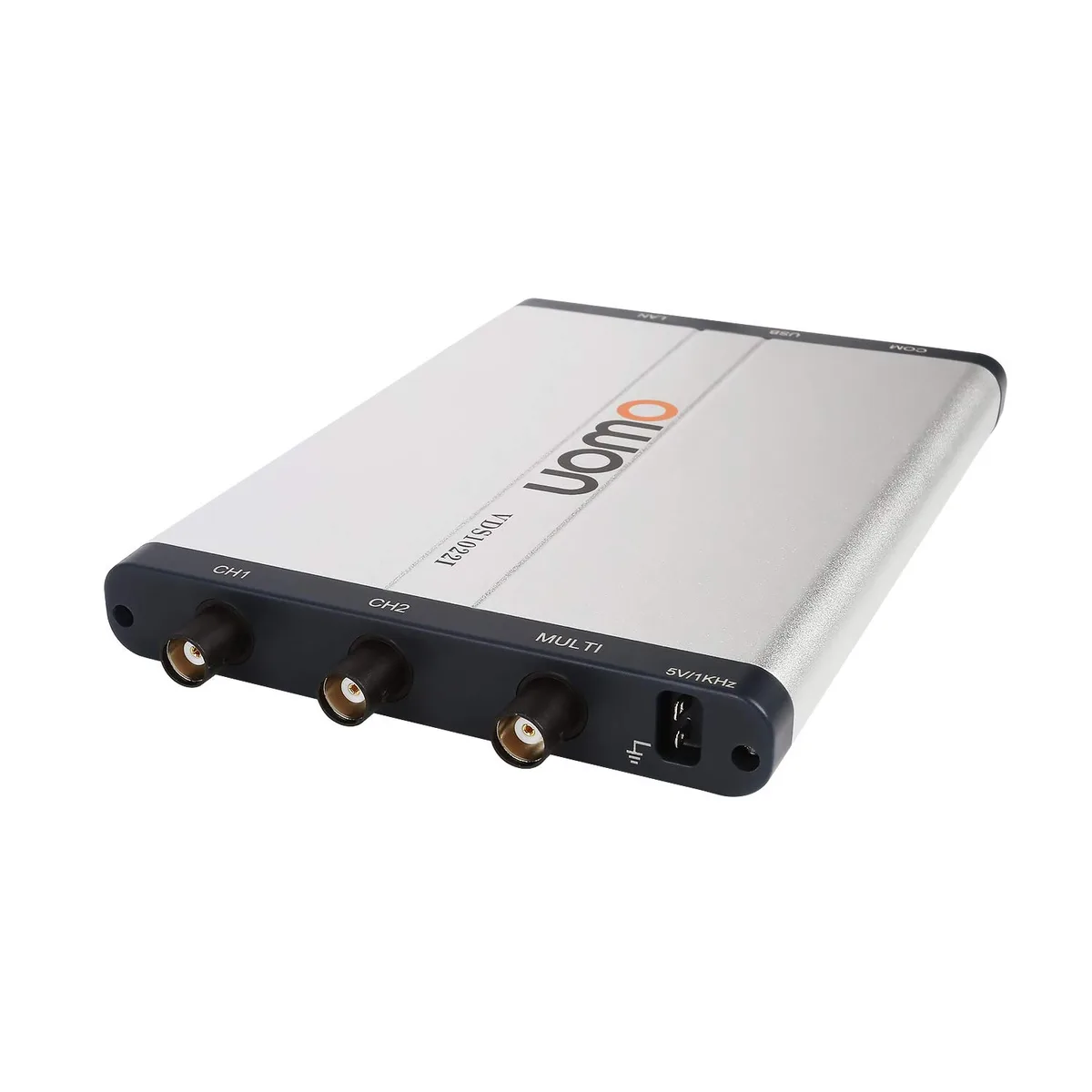

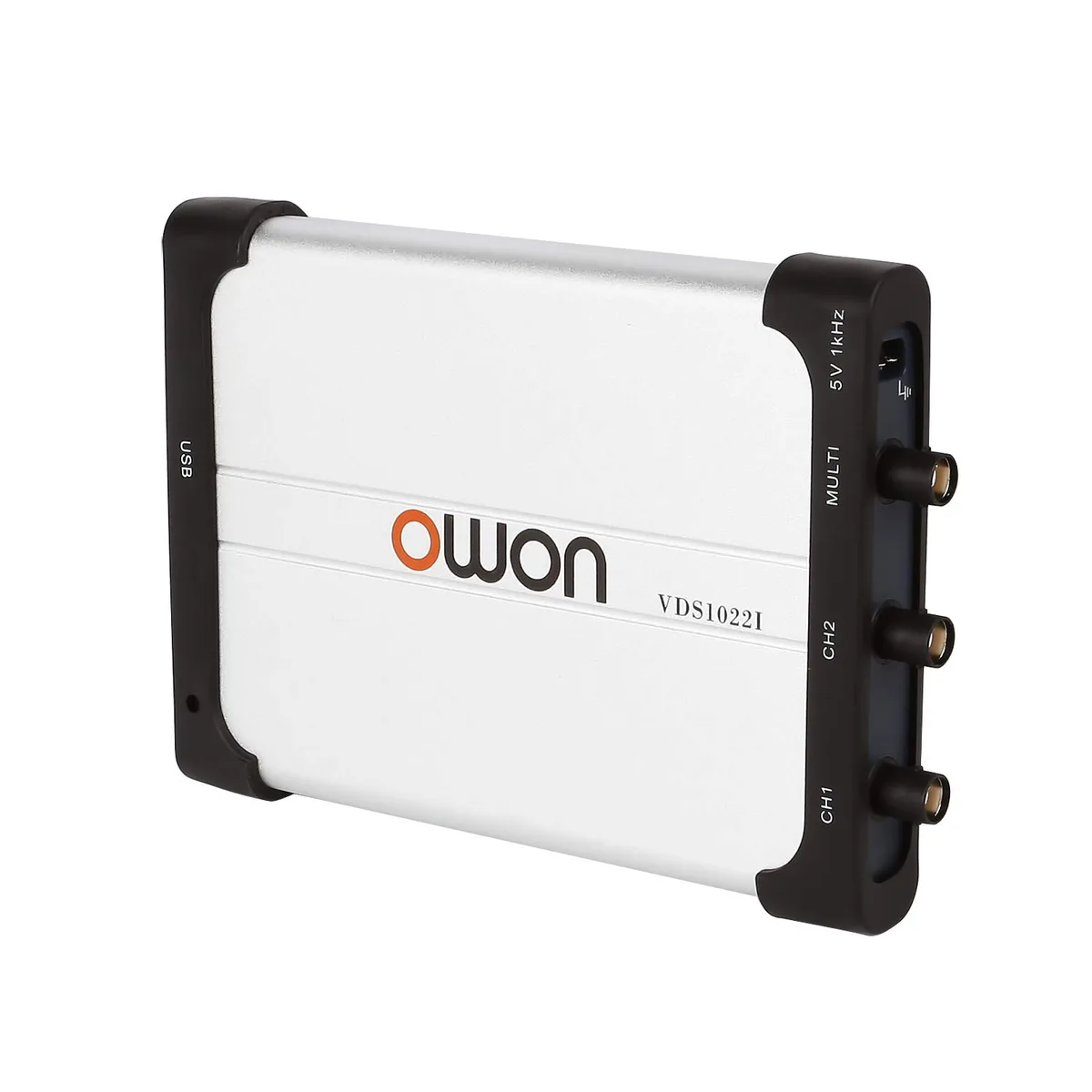

Compact USB oscilloscope with two BNC inputs, matte grey enclosure, isolation badge, single USB cable attached

OWON Technology

OWON Technology VDS1022I 25 MHz 2-channel USB measurement tool

SKU CH-EM6D-9GJEC MPN VDS1022I

A dual-channel USB oscilloscope with 25 MHz bandwidth, 100 MS/s sampling, 5K memory depth and USB isolation for safer measurements

  • Dual-channel 25 MHz bandwidth for versatile signal analysis
  • 100 MS/s sample rate captures fast transients accurately
  • USB isolation protects the PC from 400 V peaks
  • 5 K record length stores detailed waveforms for review
  • USB-powered plug-and-play operation enables portable bench or field use

Portable USB oscilloscope for circuit testing

The OWON VDS1022I is a 25 MHz dual-channel USB virtual oscilloscope powered entirely through a USB 2.0 connection. It captures signals at 100 MSa/s with a 5K record length and 8-bit vertical resolution. Isolation rated at 100:1 for 50 Hz and 40:1 for 10 MHz protects the host computer from transient shocks up to 400 V peak-to-peak.

Upgrade from basic logic probes or sound-card scopes

This unit replaces single-channel probes and software-only analysers when you need simultaneous XY and FFT display on the same screen. The jump is worth it when DC gain accuracy of ±3 % and vertical sensitivity down to 5 mV/div are required for design validation or manufacturing test. It is not for users who need bandwidth above 25 MHz or deeper memory for long captures.

Plug-and-play setup with included probe

Installation is driver-based plug-and-play via the supplied USB cable and CD; the probe offers 1X, 10X, 100X and 1000X attenuation settings. Common issues include forgetting to match the probe attenuation factor in software, which skews voltage readings, and exceeding the 400 V peak-to-peak input limit, which can damage the isolated front end.

Highlights

  • Dual-channel 25 MHz bandwidth for versatile signal analysis
  • 100 MS/s sample rate captures fast transients accurately
  • USB isolation protects the PC from 400 V peaks
  • 5 K record length stores detailed waveforms for review
  • USB-powered plug-and-play operation enables portable bench or field use

Specifications

BrandOWON
ModelVDS1022I

Questions about this item

Does the VDS1022I need an external power supply or does it run from the USB 2.0 port?

It is powered over the USB 2.0 connection, so no separate power supply is required.

Which driver or software step is required before the VDS1022I appears as a measurement device on the PC?

Install the software from the included CD, then connect the USB cable; the device is recognised as a virtual oscilloscope once the driver loads.

The probe attenuation factor lists 1X, 10X, 100X and 1000X — which setting matches the supplied probe?

The included probe is a 10X type; set the software to 10X so the vertical sensitivity reads correctly.
