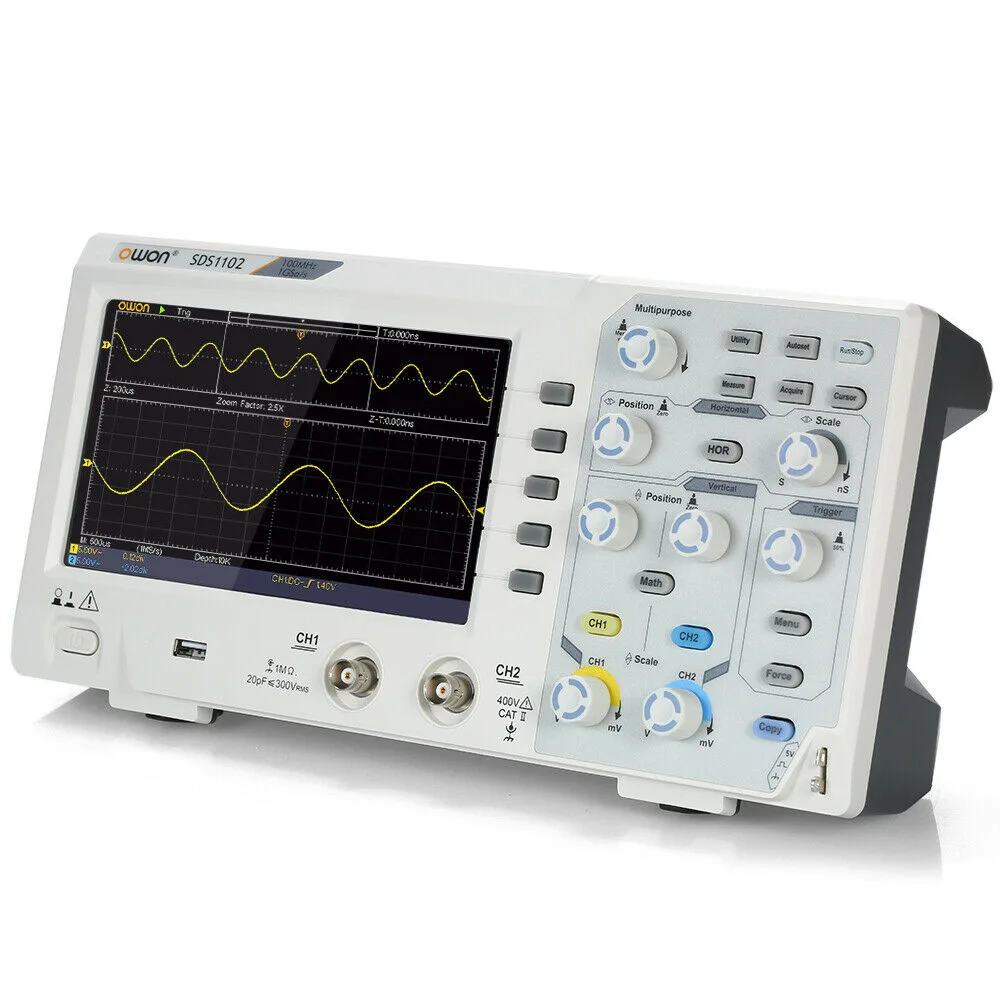

OWON SDS1102 desktop digital oscilloscope with 7 inch display and two channels

OWON Technology

OWON Technology SDS1102 2-Channel 100 MHz Digital Oscilloscope test

SKU CH-EXJR-W9JWE MPN SDS1102

Two-channel digital oscilloscope with 100 MHz bandwidth, 1 GSa/s sample rate and 10K pts memory

  • 100 MHz bandwidth and 1 GSa/s capture fast signals accurately
  • 2-channel input lets you compare two waveforms simultaneously
  • 7-inch 800 × 480 TFT display shows detailed waveform data
  • USB host port on the front panel enables quick data saving
  • 30 automatic measurements deliver instant voltage, time and frequency results

100 MHz 2-Channel Oscilloscope

The OWON SDS1102 is a desktop digital oscilloscope built for electronic circuit debugging, design work, education, and automobile maintenance. It delivers 100 MHz bandwidth across two channels with a real-time sample rate up to 1 GSa/s. The instrument suits engineers, students, and technicians who need affordable signal analysis without advanced triggering or deep memory. Buyers who require more than 10K points of waveform capture or protocol decoding should consider other models.

Sustained Load Behaviour

Under continuous operation the simplified synchronization system relies on edge and video trigger types with auto, normal, and single modes. The 10K point record length limits how long a captured waveform can be held at higher time bases, so extended acquisitions at fast sweep speeds are not possible. DC gain accuracy is specified at 3 percent and vertical resolution remains at 8 bits across both channels. The 7-inch TFT display at 800 by 480 pixels provides a stable view during long sessions.

Installation and Common Issues

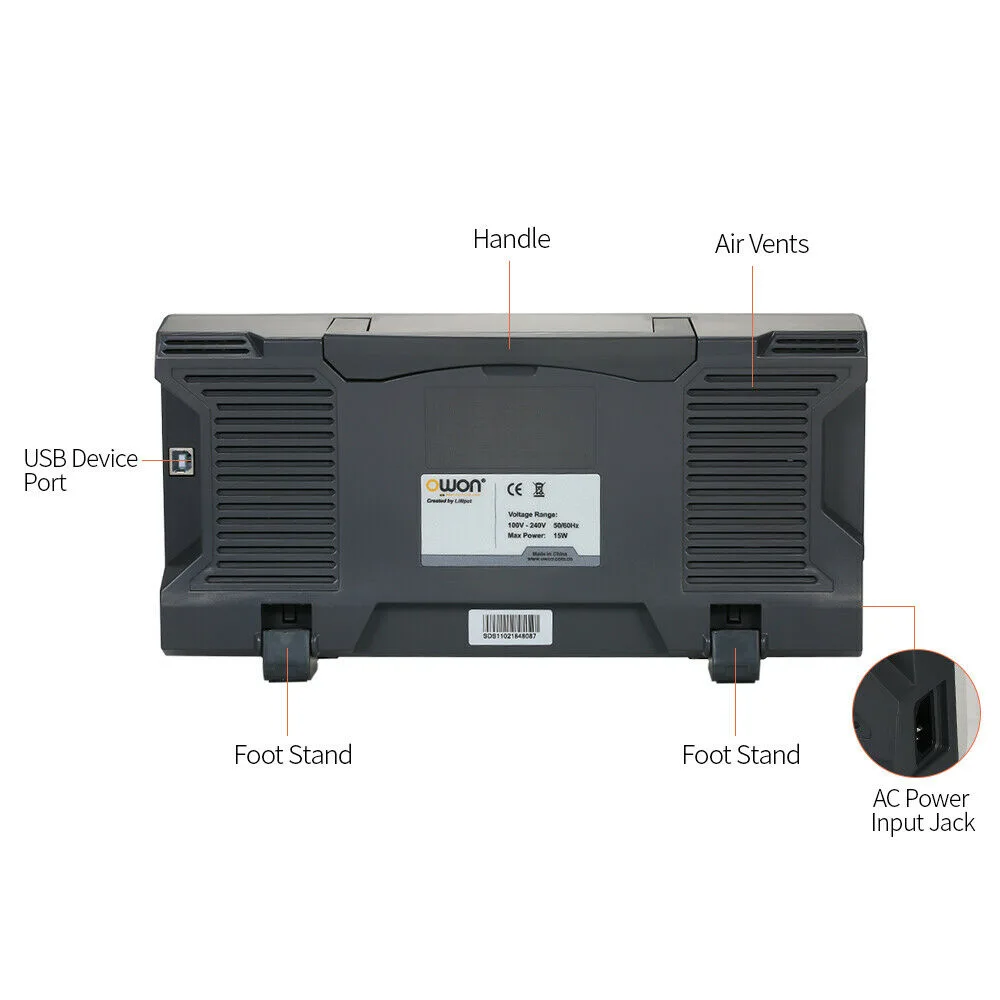

Front-sided USB and side-mounted power socket make bench connection straightforward in industrial environments. The package includes a power cord, USB cable, one probe with adjustment tool, CD ROM, and user guide. Passive probes support 1X and 10X attenuation with selectable factors up to 1000X. Maximum input voltage is rated at 400 V CAT I and CAT II. Users unfamiliar with the menu-driven UI may need time to locate the 30 automatic measurement functions.

Highlights

  • 100 MHz bandwidth and 1 GSa/s capture fast signals accurately
  • 2-channel input lets you compare two waveforms simultaneously
  • 7-inch 800 × 480 TFT display shows detailed waveform data
  • USB host port on the front panel enables quick data saving
  • 30 automatic measurements deliver instant voltage, time and frequency results

Specifications

BrandOWON
ModelSDS1102

Questions about this item

How much noise and heat does the SDS1102 produce during continuous bench use?

The unit uses passive cooling with no fan, so it runs silently and generates only modest warmth from the 100 MHz front end and 1 GSa/s ADC during long sessions.

Which probes and accessories are included so the SDS1102 works straight away?

The kit ships with one passive probe switchable between 1× and 10×, a probe-adjust tool, USB cable, power cord, CD-ROM and user guide — everything needed for immediate measurements.

Can the SDS1102 capture signals from legacy 5 V logic circuits without extra attenuation?

Yes, the vertical range spans 5 mV/div to 5 V/div and the inputs tolerate ±400 V (CAT I/II), so 5 V TTL or CMOS waveforms fit comfortably on screen.
