Handheld spectrum analyser in dark case with large touchscreen and front connectors

OWON Technology

OWON Technology HSA1036-TG Handheld Spectrum Analyser 3.6 GHz

SKU CH-9MTA-PBMWF MPN HSA1036-TG

Handheld spectrum analyser covering 9 kHz to 3.6 GHz with 1 Hz resolution, built-in tracking generator and EMI pre-compliance test function

  • 6 GHz range with 1 Hz resolution for precise measurements
  • EMI pre-compliance testing with 6 dB filter and peak detector
  • Built-in tracking generator enables component characterisation
  • Handheld form with full-touch screen for field use

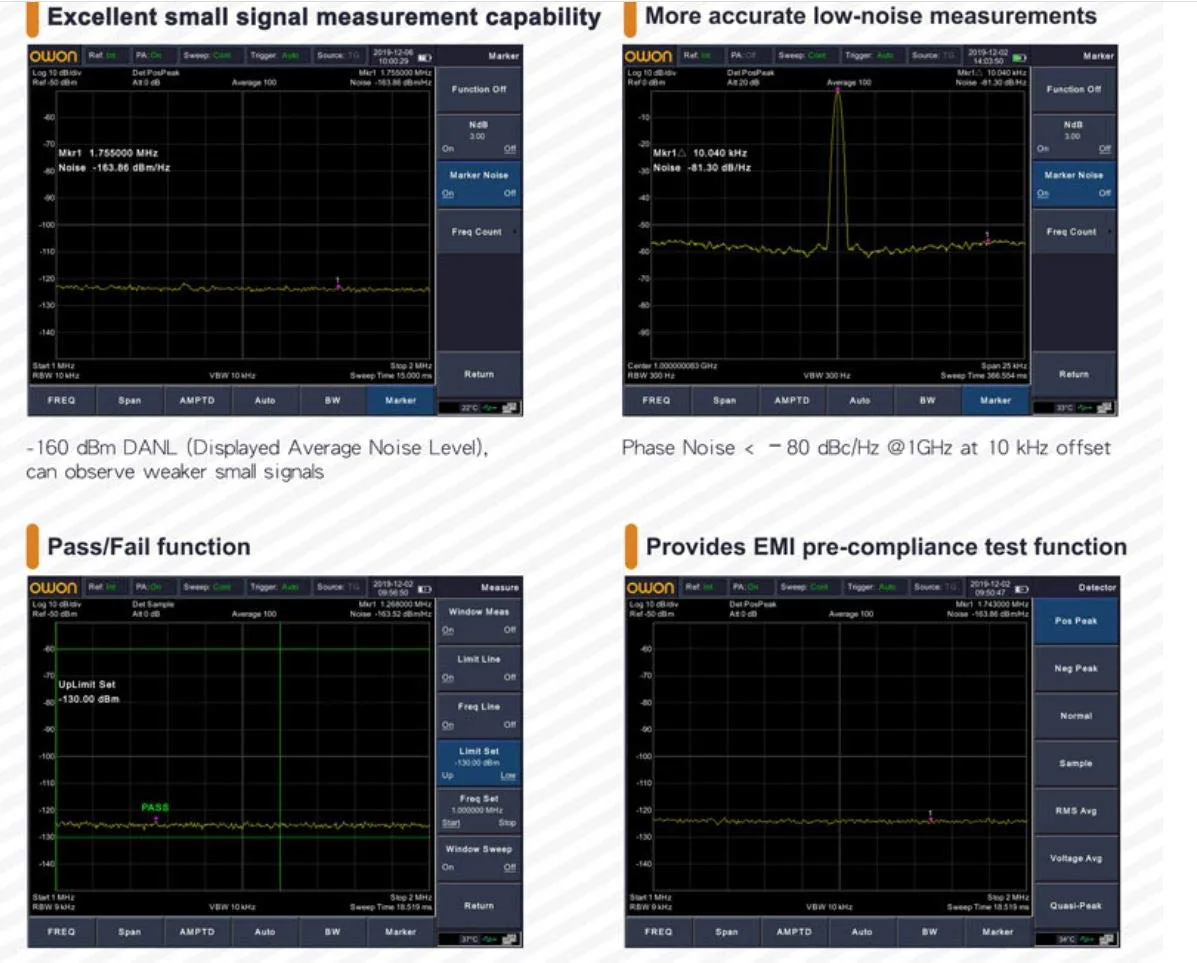

  • Pass/fail function speeds up production-line decisions

Handheld Spectrum Analyser 3.6 GHz

The OWON HSA1036-TG is a handheld spectrum analyser covering 9 kHz to 3.6 GHz with 1 Hz frequency resolution. It is designed for engineers and technicians who need portable RF signal analysis and EMI pre-compliance testing in the field or on the bench.

EMI Pre-Compliance and Tracking Generator

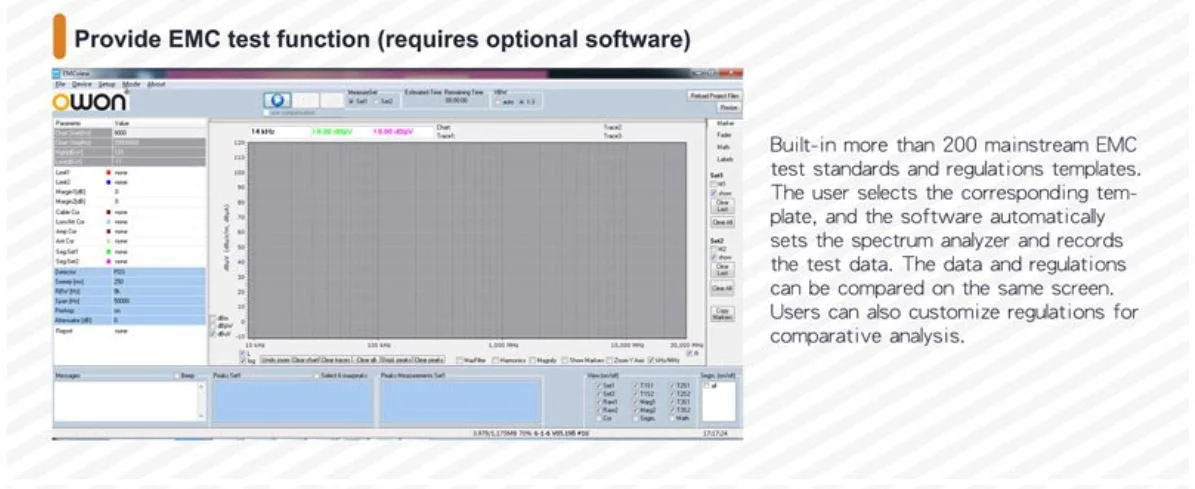

The built-in 3.6 GHz tracking generator and EMI pre-compliance function add conducted and radiated emissions testing capability. A 6 dB EMI filter and peak detector support more accurate pre-test diagnosis, while PC software enables complete test reports for regulatory verification.

Handheld Operation with Touch Screen

The large full-touch display and integrated light sensor simplify setup in varying ambient conditions. A pass/fail function speeds up limit testing, and the included metal case, adapter, and USB cable support immediate deployment without extra accessories.

Highlights

  • 6 GHz range with 1 Hz resolution for precise measurements
  • EMI pre-compliance testing with 6 dB filter and peak detector
  • Built-in tracking generator enables component characterisation
  • Handheld form with full-touch screen for field use
  • Pass/fail function speeds up production-line decisions

Specifications

BrandOWON
ModelHSA1036-TG

Questions about this item

What maintenance will the tracking generator need over time?

The tracking generator is a solid-state RF source with no user-serviceable parts, so routine maintenance is limited to keeping the RF connectors clean and checking calibration intervals recommended by the manufacturer.

What limit appears first during continuous EMI pre-compliance testing?

Extended EMI pre-compliance runs are typically limited by the instrument's internal temperature rise, which triggers thermal protection before any other parameter is reached.

How much heat and fan noise does the analyser produce when running all day?

The handheld chassis relies on passive cooling with a small internal fan; during all-day operation the case becomes warm to the touch and fan noise remains at a low office-background level.
