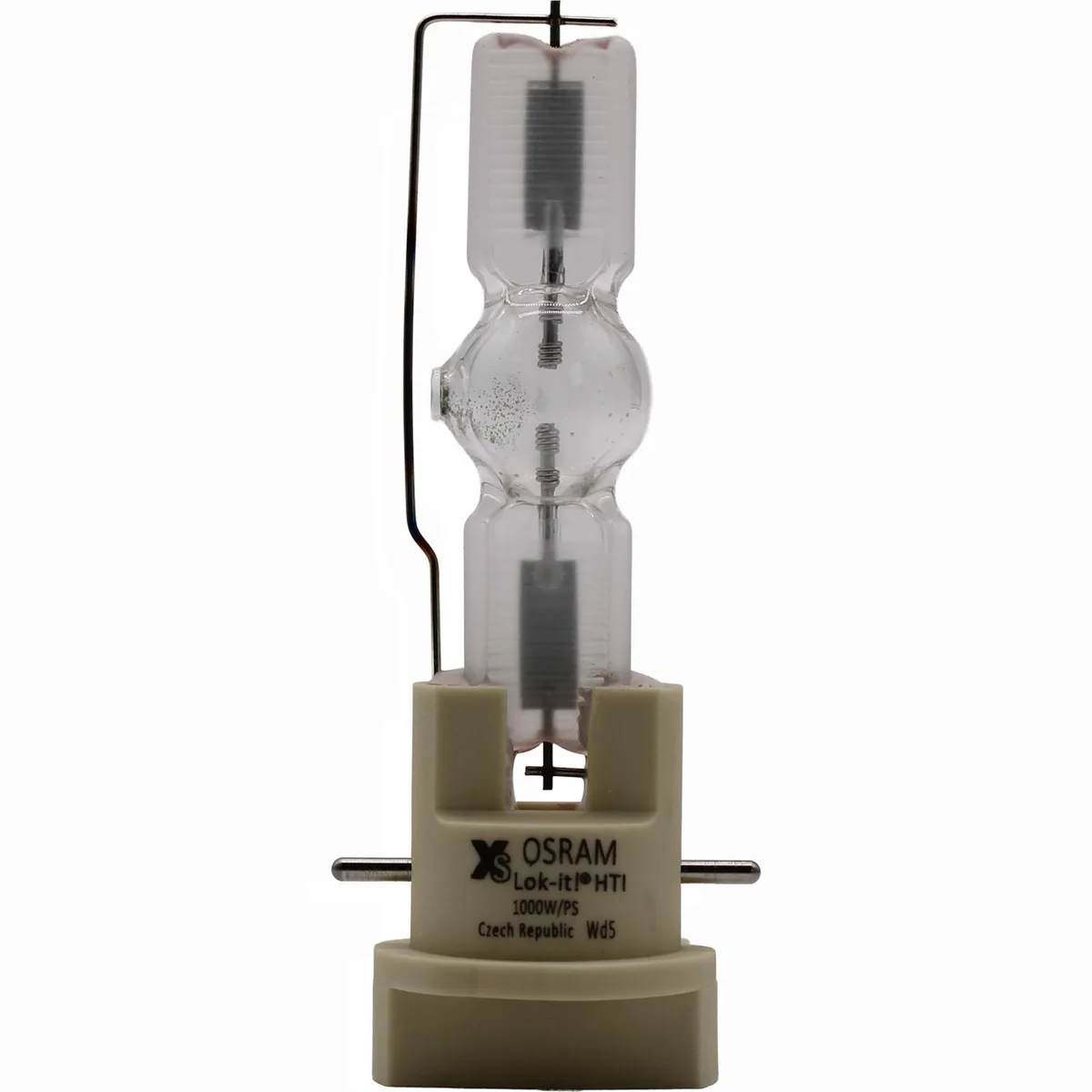

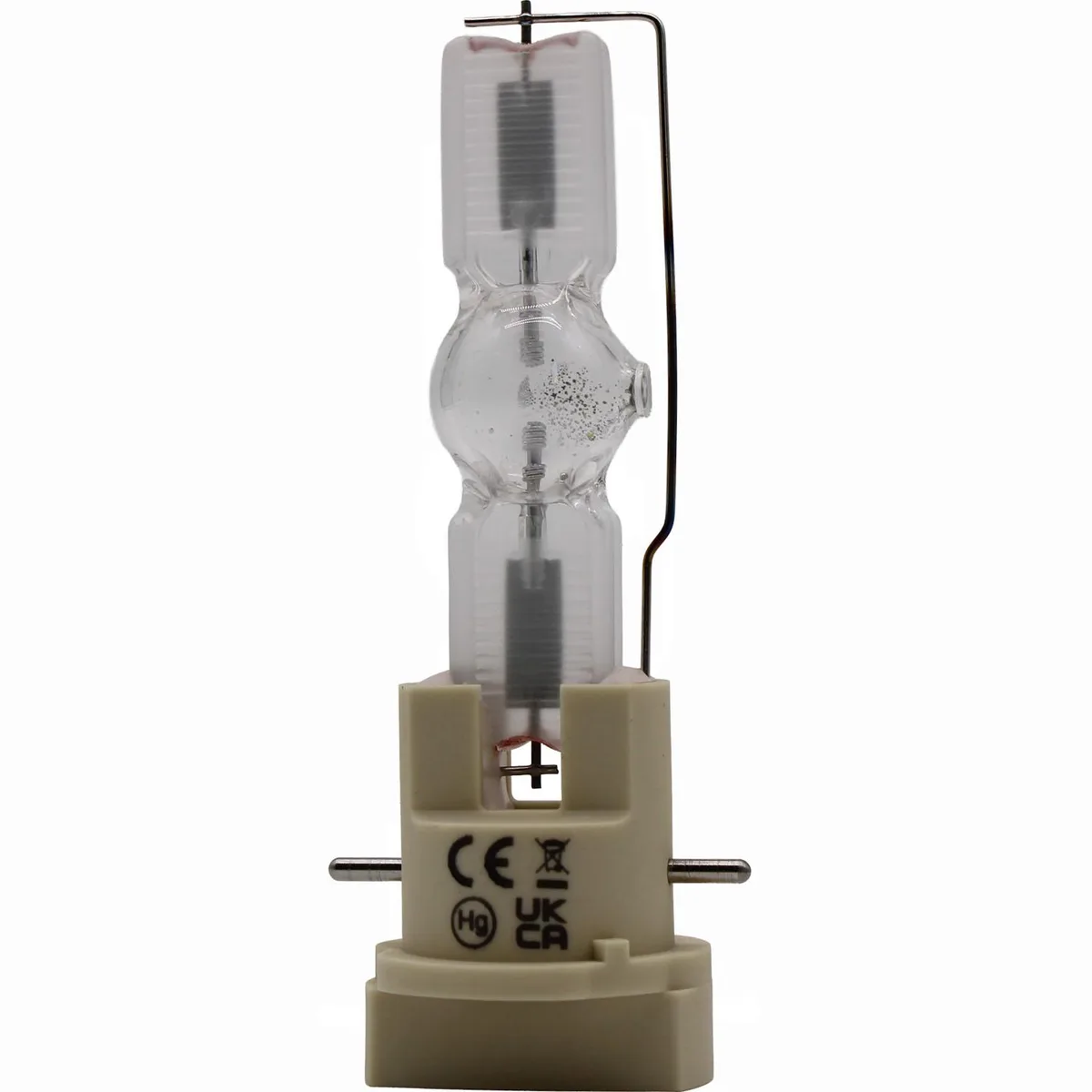

OSRAM MSR Gold 1000 MiniFastFit lamp with PGJX36 base, clear quartz envelope, compact cylindrical form

OSRAM

OSRAM MSR Gold 1000 MiniFastFit dlp replacement lamp

SKU CH-4B3B-V4J04

1000 W DLP projector lamp with PGJX36 base, 82000 lm output, 6000 K colour temperature and 900-hour rated life

  • TypeProject Lamp
  • Weight0.0990
  • High-output projection with 82000 lm nominal luminous flux
  • Accurate colour reproduction at 80 CRI and 6000 K
  • Universal operating position for flexible installation
  • Dimmable control allows adjustable brightness levels
  • Long service life rated at 900 hours to 50% failures

OSRAM MSR Gold 1000 MiniFastFit lamp

This 1000 W discharge lamp uses a PGJX36 base and MiniFastFit system for universal operating position. It is designed for entertainment lighting fixtures that require a compact, high-output source. The unit weighs 0.0990 kg and carries order code 78508800.

82000 lumen output with 900 hour rated life

Nominal luminous flux reaches 82000 lm at 6000 K correlated colour temperature with a CRI of 80. Minimum flux is 74000 lm. The lamp runs at 11.4 A lamp current and requires a minimum ignition supply voltage of 198 V. It is dimmable, allowing intensity control for different scenes.

PGJX36 base fits compatible MiniFastFit fixtures

The cap-base design allows installation in any orientation while maintaining pinch temperatures below 500 °C and bulb temperatures below 950 °C. Dimmable operation frees designers from fixed-intensity constraints. Buyers needing a different base type or a non-dimmable source should select an alternative lamp.

Highlights

  • High-output projection with 82000 lm nominal luminous flux
  • Accurate colour reproduction at 80 CRI and 6000 K
  • Universal operating position for flexible installation
  • Dimmable control allows adjustable brightness levels
  • Long service life rated at 900 hours to 50% failures

Specifications

BrandJaspertronics
ModelAcme XP-1000 WZ-LAMP
Part NumberAcme XP-1000 WZ-LAMP
TypeProject Lamp
Weight0.0990

Questions about this item

Will the PGJX36 base fit the same socket as my current MSR Gold lamp?

Yes — the PGJX36 cap-base is identical to the one on your existing MSR Gold unit, so it seats directly without an adapter.

How can I confirm the 6000 K colour temperature is stable after installation?

Power the projector, let it reach thermal equilibrium, then measure the output with a calibrated colorimeter; the chromaticity coordinates should read near x 0.321 and y 0.330.

Does the single 1 CT pack include the reflector or only the bare burner?

The order code 78508800 ships as one complete MiniFastFit module — burner, reflector and PGJX36 base assembled — so no extra parts are required.
