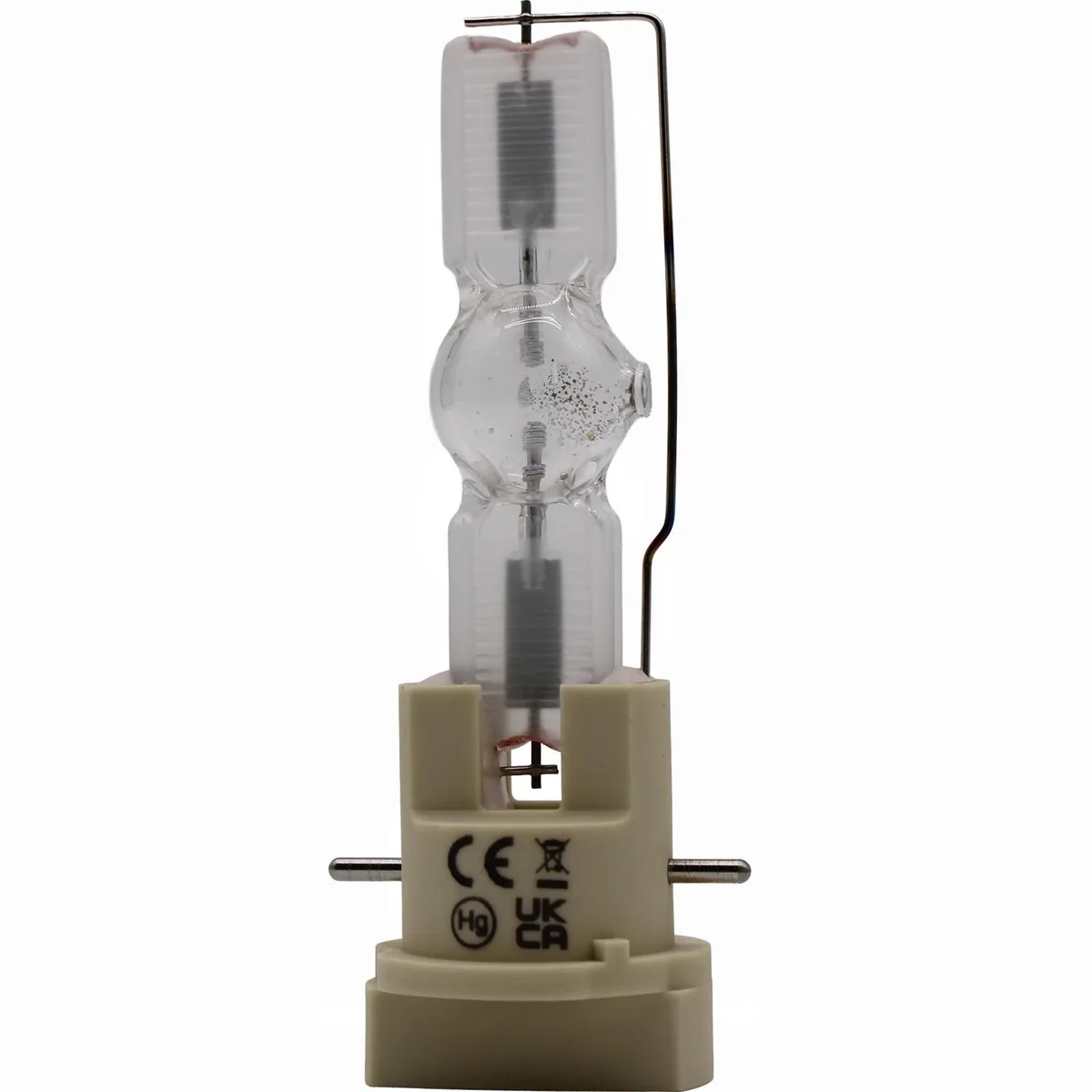

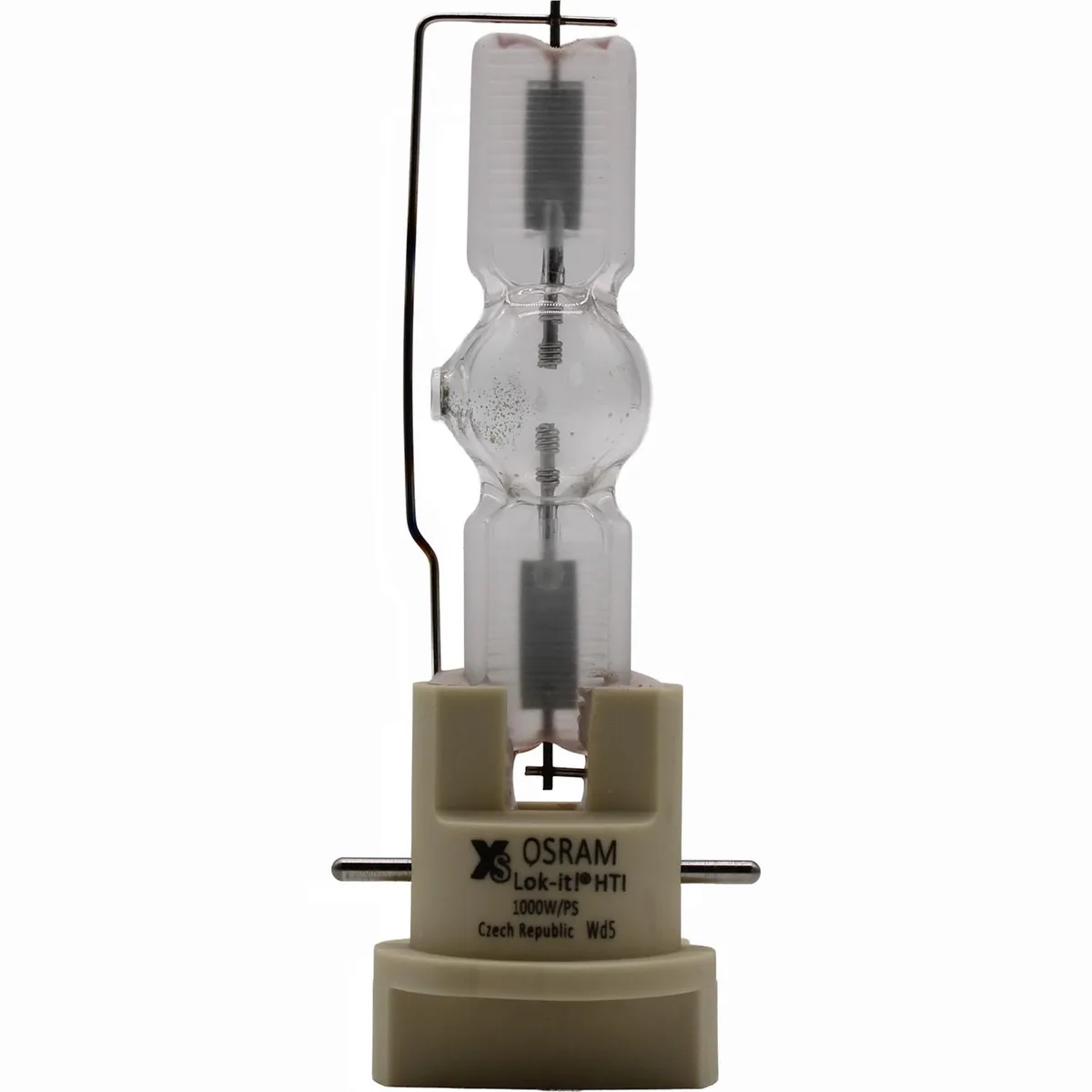

OSRAM LOK-IT 1000/PS lamp with PGJX36 base

OSRAM

OSRAM LOK-IT 1000/PS for Martin Professional MAC Viper AirFX dlp replacement lamp

SKU CH-RVFJ-2BY5A

1000 W MSR Gold MiniFastFit lamp with PGJX36 base, 82000 lm output, 6000 K colour temperature and 900 h rated life for Martin Professional MAC Viper AirFX fixtures

  • TypeProject Lamp
  • Weight0.0990
  • Brilliant color fidelity with 80 CRI and 6000 K output
  • High brightness delivering 82000 lm nominal luminous flux
  • Universal operating position for flexible fixture placement
  • Dimmable control enables precise intensity adjustment
  • 900 hour rated life to 50 % failures

Compatible Fixture

This lamp is built for the Martin Professional MAC Viper AirFX moving head. It uses the PGJX36 base and a universal operating position so it fits the fixture without modification. The MiniFastFit system allows quick replacement during show changeovers. Venues needing a different base or a non-universal burning position cannot use this unit.

Thermal and Electrical Profile

Rated power is 1000.0 W with a nominal lamp current of 11.4 A and a minimum ignition supply voltage of 198 V. Maximum bulb temperature reaches 950 °C while the pinch temperature limit is 500 °C. The dimmable design lets operators reduce output and heat when full intensity is not required. Installations without adequate cooling airflow or a compatible dimmer should not specify this lamp.

Light Quality Benefits

The Lok-it PS Brilliant fill delivers a nominal luminous flux of 82000 lm at a correlated color temperature of 6000 K. Chromaticity coordinates are 0.321 for X and 0.330 for Y with a color rendering index of 80. These values produce natural skin tones and vivid colors suited to theater and entertainment applications. Productions that demand a higher CRI or a different color temperature must choose an alternative source.

Highlights

  • Brilliant color fidelity with 80 CRI and 6000 K output
  • High brightness delivering 82000 lm nominal luminous flux
  • Universal operating position for flexible fixture placement
  • Dimmable control enables precise intensity adjustment
  • 900 hour rated life to 50 % failures

Specifications

BrandJaspertronics
ModelMartin Professional MAC Viper AirFX-LAMP
Part NumberMartin Professional MAC Viper AirFX-LAMP
TypeProject Lamp
Weight0.0990

Questions about this item

How do I install the PGJX36 base lamp in the Martin Professional MAC Viper AirFX, and what step is often missed?

Align the PGJX36 pins with the socket, press firmly until the MiniFastFit mechanism clicks, then verify the lamp seats flat; the step often missed is confirming the click, which ensures proper electrical contact.

When will the MSR Gold 1000 MiniFastFit lamp need replacement based on its rated life?

The lamp is rated for 900 hours to 50% failures; plan replacement near that point as output drops and color shifts toward the end of life.

What is the first thermal limit reached during sustained operation of this 1000 W lamp?

The bulb temperature maximum of 950 °C is typically reached before the 500 °C pinch limit, so airflow must keep the bulb at or below 950 °C.
