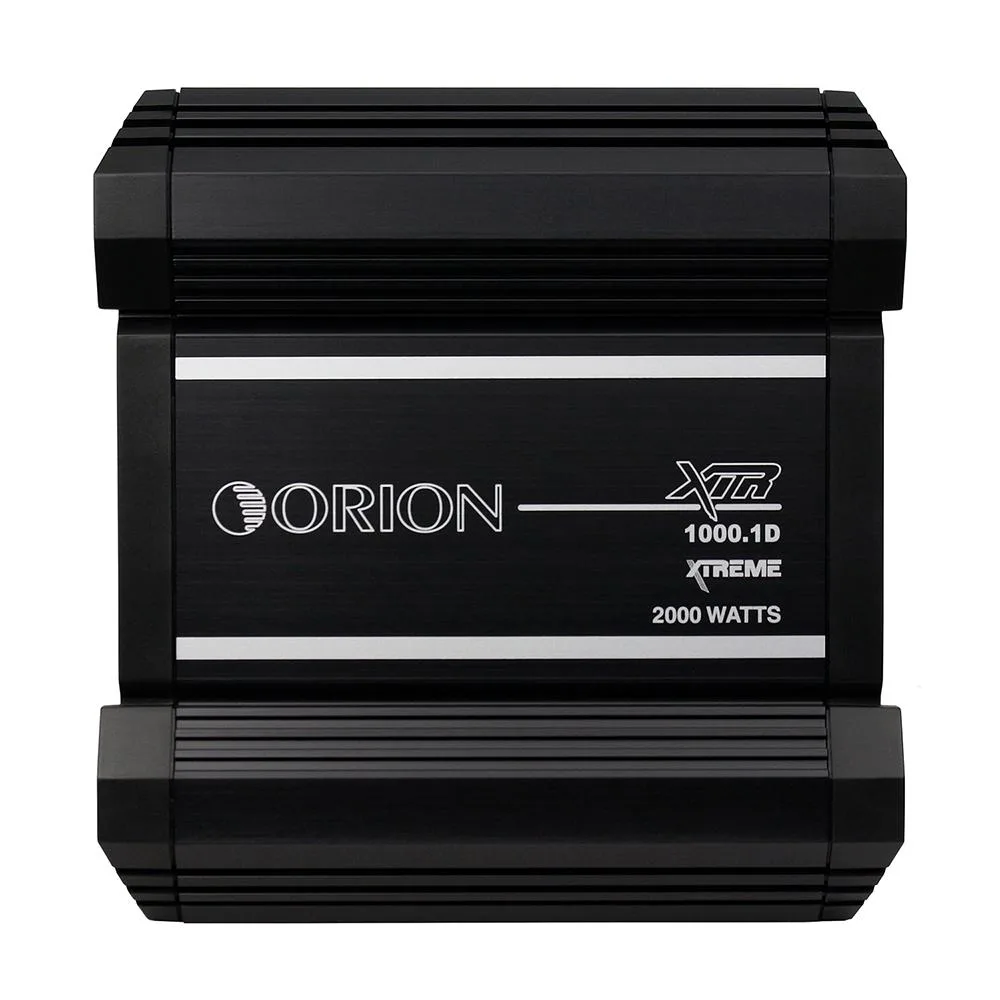

Black rectangular mono car amplifier with silver heatsink fins and Orion XTR branding

Orion

Orion XTR1000.1D 1000W mono car amplifier

SKU CH-EKWD-VB0GR MPN XTR1000.1D

Mono Class D amplifier delivers 1080 W RMS at 1 ohm with adjustable low-pass crossover and remote gain control

  • Amplifier ChannelsMono
  • TypeAmplifiers
  • FeaturesMono Channel
  • Peak Power1000W
  • Max Power1000W
  • Delivers 1080 watts RMS into a 1 ohm load
  • Class D efficiency keeps heat low in tight spaces
  • Adjustable 30 to 300 Hz low-pass filter tailors bass response
  • >90 dB signal-to-noise ratio ensures clean low-frequency output
  • Phase control from 0 to 180 degrees aligns subwoofer timing

Monoblock Class D amplifier

The Orion XTR1000.1D is a mono Class D car amplifier rated for 1000W peak power. It delivers 1080 watts RMS at 1 ohm, 790 watts at 2 ohms and 510 watts at 4 ohms, all measured at .5 percent THD+N. The frequency response spans 15Hz to 250Hz with a signal-to-noise ratio exceeding 90dB.

Suits subwoofer systems needing 1-ohm stability

This amplifier suits installations that require a single high-power channel stable down to 1 ohm. Builders who need multiple channels or full-range frequency response should look at something else.

1-ohm RMS power rating decides fit

The 1080-watt RMS figure at 1 ohm is the specification that determines whether this amp matches the subwoofer load and output target. Verify the subwoofer impedance and power handling against this number before purchase.

Highlights

  • Delivers 1080 watts RMS into a 1 ohm load
  • Class D efficiency keeps heat low in tight spaces
  • Adjustable 30 to 300 Hz low-pass filter tailors bass response
  • >90 dB signal-to-noise ratio ensures clean low-frequency output
  • Phase control from 0 to 180 degrees aligns subwoofer timing

Specifications

BrandOrion
ModelXTR1000.1D
Amplifier ChannelsMono
Part NumberXTR1000.1D
TypeAmplifiers
FeaturesMono Channel
Peak Power1000W
Max Power1000W

Questions about this item

What head-unit outputs or line-level converter do I need to feed the XTR1000.1D?

The amplifier accepts low-level RCA inputs, so a head unit with pre-amp outputs or a speaker-level to RCA converter is required to provide the signal.

Will the amp’s 15 Hz – 250 Hz frequency response and 12 dB low-pass filter integrate with my existing mid-bass drivers?

The built-in low-pass crossover adjusts from 30 Hz to 300 Hz at 12 dB per octave, letting you match the subwoofer roll-off to your mid-bass range for a smooth handover.

How can I confirm the XTR1000.1D is operating correctly after installation?

The front panel shows a blue power LED when the amp is on and a red protection LED if a fault occurs; with a healthy system only the blue light stays lit.
