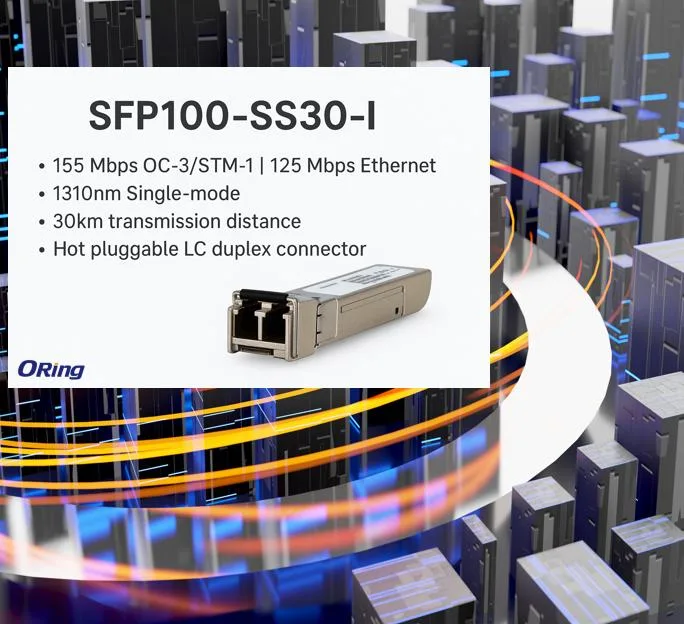

Small silver SFP transceiver module with bail latch and LC port

ORing

ORing SFP100-SS30-I 100Mbps SFP Transceiver Single-mode 30km 1310nm

SKU CH-ANS1-W7Z4Y

A single-mode SFP transceiver delivering 100 Mbps Fast Ethernet over 30 km at 1310 nm with industrial -40 to 85 °C operation

  • Device TypeSFP (mini-GBIC)
  • WavelengthTｘ1310 nm,Ｒｘ1260 to 1600 nm
  • Max Distance30Km
  • Temperature-40 to 85 ℃ (-40 to 185 ℉)
  • Dimensions2.75 (W) x 0.59(D) x 0.39 (H) inch
  • Transmit up to 30 km over single-mode fibre at 1310 nm
  • Operate reliably from -40 °C to 85 °C in harsh environments
  • Draw only 3.3 V power for energy-efficient integration
  • Achieve 155 Mbps SONET OC-3 or 125 Mbps Fast Ethernet speeds
  • Fit standard SFP slots with 2.75 x 0.59 x 0.39 inch form factor

100 Mbps SFP Single-Mode 30 km

The ORing SFP100-SS30-I is a small form-factor pluggable transceiver designed for Fast Ethernet links over single-mode fibre. It operates at a 1310 nm transmit wavelength and covers distances up to 30 km. The module runs on a 3.3 V supply and complies with standard SFP dimensions.

Industrial networks needing long reach

This transceiver suits industrial and carrier deployments that require extended range at 100 Mbps over single-mode fibre. It is not suited for networks that need gigabit or multi-gigabit throughput, nor for links that must run over multi-mode cabling or shorter-reach single-mode optics.

30 km maximum distance

The 30 km reach is the decisive parameter when planning the link budget. Verify that the available optical power and receiver sensitivity match the span loss before selecting this module.

Highlights

  • Transmit up to 30 km over single-mode fibre at 1310 nm
  • Operate reliably from -40 °C to 85 °C in harsh environments
  • Draw only 3.3 V power for energy-efficient integration
  • Achieve 155 Mbps SONET OC-3 or 125 Mbps Fast Ethernet speeds
  • Fit standard SFP slots with 2.75 x 0.59 x 0.39 inch form factor

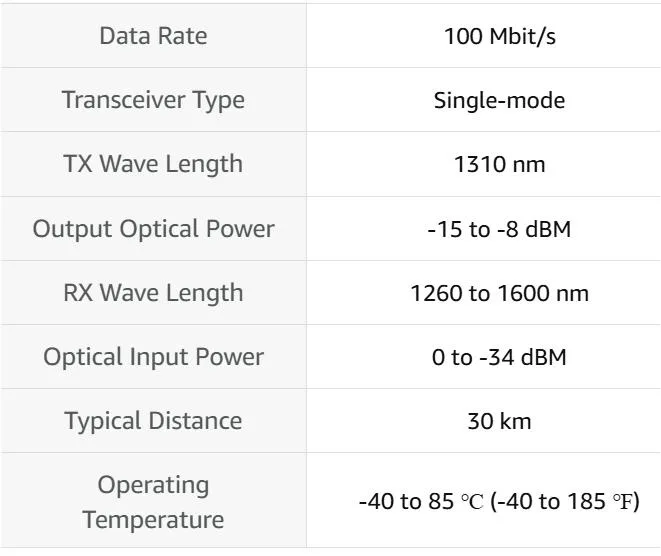

Specifications

Device TypeSFP (mini-GBIC)
WavelengthTｘ1310 nm,Ｒｘ1260 to 1600 nm
Max Distance30Km
Temperature-40 to 85 ℃ (-40 to 185 ℉)
Dimensions2.75 (W) x 0.59(D) x 0.39 (H) inch

Questions about this item

How do I install the SFP100-SS30-I into a switch, and what step is often missed?

Slide the transceiver into an SFP slot until the latch clicks, then insert the LC single-mode patch cable; the step often missed is removing the dust caps from both the module and the cable before connecting.

What maintenance or replacement will the SFP100-SS30-I need over time?

The module itself has no user-serviceable parts; plan to clean the LC connector end-faces with a fibre scope and replace patch cables if insertion loss rises above the -34 dBm receiver sensitivity budget.

What limit appears first when the SFP100-SS30-I runs continuously at high load?

The industrial temperature rating of -40 to 85 °C is the primary bound; sustained operation near 85 °C can accelerate laser ageing and reduce the 30 km reach before any electrical limit is hit.
