Orico
Orico CDH-10H 10Gbps docking station
A 10Gbps USB-C docking station with HDMI 4K@30Hz output, three 10Gbps USB-A ports, Gigabit Ethernet, audio, SD/TF card reader, 100W PD pass-through charging and an internal M.2 NVMe SSD slot
- ColorSilver
- 10 Gbps data speed across four USB ports
- 4K 30 Hz video output through HDMI
- Gigabit Ethernet port for wired networking
- 100 W pass-through charging via USB-C
- Built-in M.2 slot with NVMe support
10 Gbps USB-C docking station with M.2 slot

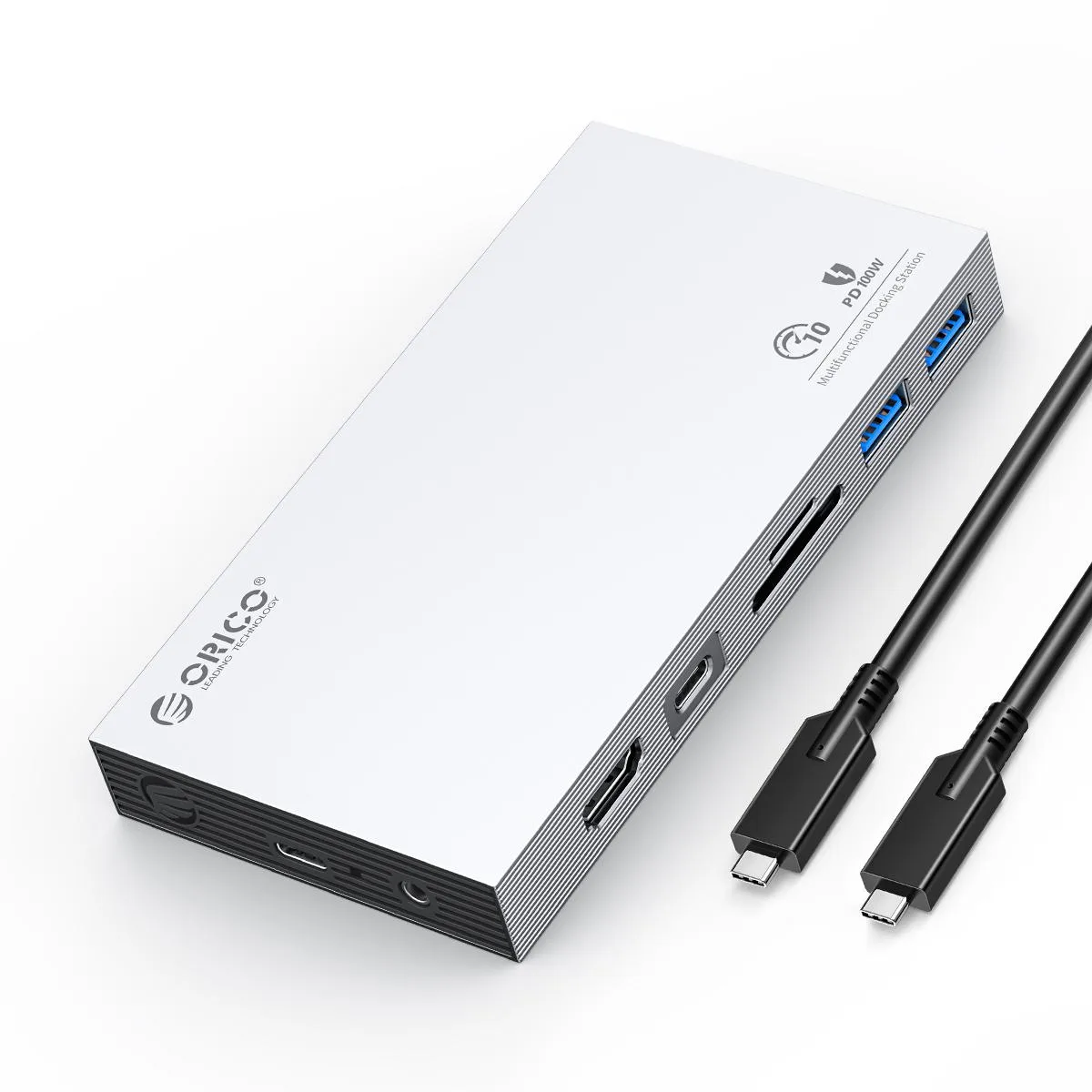

The Orico CDH-10H combines a 10 Gbps USB-C hub, HDMI video output, gigabit Ethernet, audio jacks, an SD/TF card reader and an internal M.2 drive bay in a silver aluminium-and-ABS chassis. It targets laptop users who need legacy ports, wired networking and local storage expansion through a single Type-C connection. Three downstream USB-A ports and one USB-C port all operate at 10 Gbps for fast peripheral throughput.
Replaces separate hub, card reader and SSD enclosure
Buyers carrying a discrete USB hub, a card reader and an external SSD enclosure can consolidate them into this one device, saving desk space and cable clutter. The upgrade is worthwhile when the host laptop supplies DisplayPort Alt Mode and USB 3.1 or 3.2 signalling, because the dock relies on those host capabilities for video and 10 Gbps data. Without DP-Alt Mode the HDMI port stays inactive.
Limited to 4K at 30 Hz and host-dependent power
HDMI output tops out at 4K 30 Hz, so high-refresh-rate monitors will run at reduced frame rates. The single upstream Type-C port must deliver both 10 Gbps bandwidth and up to 100 W Power Delivery pass-through; if the host port cannot supply enough current, connected devices may throttle or disconnect. The M.2 slot accepts NVMe drives only, and the dock provides no active cooling for sustained heavy I/O.
Highlights
- 10 Gbps data speed across four USB ports
- 4K 30 Hz video output through HDMI
- Gigabit Ethernet port for wired networking
- 100 W pass-through charging via USB-C
- Built-in M.2 slot with NVMe support
Specifications
| Color | Silver |
|---|
Questions about this item
What are the exact dimensions of the Orico CDH-10H docking station?
The unit measures 138.5 mm long, 72 mm wide and 17 mm high, built from aluminium alloy with an anodic oxidation finish.
How do I enable the HDMI video output on this dock?
Connect the dock to a USB-C port that supports DisplayPort Alt Mode; the HDMI port will then deliver up to 4K at 30 Hz without any driver installation.

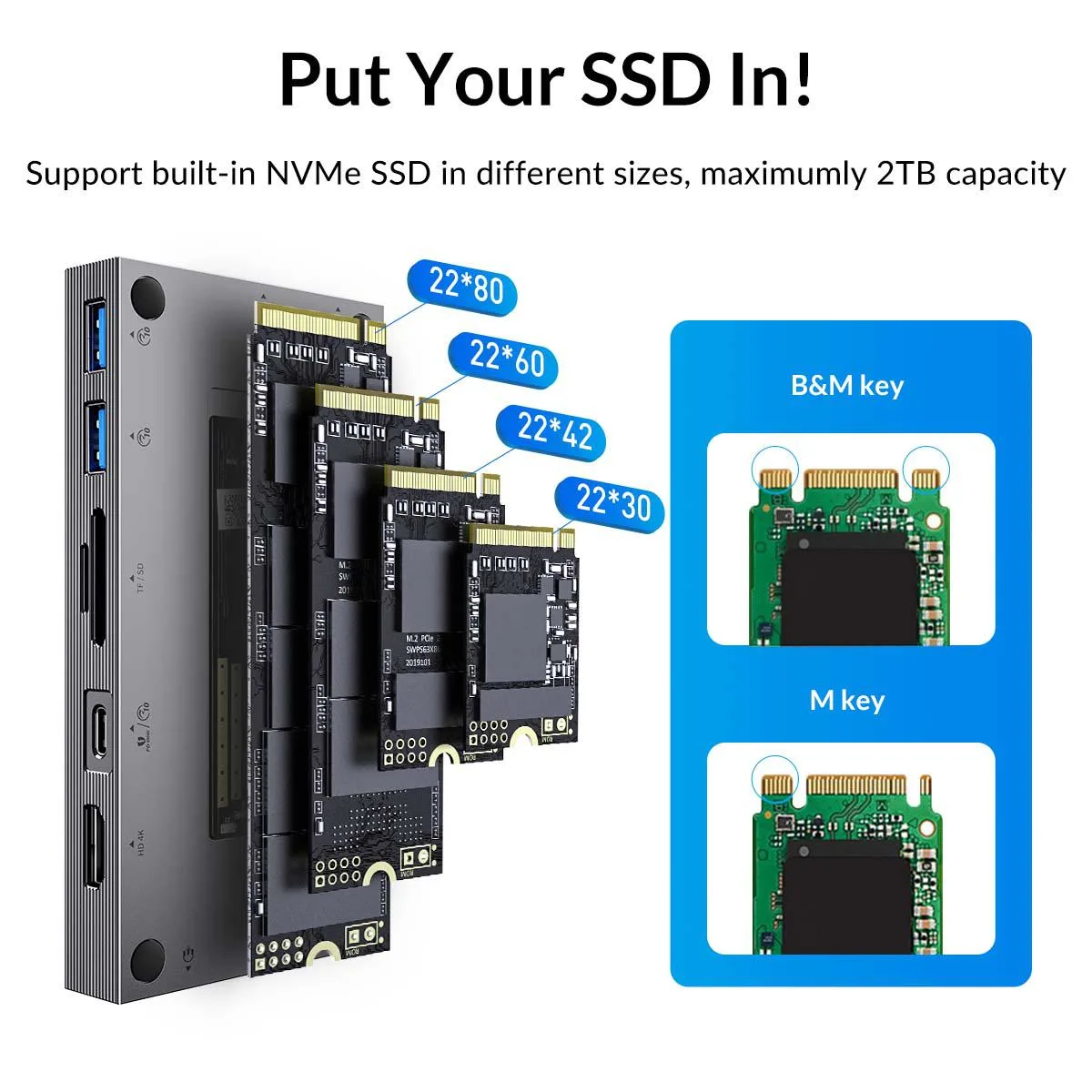

Which M.2 SSD form factors fit the internal slot?
The built-in M.2 slot accepts NVMe drives; insert the module at an angle, secure it with the supplied screw, and the dock will expose it as a 10 Gbps USB storage device.
