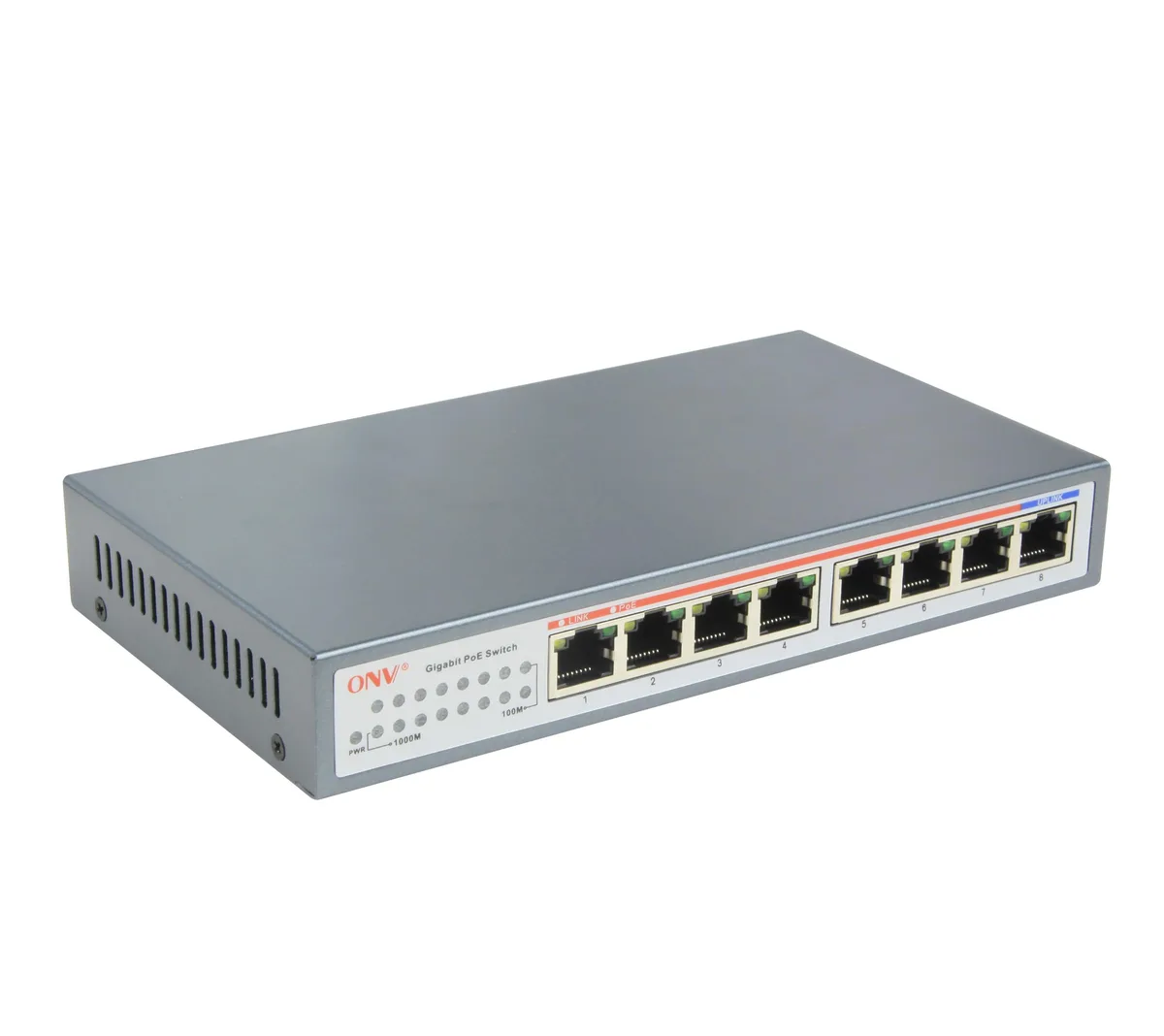

Compact metal network switch with eight RJ45 ports and status LEDs

Optical Network Video Technologies

Optical Network Video Technologies ONV-POE33007P 8-Port Gigabit PoE Switch 7x PoE 30W

SKU CH-VA0F-VG6NH MPN ONV-POE33007P

Eight-port Gigabit switch delivers 16 Gbps non-blocking throughput with seven PoE ports at 30 W each and one uplink port

  • Package Contents1
  • VersionNew
  • Primary Port8 Port
  • Powers seven devices up to 30 W each via IEEE 802.3af/at
  • One Gigabit uplink keeps the backbone at full line speed
  • 16 Gbps non-blocking fabric handles every port simultaneously
  • Fan-less design runs silently from -20 °C to 55 °C
  • Compact 189 × 102 × 28 mm metal case fits tight spaces

8-Port Gigabit PoE Switch

The ONV-POE33007P delivers eight Gigabit RJ45 ports, seven of which supply up to 30 W each under IEEE 802.3af/at. It targets installers deploying IP cameras, wireless access points or VoIP phones that require both data and power over a single Cat.5 or better cable run.

7 PoE ports plus dedicated uplink

Seven powered ports connect endpoint devices while the eighth port serves as a 10/100/1000M uplink to the core network. All ports support MDI/MDIX auto-negotiation, removing the need for crossover cables. The unit draws DC 52 V at 2.15 A from its external adapter, so no internal mains supply occupies rack space.

16 Gbps non-blocking fabric under load

A 16 Gbps switching fabric and 2 MB buffer sustain line-rate forwarding across all ports simultaneously. Store-and-forward architecture ensures error-free frames during extended traffic bursts. The switch operates continuously from -20 °C to 55 °C with a rated MTBF of 100,000 hours, maintaining PoE delivery without thermal throttling.

Highlights

  • Powers seven devices up to 30 W each via IEEE 802.3af/at
  • One Gigabit uplink keeps the backbone at full line speed
  • 16 Gbps non-blocking fabric handles every port simultaneously
  • Fan-less design runs silently from -20 °C to 55 °C
  • Compact 189 × 102 × 28 mm metal case fits tight spaces

Specifications

BrandOptical Network Video Technologies
ModelONV-POE33007P
Package Contents1
VersionNew
Primary Port8 Port

Questions about this item

What is the maximum combined PoE output the 52 V 2.15 A external adapter can sustain across all seven PoE ports?

The external adapter supplies 52 V at 2.15 A, and each of the seven PoE ports can deliver up to 30 W under IEEE 802.3af/at.

How much heat does the switch generate when all seven PoE ports are loaded continuously in a 55 °C ambient?

The unit has no internal fan and relies on its metal case for passive cooling while operating from -20 °C to 55 °C.

Which cables and power source must I already have to install this switch and power seven PoE devices?

You need Cat.5 or better UTP cables up to 100 metres per port and a mains socket for the included 52 V 2.15 A DC adapter.
