ONEBOOM

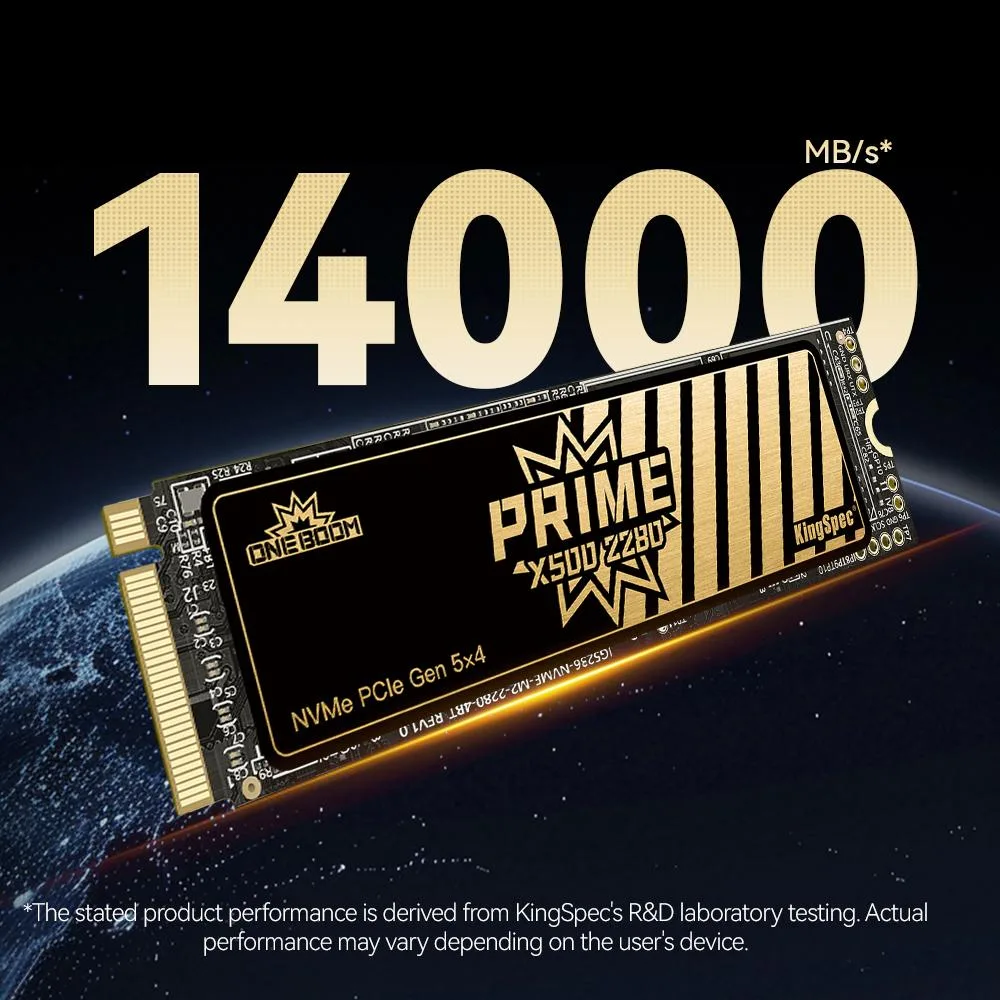

ONEBOOM X500 4TB PCIe 5.0 internal SSD
4TB PCIe 5.0 x4 NVMe SSD with 14000 MB/s sequential read, 13000 MB/s write and 2400 TBW endurance
- Device TypeInternal Solid State Drive (SSD)
- Used ForConsumer
- Form FactorM.2 2280
- Capacity4TB
- Memory Components3D TLC
- InterfacePCI-Express 5.0 x4
- Sequential reads up to 14000 MB/s slash load times
- Sequential writes up to 13000 MB/s accelerate heavy file saves
- 4TB capacity stores large projects and game libraries
- 2400 TBW endurance rating supports intensive daily workloads
- 6 W idle draw keeps system power low
4TB PCIe 5.0 NVMe SSD
The ONEBOOM X500 4TB is an M.2 2280 internal solid-state drive that uses a PCIe 5.0 x4 interface and the NVMe 2.0 protocol. It delivers sequential reads up to 14000 MBps and writes up to 13000 MBps with a 4GB DRAM cache.
Ideal for AI, gaming and heavy workstations
This drive suits professionals and enthusiasts who need high bandwidth for large datasets, real-time rendering or fast game loading. Users with older motherboards limited to PCIe 4.0 or 3.0 will not reach the advertised speeds and should consider a Gen4 alternative.
No heatsink included, plan your cooling
The X500 ships without a heatsink, so sustained peak throughput depends on motherboard-integrated cooling or an aftermarket solution. The 2400 TBW endurance rating and 1.6 W idle power reflect the 3D TLC NAND and DRAM cache configuration.
Highlights
- Sequential reads up to 14000 MB/s slash load times
- Sequential writes up to 13000 MB/s accelerate heavy file saves
- 4TB capacity stores large projects and game libraries
- 2400 TBW endurance rating supports intensive daily workloads
- 6 W idle draw keeps system power low
Specifications
| Brand | ONEBOOM |
|---|---|
| Series | X500 Series |
| Model | X500 2280 |
| Part Number | X500-4TB 2280 |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
| Capacity | 4TB |
| Memory Components | 3D TLC |
| Interface | PCI-Express 5.0 x4 |
| Protocol | NVMe 2.0 |
| Cache | 4GB DRAM |
| Max Sequential Read | Up to 14000 MBps |
| Max Sequential Write | Up to 13000 MBps |
| 4KB Random Read | Up to 2043,000 IOPS |
| 4KB Random Write | Up to 1963,000 IOPS |
| Terabytes Written (TBW) | 2400TB |
| MTBF | 1,000,000 hours |
| HeatSink | without HeatSink |
| Power Consumption (Idle) | 1.6W |
| Power Consumption (Active) | 11.5W |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -20°C ~ +75°C |
| Operating Humidity | 5-95% |
| Height | 80.0mm |
| Width | 22.0mm |
| Depth | 3.58mm |
| Weight | 50g |
Questions about this item
Does this drive include a heatsink or will I need to add one?
The X500 4TB ships without a heatsink; your motherboard’s M.2 shield or an aftermarket sink is recommended for sustained Gen5 speeds.
What motherboard slot and firmware do I need for full performance?
A PCIe 5.0 x4 M.2 2280 slot and NVMe 2.0 support are required to reach the rated 14000 MB/s read and 13000 MB/s write.
How much power does the drive draw at idle and what endurance rating does it carry?
Idle power is 1.6 W and the drive is rated for 2400 TBW with a 1000000-hour MTBF.
